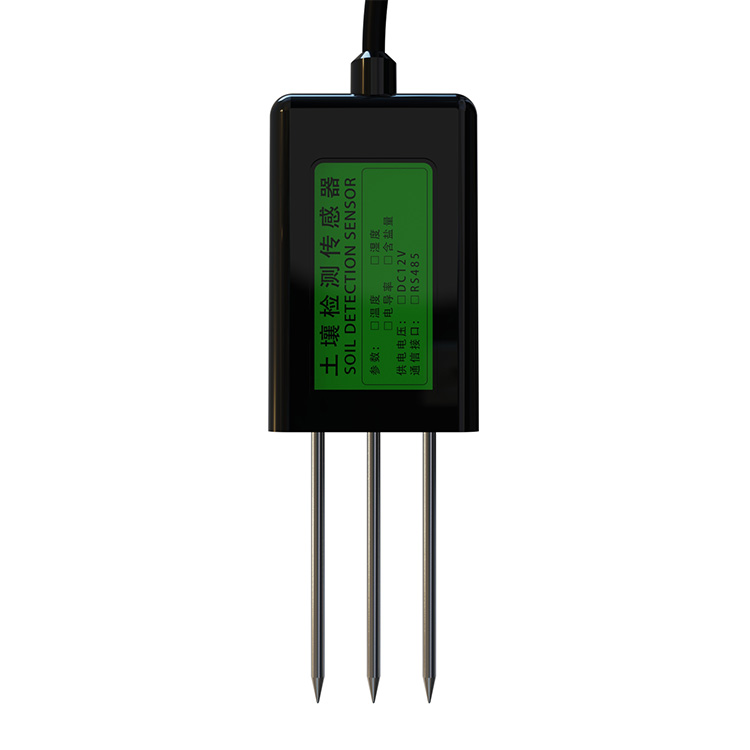

Soil moisture temperature sensor
Model:WS485
Brand:fengtu
Related products
Product details
1.Soil moisture temperature sensor technical indicators
Soil moisture temperature sensor can measure the volume moisture content of soil, soil temperature and other parameters at the same time, widely used in agricultural production field.
1.Power supply: DC12V
2.Power consumption: less than 0.1W
3.Working temperature: -30~70℃
4.Communication interface: RS485
5.Working current: 8mA DC12V
6.Minimum data interval: 60S

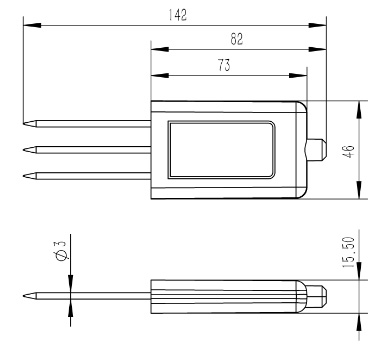

2.Soil moisture temperature sensor product size chart
3.Precautions for using Soil moisture temperature sensor
1.Sensor installation should be carried out strictly in accordance with the installation and operating instructions.
2.When multiple sensors work at the same time, they must be separated by a distance of more than 5 meters.
3.The sensor measurement principle is limited.There should be no interference from electromagnetic cables and strong magnetic radiation within a 5-meter radius of the sensor measurement location.
Avoid huge errors and damage to sensor measurements.
4.The installation environment of the sensor should comply with the measurement range of the sensor to avoid irregularities such as over-range.
5.The sensor should be installed away from strong acid, alkali, heavy oil and heavy metal environments.
6.The sensor is a soil measurement sensor.It is prohibited to use this sensor for other purposes.
7.The sensor installation environment must not have strong vibration.
8.The sensor cannot be subject to excessive external force.
9.Disassembly is prohibited, and no service will be provided if you disassemble it without permission.
10.The sensor probe is relatively sharp, so you should wear protective gear according to regulations when using it.
11.The equipment should be used and maintained in strict accordance with the above precautions.If there is any violation of regulations, our company will not be responsible for it.
4.Soil moisture temperature sensor sensor parameters
parameter | Measuring range | Accuracy | resolution | unit |
soil temperature | -30~70℃ | ±0.3 (-10~50℃) | 0.01 | ℃ |
soil moisture content | 0~100% | ±3% (loam) High organic matter soils (soil organic carbon content >12%) High clay content soils (clay content >45%) May require calibration for specific soil types due to their dielectric relaxation properties | 0.01% | --- |
