Based on the principle of dielectric constant, Soil Moisture Monitoring can simultaneously measure moisture, temperature, and conductivity of soil profiles at three different depths. This tubular sensor is specifically designed for obtaining accurate and comprehensive soil moisture data at different depths.
Soil Moisture Monitoring is a sensor device specifically designed for simultaneously acquiring key physical parameters of different layers of a soil profile. The core function of this instrument is to continuously monitor changes in soil moisture content, soil temperature, and soil conductivity at specified points in the vertical direction. It primarily serves fields such as agricultural irrigation guidance, ecological environment research, hydrogeological surveys, and precision agriculture management.
The design of this monitoring instrument is based on the principle of dielectric constant for electromagnetic wave propagation in a medium. The sensor emits an electromagnetic signal of a specific frequency, which propagates and reflects in the soil medium. The moisture content in the soil significantly affects the overall dielectric constant of the soil. By measuring the propagation time, frequency, or phase change of the electromagnetic signal, the device can calculate the volumetric water content of the soil. This method enables non-destructive, rapid, and continuous measurement. Simultaneously, a high-precision temperature sensing element integrated on the sensor probe directly measures the soil temperature. Some models indirectly reflect soil salinity or nutrient status by measuring soil electrical conductivity, i.e., soil electrical conductivity.

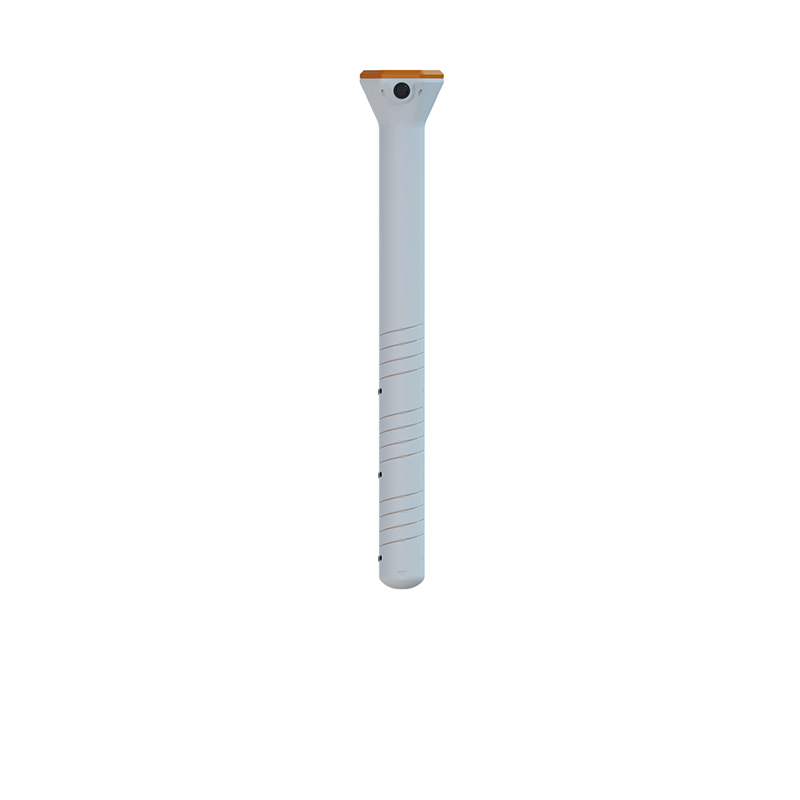

Its most significant structural feature is its tubular design, enabling simultaneous monitoring of three layers. The instrument body is a robust tubular probe made of engineering plastic or PVC, the length of which is determined by monitoring requirements. Three independent sensing units are integrated at specific vertical positions on the probe, each corresponding to a measurement layer. Users can vertically insert the probe into pre-drilled soil holes, placing the three sensing units at three predetermined target depths, such as 20 cm, 40 cm, and 60 cm below the surface. This design allows for continuous and synchronous acquisition of profile data from three different soil layers after a single installation, eliminating the need for multiple independent sensors and avoiding spatial heterogeneity interference from multi-point monitoring, resulting in more comparative and representative data.
In practical applications, this monitor provides a crucial tool for soil moisture dynamics research and management. In farmland, by simultaneously understanding soil moisture in the surface, root zone, and deeper layers, managers can more scientifically determine irrigation timing and volume, achieving water conservation and increased efficiency. In forestry or ecological monitoring stations, it helps researchers analyze precipitation infiltration, soil evaporation, and deep water migration patterns. In saline-alkali land improvement or greenhouse cultivation, combining soil temperature and conductivity data allows for the assessment of the comprehensive impact of the soil environment on crop growth.
Monitoring data is transmitted to a data acquisition unit or remote monitoring center via cable or wireless transmission. Users can view real-time time-series curves of soil moisture, temperature, and conductivity for each layer through the accompanying software platform, and perform data download and in-depth analysis. The system typically supports setting alarm thresholds; when the soil moisture content in a certain layer falls below a preset standard or the temperature is abnormal, an early warning message can be automatically triggered.
In summary, Soil Moisture Monitoring, through its integrated tubular design and three-layer simultaneous measurement capability, achieves efficient, accurate, and comprehensive collection of soil profile moisture information. It overcomes the limitations of traditional single-point or single-layer measurements, providing a reliable technical means for multi-dimensional understanding of the vertical distribution and dynamic changes of soil moisture.
