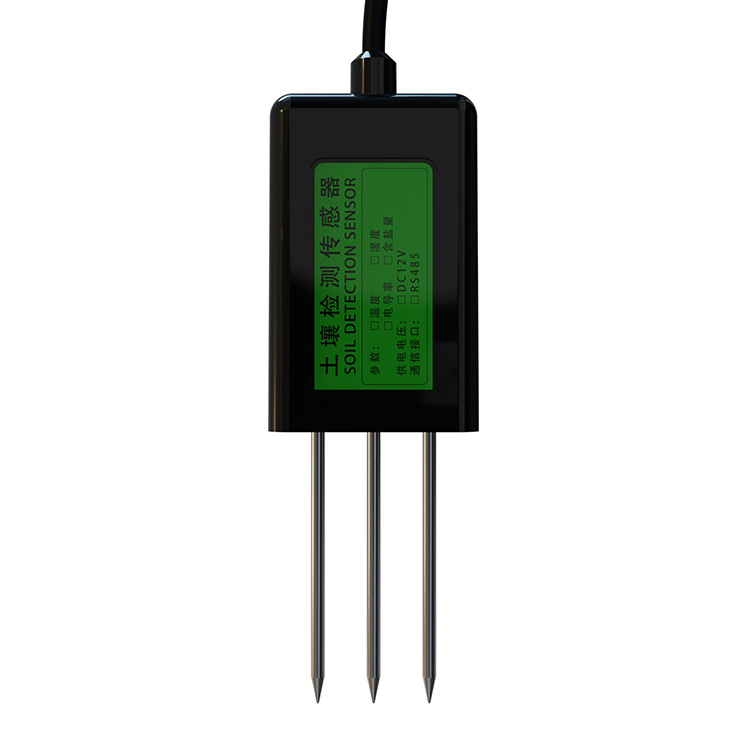

Soil salinity sensor
Model:TY485
Brand:fengtu
Related products
Product details
1.Soil salinity sensor technical indicators
Soil salinity sensor is widely used in measurement of salt content of scientific experiment, greenhouse, flowers and vegetables, grassland and pasture, soil salinity sensor and plant culture etc.
1.Power supply: DC12V
2.Power consumption: less than 0.1W
3.Working temperature: -30~70℃
4.Communication interface: RS485
5.Working current: 8mA DC12V
6.Minimum data interval: 60S

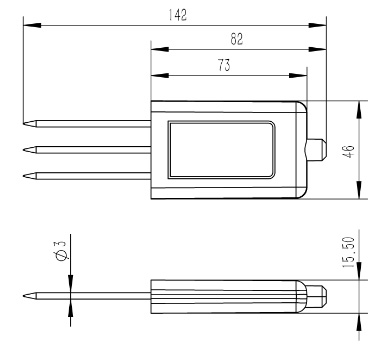

2.Soil salinity sensor product size chart
3.Precautions for using Soil salinity sensor
1.Sensor installation should be carried out strictly in accordance with the installation and operating instructions.
2.When multiple sensors work at the same time, they must be separated by a distance of more than 5 meters.
3.The sensor measurement principle is limited.There should be no interference from electromagnetic cables and strong magnetic radiation within a 5-meter radius of the sensor measurement location.
Avoid huge errors and damage to sensor measurements.
4.The installation environment of the sensor should comply with the measurement range of the sensor to avoid irregularities such as over-range.
5.The sensor should be installed away from strong acid, alkali, heavy oil and heavy metal environments.
6.The sensor is a soil measurement sensor.It is prohibited to use this sensor for other purposes.
7.The sensor installation environment must not have strong vibration.
8.The sensor cannot be subject to excessive external force.
9.Disassembly is prohibited, and no service will be provided if you disassemble it without permission.
10.The sensor probe is relatively sharp, so you should wear protective gear according to regulations when using it.
11.The equipment should be used and maintained in strict accordance with the above precautions.Our company will not be responsible for any violation of regulations.
4.Soil salinity sensor sensor parameters
parameter | Measuring range | Accuracy | resolution | unit |
soil conductivity | 0~20000 | ±3% (15℃, 0~10000us/cm) ±5% (full range) | 1 | us/cm |
Soil salinity | 0~12800 | ±3% | 1 | mg/L |
