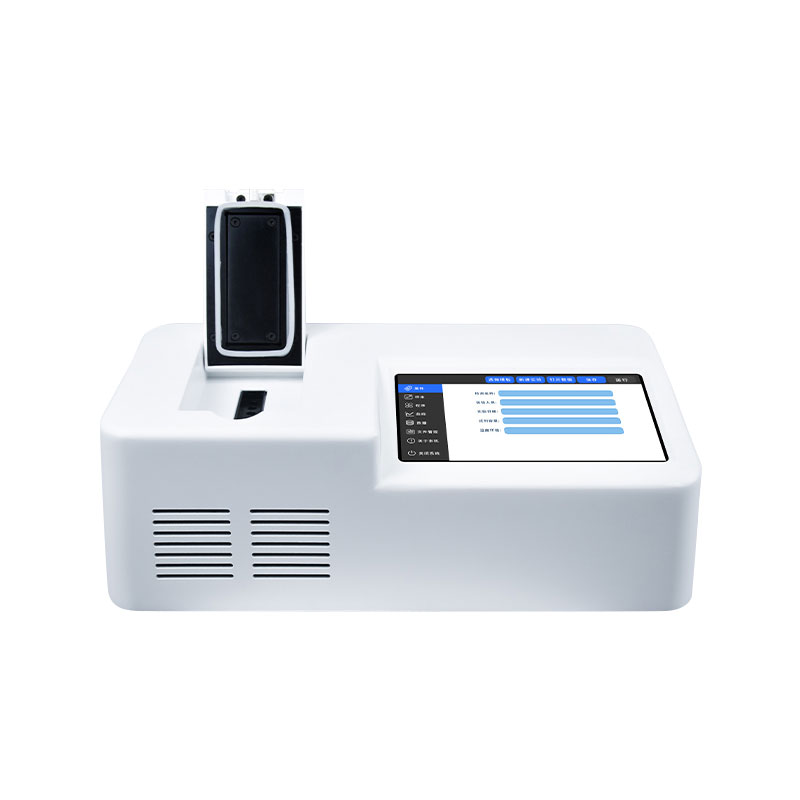

Aquaculture virus detection

Aquaculture virus detection is widely used in the monitoring of aquatic diseases in aquaculture bases, aquatic processing enterprises, aquatic seed enterprises and other units.The Aquaculture virus detection is easy to use, easy to operate and easy to control.It can quickly detect viruses in fish, shrimp and other aquatic products to achieve timely diagnosis and timely control.

1.Characteristics of Aquaculture virus detection

1.Small size, light weight, easy to carry.Easily meet the needs of out-of-town experiments.

2.Built-in 7-inch high-definition capacitive screen PDA, touch screen operation, simple and fast.

3.Marlow's high-quality Peltier refrigeration chip, combined with the German high-end PT1000 temperature sensor and the temperature control mode of the electrical resistance heating compensation edge, has a maximum heating speed of 7°C and a maximum cooling speed of 5°C, which greatly shortens the experimental time.

4.3s fast lighting mode for the entire board to ensure the consistency of hole positions in experimental results.

5.Simple and intuitive software guidance makes it easy to start detection experiments.

2.Application fields of Aquaculture virus detection

basic scientific research

Pathogen detection

Adulteration of meat products

GMO testing

Food safety testing

Drug development and rational drug use

gene expression

water body monitoring

3.Aquaculture virus detection technical parameters

Sample capacity: 8x0.2ml, supports 8 strips

Applicable consumables: common transparent PCR consumables, 8x0.2ml tubes, 0.2ml single tube

Reaction system: 5-120ul reaction mode system

Heating/cooling module: imported semiconductor thermoelectric module

Temperature control range: 4°C-99°C

The average rate of temperature rise and fall is ≥2°C/second

Temperature control accuracy: ≤±0.1°C

Temperature uniformity: ≤±0.2°C

Number of temperature control areas: multiple points (2 points)

Number of gradients: 0

Gradient temperature range: None

Number of gradient holes: None

Excitation light source: maintenance-free LED

Excitation light wavelength range: 400-700nm

Detection components: imported photoelectric detector

Number of detection channels: standard 1 channel (FAM), advanced configuration (optional) (FAM, VIC)

Applicable dyes and probes: FAM/SYBR Green I, VIC/HEX/CY3 (optional), ROX/Texas Red (optional), Cy5, TAMARA (optional)

Software functions: Fluorescence quantitative PCR system software; real-time amplification reaction curve function; specific sample real-time reaction curve display; data analysis function;

Automatic judgment function of yin and yang results; graphical display function.

Noise: <45 dB

Screen size: 7 inches (HD)

Touch screen: capacitive

External USB: supports data import and export

Hot lid: automatic pressure adjustment

Appearance size: 290(W)*308(L)*130(H)

Box size: 75 long * 38 wide * 19 high cm

Net weight: about 3Kg
