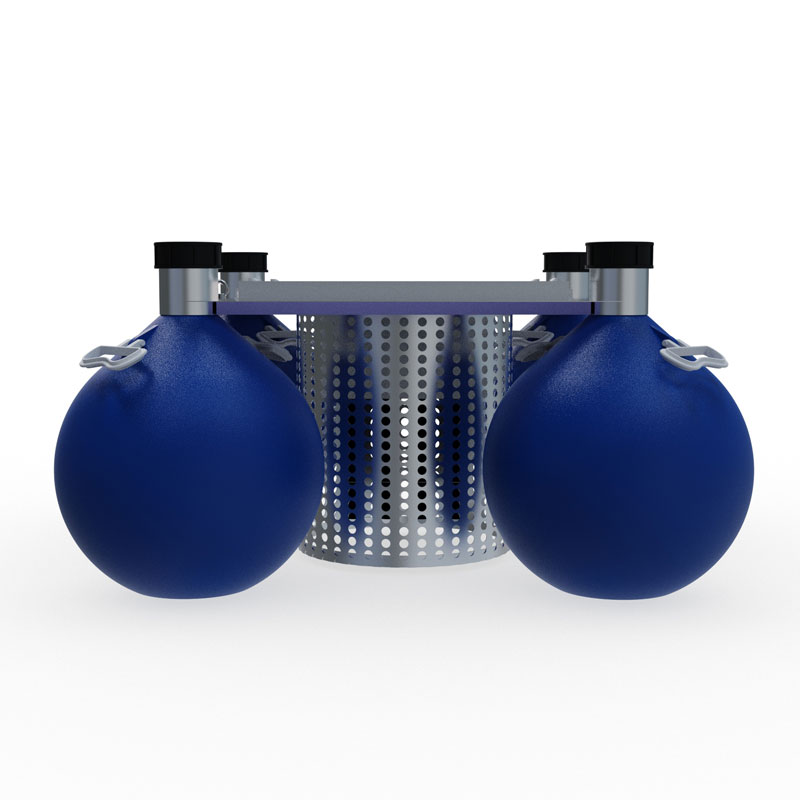

Water Quality Monitoring Data Buoys

Water Quality Monitoring Data Buoys

Model:FT-SFA05

Brand:fengtu

Water Quality Monitoring Data Buoys enables simultaneous measurement of multiple water quality parameters, including temperature, pH, ammonia nitrogen, electrical conductivity, dissolved oxygen, etc.

Product details

1.Introduction to Water Quality Monitoring Data Buoys

1. Water Quality Monitoring Data Buoys enables simultaneous measurement of multiple water quality parameters, including temperature, pH, ammonia nitrogen, electrical conductivity, dissolved oxygen, etc.The water quality floating monitoring station SFA is an unattended data collection system that integrates data collection, storage, transmission and management. It is an automatic hydrological monitoring and reporting system for industrial and agricultural production, tourism, urban environmental monitoring, geological disasters, flood control, water supply scheduling, power station reservoir water management, etc. The powerful host computer software can remotely observe real-time water and rainfall information, and has database, report, download and other functions. Users can also use the well-functioning meteorological software to further process and analyze the recorded data.

2. The SFA05 buoy is composed of six parts: water quality sensor (water temperature, conductivity, PH, dissolved oxygen, ammonia nitrogen), data acquisition instrument, communication system, power supply system, overall bracket, and water quality monitoring platform. At the same time, it can expand multiple water quality elements such as turbidity, COD, chlorophyll, etc. The data acquisition instrument has data acquisition, real-time clock, data timing storage, parameter setting and standard 2G/4G (GPRS) communication functions.

2. Features of Water Quality Monitoring Data Buoys

1. Easy to deploy: various types of probes are highly integrated and easy to install; free cloud platform services are provided, and the system can be quickly put online;

2. Easy maintenance: After the equipment is installed, it can work automatically without manual supervision. The normal operation of the equipment can also be ensured by remote monitoring;

3. Easy to expand: sensor probes all use a unified communication protocol, which can quickly connect to the original equipment and quickly expand monitoring parameters;

4. Low power consumption: The device can run for a long time in a low power consumption state, increasing the convenience of device use;

5. Real-time: The data monitored by the equipment is transmitted to the cloud platform in real time to improve the timeliness of environmental data feedback.

3. Technical Parameters of Water Quality Monitoring Data Buoys

1. Subject parameters

product namedescribe
Water Quality Monitoring Data Buoys

Real-time online monitoring of multiple parameters can be achieved.

Battery charge monitoring can be realized.

It can realize cloud platform data monitoring, data push,

Data storage and alarm function; data wireless transmission function.

The peak power consumption is 5W; the sensor power consumption is about 0.25W per sensor.

Overall dimensions: 750mm*750mm*535mm. Float diameter 414mm

Weight: 22kg

Collector data collectionReliable operation, anti-interference, can integrate multiple RS485/MODBUS-RTU slave devices
Collector data output1 channel RS485/JSON protocol output
BatteryLithium battery 12VDC, 20AH (default)
solar panel22.1V/50W (default)
Power supply capabilityCustomized selection; intermittent operation for more than 5 days on rainy days
Position indicator (optional)Warning light;GPS positioning;
Monitoring PlatformCloud platform; mobile phone/computer multi-terminal login
protecting mask304 stainless steel filter cartridge protective cover
Floating bodyDiameter 414mm, spherical float * 4 engineering plastics

2. Main parameters of optional sensors








Serial numbernameMeasuring rangeMeasuring principlemeasurement accuracyIs it standard?Remark
1temperature0~50℃High-precision digital sensor±0.3℃
2pH0~14 (ph)Electrochemistry (Salt Bridge)±0.1PH
3ORP-1500mv~1500mvElectrochemistry (Salt Bridge)±6mv

4Conductivity0~5000uS/cmContact electrode method±1.5%
5Turbidity0~40NTU (low turbidity)Scattered light method±1%
Low turbidity can be customized
0~1000NTU (medium turbidity)Scattered light method±1%
Medium turbidity can be customized
0~3000NTU (high turbidity)Scattered light method±1%
Default
6Dissolved oxygen0~20mg/LFluorescence lifetime method±2%
7Ammonia nitrogen0~100mg/lIon Selective Electrode Method±1mg
8cod0~500mg/LUV254 absorption method±5%
Default hair, cod turbidity integration
Turbidity0~400NTUScattered light method±1%
9Suspended Matter0~2000mg/LScattered light method±5% (depending on sludge homogeneity)

10Chlorophyll0~400ug/LFluorescence methodR2>0.999

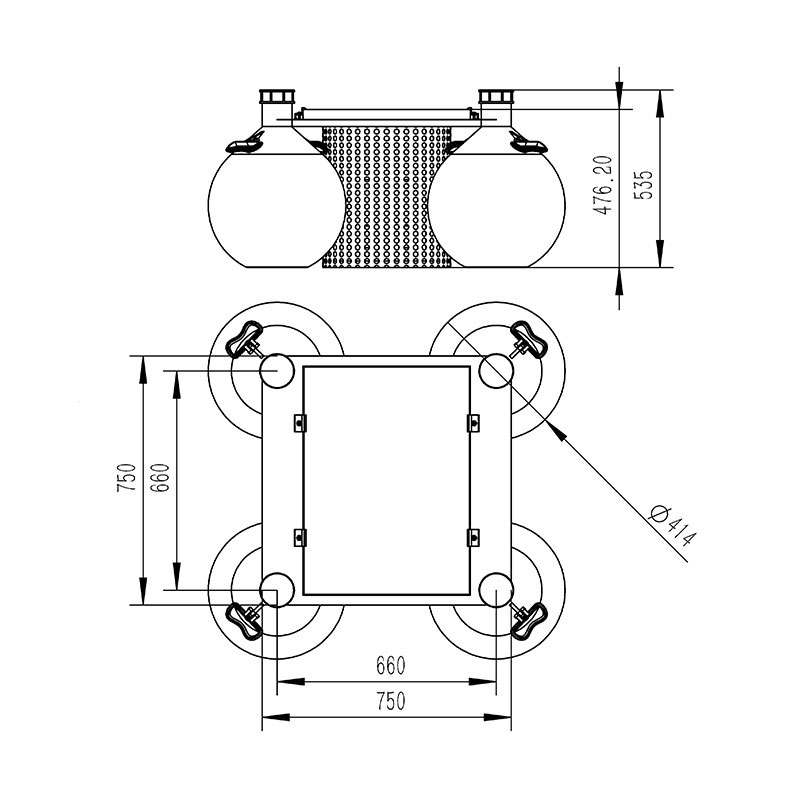

4. Water Quality Monitoring Data Buoys Product Dimensions

Water Quality Monitoring Data Buoys Product Dimensions

5. Water Quality Monitoring Data Buoys Equipment Installation Requirements

1. Stay away from high-power radio transmitters

2. Stay away from high-voltage transmission lines and microwave radio transmission channels

3. Try to be close to the data transmission network

4. Stay away from strong electromagnetic interference

6. Introduction to Water Quality Monitoring Data Buoys Cloud Platform

1.CS architecture software platform, supports direct observation via mobile phone and PC browser. No additional software installation is required.

2.Support multiple accounts and multiple devices login

3. Support real-time data display and historical data display dashboard

4. Cloud server. Cloud data storage, stable and reliable, easy to expand, and load balanced.

5.Support SMS alarm and threshold setting

6.Support map display and view device information.

7.Support data curve analysis

8.Support data export in table format

9.Support data forwarding, HJ-212 protocol, TCP forwarding, http protocol, etc.

10. Support data post-processing function

11.Support external running of javascript scripts
