Automatic Farmland Weather Station
Model:FT-NQ10
Brand:fengtu
Related products
Product details
1.Introduction to Automatic Farmland Weather Station
Automatic Farmland Weather Station provides accurate meteorological data for farmers by real-time monitoring of farmland meteorological environment.NQ10 Automatic Farmland Weather Station is a highly integrated, low-power, fast installation and easy for field monitoring.

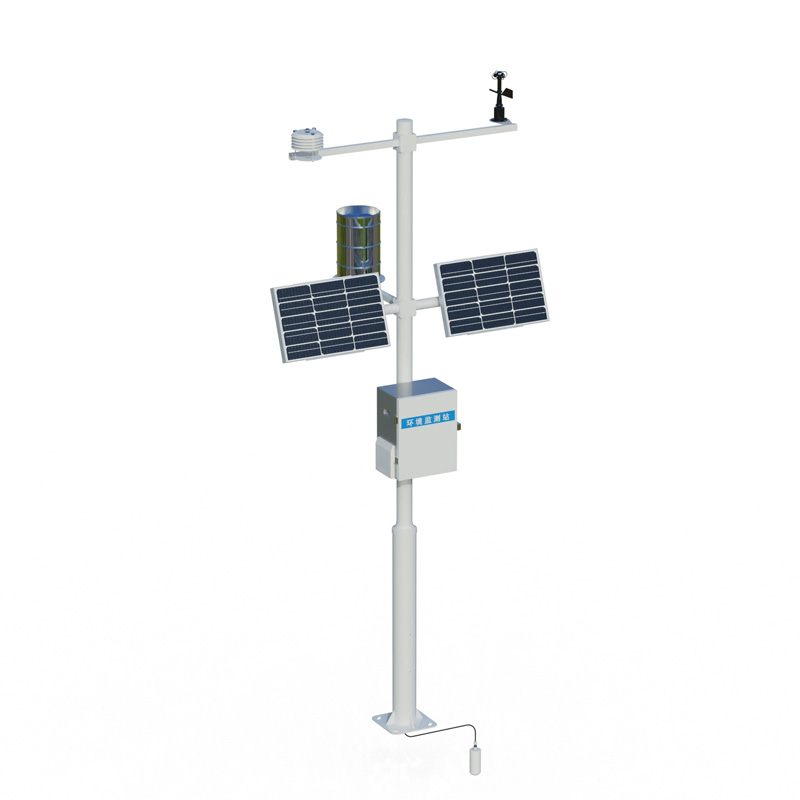

The device consists of five parts: meteorological sensor, collector, solar power supply system, pole support, and cloud platform.It is free of debugging and can be quickly arranged, and is widely used in meteorological, agriculture, forestry, scientific investigation and other fields.
2.Product features of Automatic Farmland Weather Station
1.Low-power collector: static power consumption is less than 50uA
2.Standard GPRS networking, support extended Bluetooth, and wired transmission
3.Seven-inch Android touch screen, version: 4.4.2, quad-core Cortex™-A7, 512M/4G
4.Support modbus485 sensor expansion
5.Solar Charging Management MPPT Automatic Power Point Tracking
6.Three-meter carbon steel bracket, two threaded screw connection
7.Send SMS alarm, send SMS to the specified mobile phone after exceeding the limit
8.Stainless steel material protective box, corrosion-resistant and oxidative-resistant, waterproof grade IP66
3.Technical parameters of Automatic Farmland Weather Station
1.Collector power supply interface: GX-12-3P plug, input voltage 5V, with RS232 output Json data format, collector power supply: DC5V±0.5V peak current 1A,
2.Sensor modbus, 485 interface: GX-12-4P plug, output power supply voltage 12V/1A, device configuration interface: GX-12-4P plug, input voltage 5V
3.Solar power supply and equipped with lead-acid battery, optional 30W 20AH/50W 20AH/100W 100AH.Charging controller: 150W, MPPT automatic power point tracking, efficiency is increased by 20%.
4.Data upload interval: 1 minute-1000 minutes adjustable
5.Screen size: 1024*600 RGB LCD
6.Some sensor parameters
name | Measurement range | Resolution | Accuracy |
Ambient temperature | -40~+80℃ | 0.01℃ | ±0.3℃ (25℃) |
Relative humidity | 0~100%RH | 0.01%RH | ±3%RH (20%~80%) |
Light intensity | 0-157286LUX | 1Lux | <±3% |
Atmospheric pressure | 300-1100hpa | 0.1hPa | ±0.25% |
Dew point temperature | 0~+70℃ | 0.1℃ | ±1℃ |
Tube soil temperature | -30~+70℃ | 0.01℃ | ±0.3 (-10~70℃) |
Tube soil moisture | 0~100% | 0.1% | ±3% |
Tube Soil Salt | 0~20000us/cm | 1us/cm | ±3 (0~10000us/cm) ±5% (full range) |
Soil PH (electrode method) | 0-14PH | 0.01 | ±0.1PH |
Soil nitrogen, phosphorus and potassium | 0~1999mg/kg | 1mg/kg | ±2% |
Soil evaporation | 0~75mm | 0.1mm | ±1% |
wind direction | 0~360° (8 directions) | 1/8 | <3°(>1.0m/s) |
Wind speed | 0~30m/s | 0.1m/s | ±(0.2+0.03V) m/s (25℃, V indicates wind speed) |
rainfall | ≦4mm/min | 0.2mm | ≤±2% |
Ultraviolet radiation | 0~500W/㎡ | 0.01W/㎡ | ≤±3% |
Sunshine hours | 0~6500h | 0.1h | <0.2h |
Total photoelectric radiation | 0-2000W/m2 | 1W/m2 | <±3% |
Photosynthetic effective radiation | 0-2000W/m2 | 1W/m2 | ≤±5% |
carbon dioxide | 400-5000ppM | 1ppM | ±(50ppm+5% reading |
PM2.5 | 0-1000ug/m³ | 1ug/m³ | ±10% (<500 micrograms) |
PM10 | 0-1000ug/m³ | 1ug/m³ | ±10% (<500 micrograms) |
Carbon monoxide | 0-1000ppm | 1PPM | ±2PPM |
Sulfur dioxide | 0-20PPM | 0.1PPM | ±1PPM |
Nitrogen dioxide | 0-20PPM | 0.1PPM | ±1PPM |
ozone | 0-20PPM | 0.1PPM | ±1PPM |
Negative oxygen ions | 0~100,000 units/cm3 | 1/cm3 | Reading ±10%; ion mobility ≤±20% |
Oxygen content | 0~25%Vol | 0.1% | ±3%FS |
4.Automatic Farmland Weather Station Cloud Platform
1.CS architecture software platform, supports direct observation of mobile phones and PC browsers without additional software installation.
2.Support multiple accounts and multiple devices to log in
3.Support real-time data display and historical data display dashboard
4.Cloud server and cloud data storage are stable and reliable, easy to scale, and load balancing.
5.Support SMS alarm and threshold settings
6.Support map display and viewing device information.
7.Support data curve analysis
8.Support data export table form
9.Supports data forwarding, HJ-212 protocol, TCP forwarding, http protocol, etc.
10.Support data post-processing function
11.Support external running of javascript scripts
