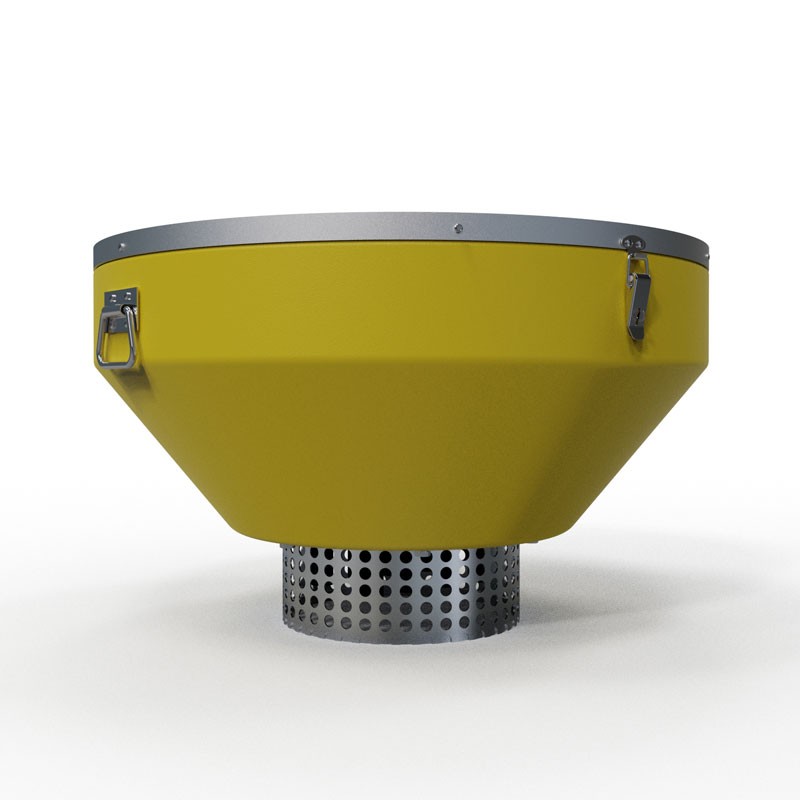

The high-spec buoy with five parameters features an enhanced integrated conical structure, integrating five core sensors for water temperature, conductivity, pH, dissolved oxygen, and ammonia nitrogen. It supports solar power and 4G data transmission, making it suitable for long-term water quality monitoring in lakes, rivers, reservoirs, and other water bodies.
The high-spec buoy with five parameters is an integrated aquatic monitoring device that combines water quality monitoring, data acquisition, and remote transmission. It is primarily used for real-time water quality monitoring in lakes, rivers, reservoirs, and nearshore waters. The device consists of six parts: water quality sensors, a data acquisition unit, a communication system, a power supply system, an overall support frame, and a water quality monitoring platform. The core sensors monitor five key parameters: water temperature, conductivity, pH, dissolved oxygen, and ammonia nitrogen. It can also be expanded to monitor multiple water quality elements such as turbidity and COD according to actual needs.
The high-spec buoy with five parameters uses an enhanced integrated conical structure. This design conforms to the principles of buoyancy engineering, effectively increasing the device's stability and durability on the water surface. The buoy body is made of ultra-high molecular weight polyethylene (UHMWPE), which has good corrosion resistance, prevents biofouling, and is colorfast, impact-resistant, lightning-resistant, and non-magnetic, making it suitable for complex hydrological and hydrodynamic conditions such as reservoirs. The equipment supports a combination of solar panels and high-capacity batteries for power supply, allowing for long-term unattended operation in the field.
Regarding data acquisition and transmission, the data acquisition unit features data acquisition, a real-time clock, timed data storage, and parameter setting functions, supporting standard 2G/4G (GPRS) communication. Monitoring data is transmitted to the monitoring platform in real time via a wireless network, allowing users to remotely view the data via mobile phone or computer. The system also has an over-limit SMS alarm function, automatically sending alarm messages when monitored parameters exceed set thresholds.
The high-end buoy with five parameters features multiple measurement parameters, high measurement accuracy, large storage capacity, easy networking, and stable operation. The equipment adopts an unattended intelligent control system that can automatically complete the acquisition and transmission of multi-channel sensor data. In terms of power consumption control, the device has a peak power consumption of 5W, and the sensor power consumption is approximately 0.25W per unit. It can operate intermittently for more than 5 days in cloudy or rainy weather. This device is suitable for various scenarios such as lake eutrophication monitoring, drinking water source protection, and aquaculture water quality monitoring, providing real-time data support for water resource protection and water environment management.
