Agricultural Environment Monitoring System

1.Introduction to Agricultural Environment Monitoring System

Agricultural Environment Monitoring System can provide scientific basis for agricultural production by monitoring and collecting farmland meteorological data in real time.NQ12Agricultural Environment Monitoring System is a high-precision meteorological observation device that is highly integrated, low-power, quick to install, and easy to use for field monitoring.

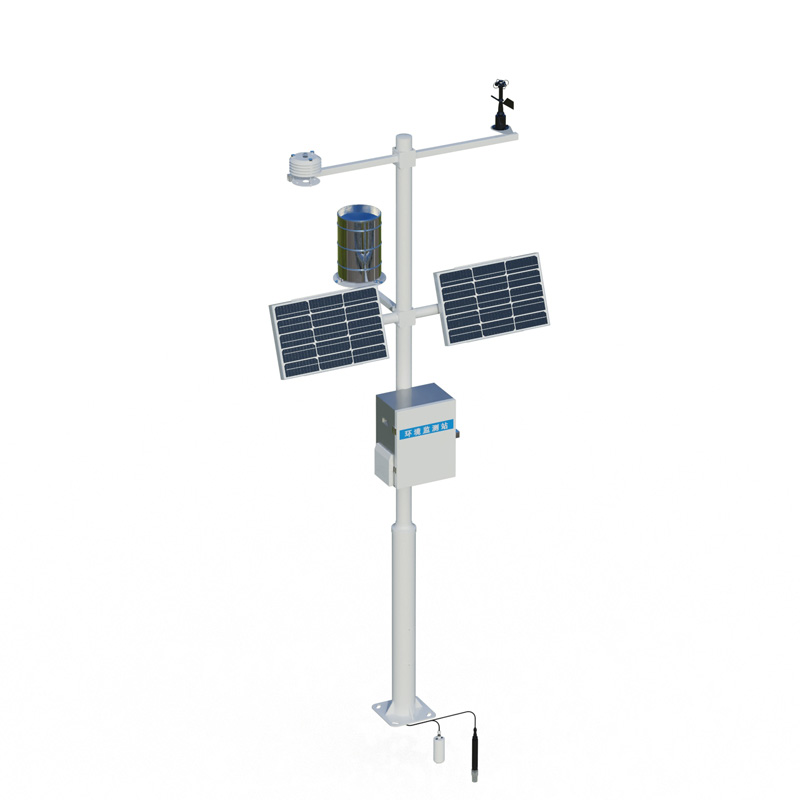

The equipment consists of five parts: meteorological sensor, collector, solar power supply system, pole bracket and cloud platform. It is debugging-free and can be quickly deployed. It is widely used in meteorology, agriculture, forestry, scientific investigation and other fields.

2. Features of Agricultural Environment Monitoring System

1. Low power collector: static power consumption is less than 50uA

2. Standard GPRS networking, support for extended Bluetooth and wired transmission

3. 7-inch Android touch screen, version: 4.4.2, quad-core Cortex™-A7, 512M/4G

4.Support modbus485 sensor expansion

5. Solar charging management MPPT automatic power point tracking

6. Three-meter carbon steel bracket, two-section threaded connection

7. SMS alarm, send SMS to the designated mobile phone after exceeding the limit

8. ABS material protective box, corrosion-resistant, anti-oxidation, waterproof grade IP66

3. Technical Parameters of Agricultural Environment Monitoring System

1. Collector power supply interface: GX-12-3P plug, input voltage 5V, with RS232 output Json data format, collector power supply: DC5V±0.5V peak current 1A,

2. Sensor modbus, 485 interface: GX-12-4P plug, output power supply voltage 12V/1A, device configuration interface: GX-12-4P plug, input voltage 5V

3. Solar power supply, lead-acid battery, optional 30W 20AH/50W 20AH/100W 100AH. Charge controller: 150W, MPPT automatic power point tracking, efficiency increased by 20%

4. Data upload interval: 1 minute - 1000 minutes adjustable

5.Screen size: 1024*600 RGB LCD

6. Some sensor parameters

4. Agricultural Environment Monitoring System Cloud Platform

1.CS architecture software platform, supports direct observation via mobile phone and PC browser, no need to install additional software.

2.Support multiple accounts and multiple devices to log in

3.Support real-time data display and historical data display dashboard

4. Cloud servers and cloud data storage are stable and reliable, easy to expand, and load balanced.

5.Support SMS alarm and threshold setting

6.Support map display and view device information.

7.Support data curve analysis

8.Support data export in table format

9.Support data forwarding, HJ-212 protocol, TCP forwarding, http protocol, etc.

10. Support data post-processing function

11.Support external running of javascript scripts

5. Agricultural Environment Monitoring System Product Dimensions

6. Agricultural Environment Monitoring System Product Structure Diagram
