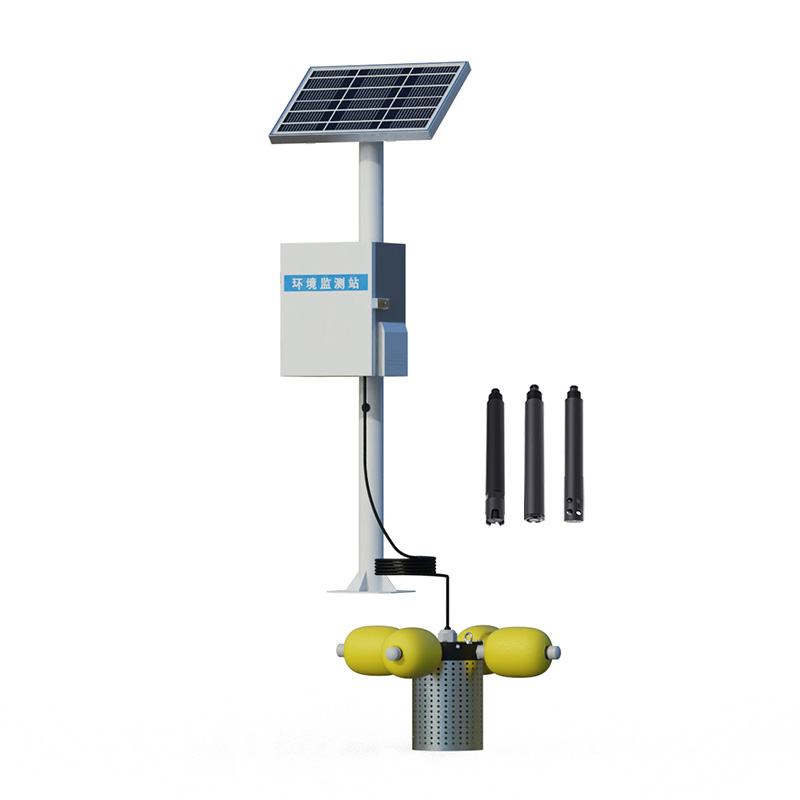

Pole type water quality monitoring station

1.Pole type water quality monitoring station product introduction

Pole type water quality monitoring station is set up in rivers, lakes, reservoirs, park wetlands, hot springs, coastal waters and other watersheds automatic monitoring laboratory.The Pole type water quality monitoring station uses water quality sensors as its core. It monitors and analyzes various water quality parameters and transmits the collected data to the platform to remotely view real-time data and remotely manage equipment. At the same time, it can effectively alarm and intelligently process water quality trends. It can also express the comprehensive index of water quality based on the correlation and combination between real-time water quality parameters, providing customers with a large amount of objective, detailed and effective data, which is of practical significance for solving water pollution problems.

At present, the FT-LSZ05 water quality monitoring station developed and produced by Shandong Fengtu Internet of Things Technology Co., Ltd. is widely used in aquaculture, sewage treatment, reservoirs, rivers and other places

2. Product features of Pole type water quality monitoring station

1. Low power collector: static power consumption is less than 50uA

2. Standard GPRS networking, support for extended Bluetooth and wired transmission

3.Support modbus485 sensor expansion

4. Solar charging management MPPT automatic power point tracking

5.1.5m carbon steel support

6. SMS alarm, send SMS to the designated mobile phone after exceeding the limit

7. ABS material protective box, corrosion-resistant, anti-oxidation, waterproof grade IP66

8. No additional procedures are required, such as wiring, station building, reagent preparation, and personnel post-maintenance. Compared with the national standard water quality monitoring station, it is more convenient to use and install, and the observation data is more intuitive

9. The system can integrate integrated meteorological environment monitoring data

3. Pole type water quality monitoring station system composition

Pole type water quality monitoring station is mainly composed of basic support (including pole, ground cage, ABS anti-corrosion and corrosion-resistant protective box), power supply system, monitoring host, water quality sensor and cloud platform.

4. Pole type water quality monitoring station technical parameters

5. Introduction to Pole type water quality monitoring station cloud platform

1.CS architecture software platform, supports direct observation via mobile phone and PC browser, no need to install additional software.

2.Support multiple accounts and multiple devices login

3.Support real-time data display and historical data display dashboard

4. Cloud servers and cloud data storage are stable and reliable, easy to expand, and load balanced.

5.Support SMS alarm and threshold setting

6.Support map display and view device information.

7.Support data curve analysis

8.Support data export in table format

9.Support data forwarding, HJ-212 protocol, TCP forwarding, http protocol, etc.

10. Support data post-processing function

11.Support external running of javascript scripts
