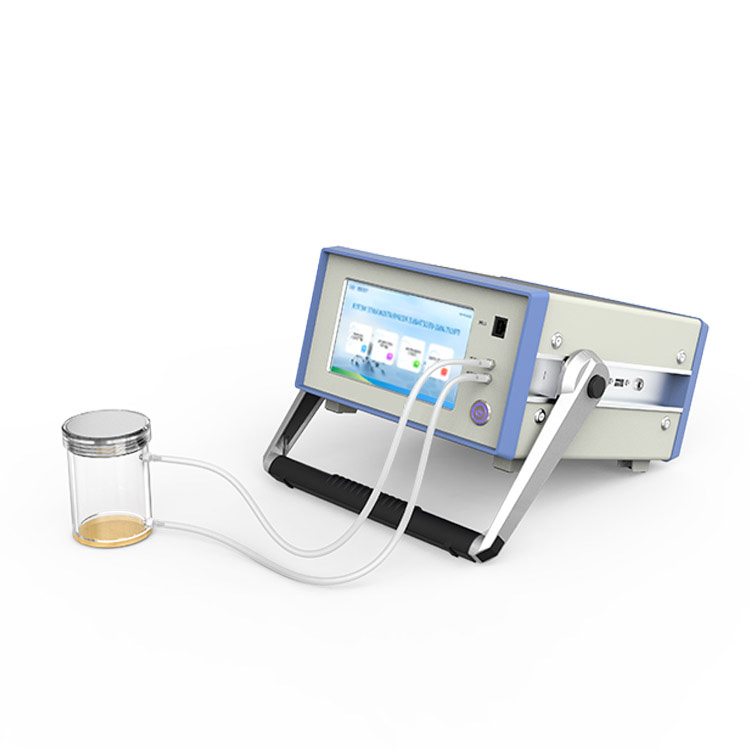

Fruit and Vegetable Respiration Tester
Model:FT-GH10
Brand:fengtu
Related products
Product details
Fruit and Vegetable Respiration Tester Instrument Introduction:
Fruit and Vegetable Respiration Tester is used to measure and analyze the respiration rate of fruits and vegetables under storage conditions to evaluate the respiration intensity of fruits and vegetables.The Fruit and Vegetable Respiration Tester is specially used for the determination and analysis of the respiration intensity of fruits and vegetables under storage conditions such as room temperature, cold storage, gas conditioning storage, and supermarket freezers. The characteristic of this instrument is that different volumes of respiration chambers can be selected according to the size of fruits and vegetables, which speeds up the balance and measurement time; the CO2 concentration, O2 concentration, temperature and humidity of the respiration chamber can be displayed simultaneously. This instrument has the characteristics of multi-function, high precision, fast, efficient and convenient, and is very suitable for various schools and scientific research institutes such as food, horticulture, fruits, vegetables, and foreign trade for the respiration measurement of various fruits and vegetables.
Fruit and Vegetable Respiration Tester Technical Indicators:
Carbon dioxide detection
Detection principle: infrared
Minimum measuring range: 0-2000ppm
Linearity: ≤±1%FS
Repeatability: ≤±1%
Response time: ≤15s
Zero drift: ≤±2%FS/24h
End point drift: ≤±2%FS/24h
Oxygen detection
Detection principle: electrochemical formula
Measuring range: 0-30%
Linearity: ≤±2%FS
Repeatability: ≤±1%
Response time: 30s
Zero drift: ≤±2%FS/24h
End point drift: ≤±2%FS/24h
temperature check
Measuring range: -20-95℃, resolution: 0.1℃, accuracy: ±0.2℃
Humidity detection
Measuring range: 0-100%, resolution: 0.1%, accuracy: ±0.2%FS
Power supply: AC220V±10%
Warm-up time: 30 minutes
Three breathing chamber sizes are available as standard:
1. The inner diameter is 40mm, the clear space is 80mm, and the volume is 0.1 liter
2. The inner diameter is 60mm, the clear space is 89mm, and the volume is 0.25 liters
3. The inner diameter is 120mm, the clear space is 180mm, and the volume is 2 liters
Breathing chambers of other sizes can be ordered separately according to users' needs.
Fruit and Vegetable Respiration Tester Basic Configuration
Accessories Name Quantity
One host
Three sets of breathing chambers
A power cord
One card reader
A memory card
Two tracheae
A software CD
An instrument box
Fruit and Vegetable Respiration Tester Features
1. LCD display screen 160×320 dot matrix, simple operation and clear interface
2. Use large-capacity SD card to store data, large data storage capacity and convenient export
3. With power-on calibration function, you can choose whether to calibrate when starting the machine to improve the accuracy of the instrument
4. Equipped with software for calculating respiratory intensity, users can quickly calculate the results
5. Gas flow rate is adjustable
