Plant Growth Monitoring System

1.Introduction to Plant Growth Monitoring System Products

Plant Growth Monitoring System uses computer vision to monitor the growth of plants and provides continuous and frequent data on the growth and requirements of plants.Plant Growth Monitoring System refers to the real-time video monitoring of crop growth and development status, pest and disease conditions and disasters by an automatic monitoring system (including daytime images and nighttime infrared images).Combined with meteorological, soil moisture sensors and insect situation forecast lights, automatic monitoring of field seedlings, insect situations and disaster situations can be achieved, so that managers can remotely pay attention to crop growth conditions and guide irrigation, fertilization, spraying and other measures according to the needs of crops in different growth cycles.

2.Composition of Plant Growth Monitoring System system

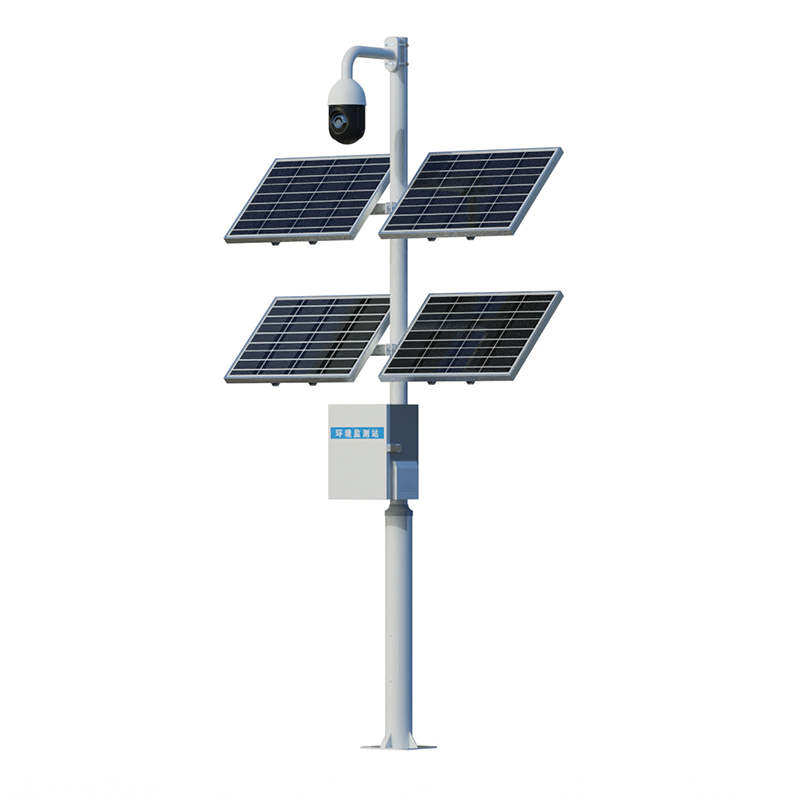

The system consists of three-meter carbon steel bracket, HK2 Hikvision camera, solar power supply system (including protective box), and cloud platform

3.Technical parameters of Plant Growth Monitoring System

1.Supports intelligent detection such as regional intrusion detection, cross-border detection, entry-level detection and exit-level detection.

2.Adopt high-efficiency fill light array, low power consumption, infrared fill light 100m

3.Built-in heating glass for effective fog removal

4.Supports ultra-low illumination, 0.005 Lux F1.6 (color), 0.001 Lux F1.6 (black and white), 0 Lux wi th IR

5.Supports 23 times optical zoom and 16 times digital zoom

6.Supports three-code stream technology, and each code stream can be independently configured with resolution and frame rate.

7.Supports 3D digital noise reduction, supports 120dB wide dynamics

8.Supports timed image capture and event image capture functions

9.Supports timing tasks, one-click watch, and one-click cruise functions

10.Support Hikvision SDK, open network video interface, ISAPI, GB/T28181, ISUP, fluorite

11.Maximum support for 256GBmi croSD card storage

12.Strong anti-interference ability, suitable for harsh electromagnetic environments, comply with the fourth-level standard of GB/T17626.2/3/4/5/6, IP66

4.Plant Growth Monitoring System Cloud Platform

1.CS architecture software platform, supports direct observation of mobile phones and PC browsers without additional software installation.

2.Support multiple accounts and multiple devices to log in

3.Support real-time data display and historical data display dashboard

4.Cloud server and cloud data storage are stable and reliable, easy to expand, and load balancing.

5.Support SMS alarm and threshold settings

6.Support map display and viewing device information.

7.Support data curve analysis

8.Support data export table form

9.Supports data forwarding, HJ-212 protocol, TCP forwarding, http protocol, etc.

10.Supports data post-processing function

11.Support external running of javascript scripts
