Satellite data collection system
Model：FT-WX1
Brand：fengtu
Get a Free QuoteRelated products
Product details
1.Satellite data collection system equipment introduction
Satellite data collection system has the functions of automatically connecting hydrometeorological data continuously, processing data and saving data.Satellite data collection system is mainly used by individual soldiers to carry out meteorological and hydrological data receiving tasks. It can be used to receive various meteorological and hydrological data such as meteorological drawing reports, real-time reports, fax maps, grid reports, satellite cloud maps, etc. issued by the satellite meteorological and hydrological data broadcasting system. It has the characteristics of easy portability and wide application area.
2. Satellite data collection system product features
1.Stable signal and strong anti-interference ability
2. Easy to load and unload, suitable for rapid field deployment
3. Easy to carry, customized special carrying case
4. Widely used, compatible with multiple satellite signals
5. Quality assurance, testing and certification by authoritative organizations
Satellite reception dedicated high-frequency head, strong anti-interference ability, stable signal, signal quality can reach more than 70%
Portable handheld satellite finder, high sensitivity, compatible with multiple satellite signals, built-in lithium battery, no need to connect to external power supply

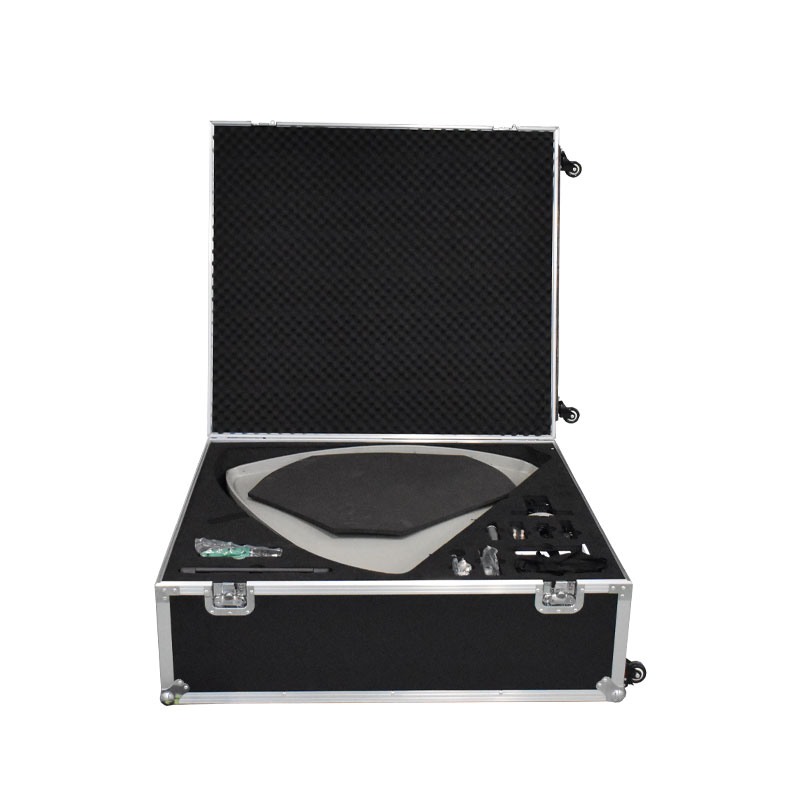

Professionally customized portable box, reasonable layout, strong and durable, very suitable for field operations and long-term storage
3. Satellite data collection system technical parameters
| Local Oscillator Type | PLL Phase Locked Loop |
| Local Oscillator Stability | ±15kHz max |
| Input frequency | C band: 3.70～4.20 GHz; |
| Output frequency | L band: 950～1450 MHz; |
| Local Oscillator Frequency | 5.15GHz |
| Gain | 55～62dBm |
| Antenna diameter | 150cm |
| size | 1020mm×920mm×300mm |
| weight | ≤55Kg; |
| Ambient temperature | -40℃～60℃ |
| Ambient humidity | 0～100% |
4. Satellite data collection system configuration list
| Parts Name | quantity |
| Portable Antenna | 1 set |
| High-frequency head | 1 |
| Coaxial Cable | 30 meters |
| Feed plate | 1 |
| Modem Box | 1 unit |
| Star Finder | 1 unit |
| Electric hand drill | 1 |
| Laptop | 1 unit |
| Matching connectors (20 pieces) | 1 set |
| Ground nails | 1 set |
| Instruction manual, certificate of conformity, warranty card | 1 set |
