Water quality monitoring equipment

Water quality monitoring equipment

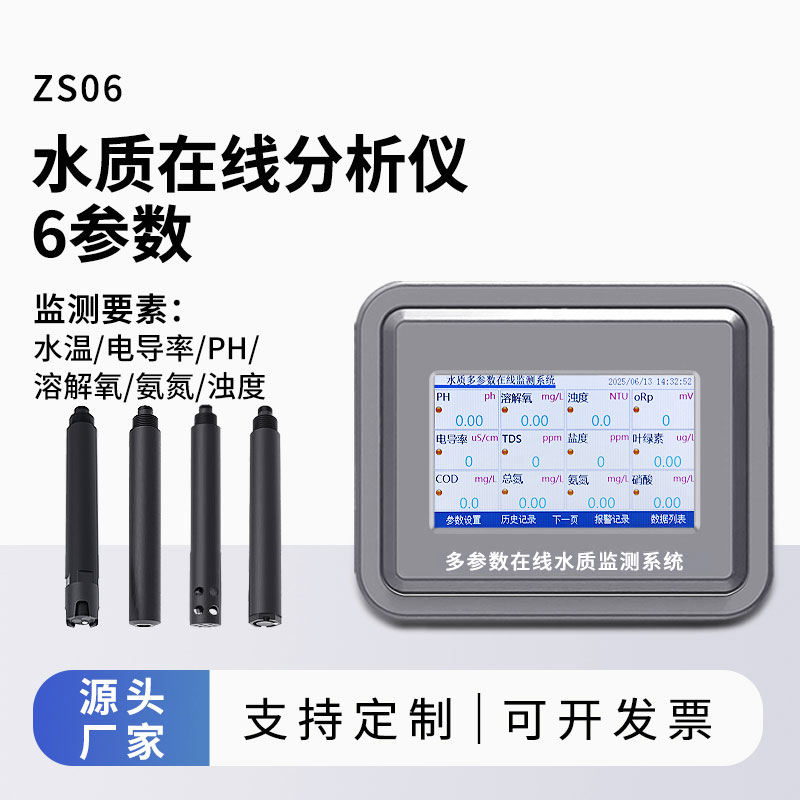

Model:FT-ZS06

Brand:fengtu

Water quality monitoring equipment can be widely used in surface water, river monitoring, lake monitoring, irrigation water sources, small water stations and other water quality monitoring projects.

Product details

1.Water quality monitoring equipment product introduction

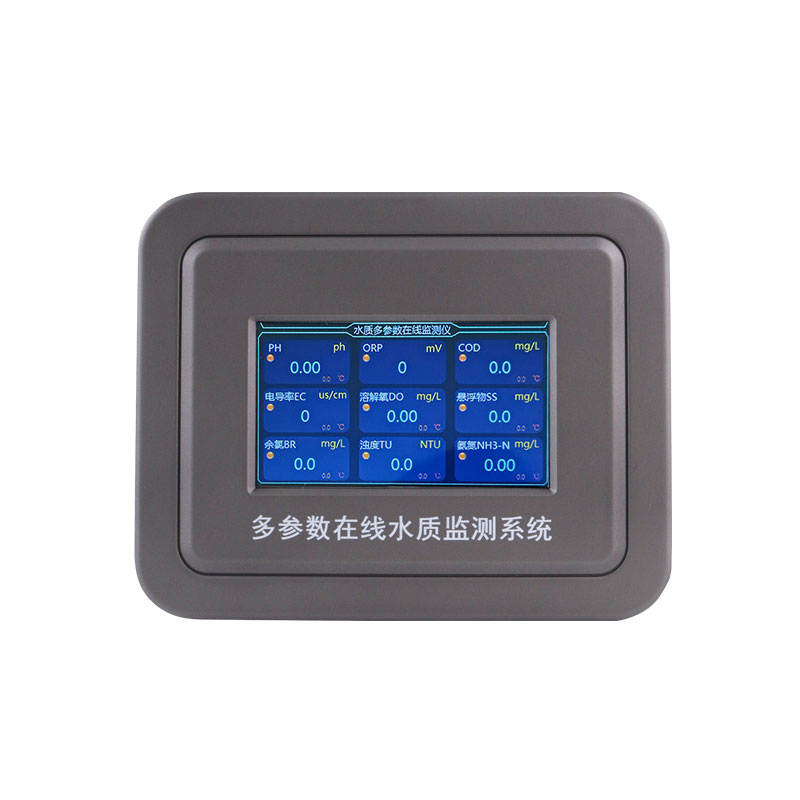

Water quality monitoring equipment can be widely used in surface water, river monitoring, lake monitoring, irrigation water sources, small water stations and other water quality monitoring projects.Water quality monitoring equipmentZS06 is an instrument that can measure multiple water quality parameters at the same time. It integrates a variety of sensors and measurement module communication storage, and can quickly and accurately record multiple key parameters in the water body. Including but not limited to water temperature, conductivity, PH, dissolved oxygen, ammonia nitrogen, turbidity, etc., can be combined and configured according to different needs and applications, record and store historical monitoring data, alarm history, and support historical data export.xlsx. The RS485 interface supports MODBUS-RTU communication protocol to facilitate users to communicate freely with PLC, DCS, configuration software, DTU and other devices to connect and transmit data.

2. Application fields of Water quality monitoring equipment

ZS06 online multi-parameter water quality detector is widely used in the monitoring and control of various water bodies, including but not limited to the following fields:

1. Water plant: used to monitor the pH value, dissolved oxygen, turbidity and other parameters of tap water to ensure the safety and hygiene of tap water.

2. Groundwater monitoring: used to monitor groundwater parameters such as pH value, conductivity, temperature, etc., so as to detect and solve water quality problems in time.

3. River and lake monitoring: used to monitor the water quality of rivers and lakes, such as dissolved oxygen, turbidity, ammonia nitrogen and other parameters, so as to take timely pollution control measures.

4. Ocean monitoring: used to monitor the water quality of the ocean, such as salinity, dissolved oxygen, temperature and other parameters, so as to timely detect and control marine pollution.

5. Sewage treatment: used to monitor sewage water quality parameters, such as pH, COD, ammonia nitrogen, etc., in order to control and adjust the sewage treatment process.

6. Industrial production: used to monitor water quality in industrial production processes, such as pH, conductivity, dissolved oxygen and other parameters, so as to adjust the process in time and ensure product quality.

7. Scientific research: used for water quality monitoring in the field of scientific research, such as lake eutrophication, climate change, etc.

3. Technical features of Water quality monitoring equipment

1. High reliability: suitable for long-term work in the field environment, stable measurement and strong anti-interference ability.

2. Flexible and portable: Each probe can be freely combined, replaced independently, and plug and play.

3. Scalability: Various sensors can be freely combined.

4. Multiple applications: on-site rapid measurement, emergency monitoring, or long-term online monitoring of groundwater, river water, lake water, and urban pipe network water.

5. Tough shell: ABS+PC material, corrosion-resistant, can work normally for a long time.

6. Compact structure: can be installed in small places.

7. Communication connection: RS485 expansion interface, master/slave interface isolation and independent communication.

4. Technical parameters of Water quality monitoring equipment

Display Output4.3-inch touch screen with strong LED backlight, can be operated under direct sunlight
power supplyDC power supply: DC12V
Power consumptionThe power consumption of the instrument is about 12V/1W
Sound Outputbuzzer
ProtocolStandard RS485 Modbus-RTU protocol and device master/slave transmission channel support
Main materialABS+PC material
storage temperature-20 to 70°C
Operating temperature-10 to 50°C
Protection levelIP65
size175mm*140mm*49mm(length×width×height)
weightAbout 0.5KG

5. Product size of water quality monitoring equipment

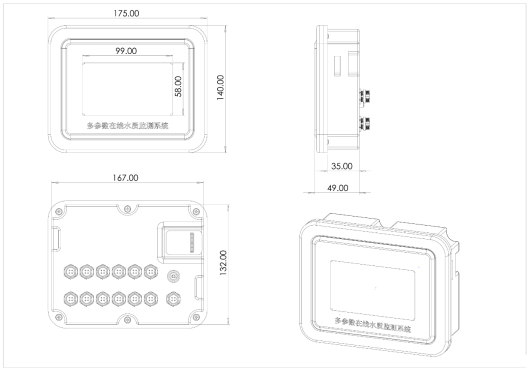

Water quality monitoring equipment dimensional drawing

Water quality monitoring equipment dimensional drawing

6. Water quality monitoring equipment sensor configuration (optional)

Serial numbernameMeasuring rangeMeasuring principlemeasurement accuracyIs it standard?Remark
1temperature0~50℃High-precision digital sensor±0.3℃
2pH0~14 (ph)Electrochemistry (Salt Bridge)±0.1PH
3ORP-1500mv~1500mvElectrochemistry (Salt Bridge)±6mv

4Conductivity0~5000uS/cmContact electrode method±1.5%
5Turbidity0~40NTU (low turbidity)Scattered light method±1%
Low turbidity can be customized
0~1000NTU (medium turbidity)Scattered light method±1%
Medium turbidity can be customized
0~3000NTU (high turbidity)Scattered light method±1%Default
6Dissolved oxygen0~20mg/LFluorescence lifetime method±2%
7Ammonia nitrogen0~100mg/lIon Selective Electrode Method±1mg
8cod0~500mg/LUV254 absorption method±5%

9Suspended Matter0~2000mg/LScattered light method±5% (depending on sludge homogeneity)

10Chlorophyll0~400ug/LFluorescence methodR2>0.999
