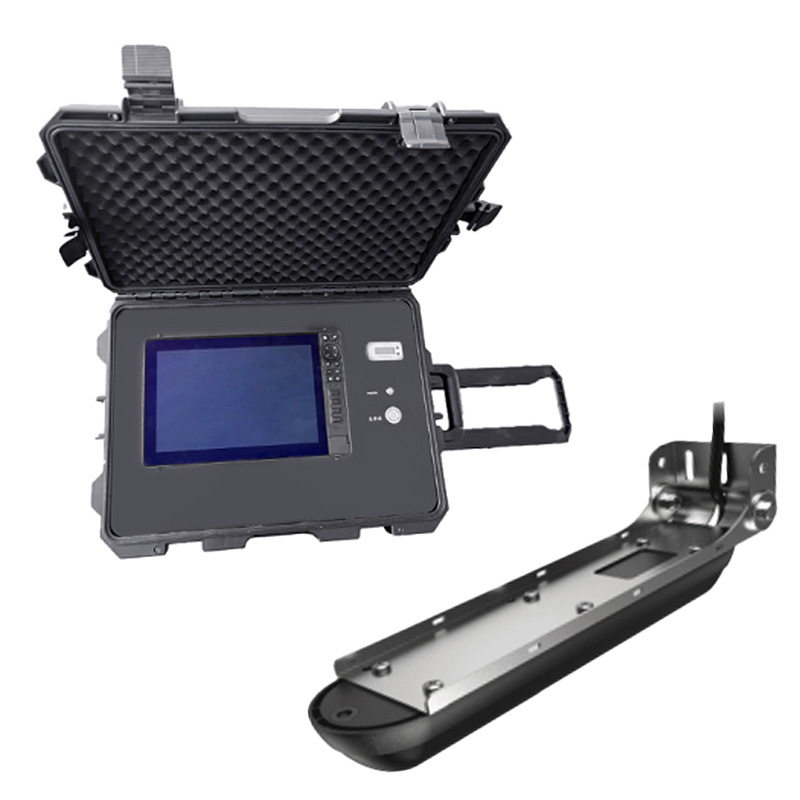

Underwater Sonar Life Rescue Detector

Underwater Sonar Life Rescue Detector Product Introduction

Underwater Sonar Life Rescue Detector solves the acoustic location and video confirmation of underwater target objects, and is applied to personnel search and rescue positioning in underwater rescue scenes.The multi-functional underwater sonar search and rescue system technology is constantly exploring.With the help of extremely clear imaging technology, it provides the scanning views of riverbeds and waters, three-dimensional views and detection of underwater life for the rescuers, which can provide more intuitive understanding of the underwater structure.It improves the efficiency of underwater operations and is one of the important equipment that can be relied on underwater salvage and rescue.

1.Screen type: 7-inch IPS screen, resolution ≥1200*900, brightness ≥1200 nits.

2.Screen function: Chinese operating system, can turn on four-segment/six-segment screens, view four/six screens at the same time, and can be independently controlled, or a combination interface can be set at will, which can display positioning, water temperature, time, and range.

3.Pressure-resistant water depth: ≥300m.

4.Waterproof level: ≥IP68.

5.Shortcut key function: It has 5 custom editable shortcut keys.

6.Visual angle: vertical viewing angle 160°, 80° up/down, horizontal viewing angle 160°, 80° left/right.

7.Exploration and measurement range: Sweep under the structure ≥90m, side sweep in the structure ≥180m, maximum range depth ≥300m.

8.Support functions: automatic steering, Bluetooth connection, radar compatibility 3G, 4G, HALO24 radar antenna, GPS, WAAS/EGNOS, global simple navigation chart, automatic ship recognition, built-in CHIRP1 and CHIRP2 dual-channel sonar.

9.Sonar operating frequency: 50KHZ/83KHZ/200KHZ/455KHZ/800KHZ/1200KHZ, CHIRP frequency is available.

10.Recording function: Sonar, structure scanning has recording function to playback and analyze.

11.Working voltage: 12V.

12.Power consumption: 33.12W.

13.Sonar power: 600W.

14.Use ambient temperature: -15℃~+55℃.

15.Device configuration: NMEA0183 data output/input RS422, supports baud rate 4800, 19200, 38400, 2 Ethernet interfaces, 1 NMEA2000 data interface, video input interface, 2 micro SD data card slots, maximum support 32G .

16.Waypoint and track storage quantity: 3,000 waypoint storage quantity, 100 track storage quantity, 100 track storage quantity, 100 (up to 10,000 points per track), supports automatic ship identification system, and can support audio amplifier connect.

17.Sonar alarm: shallow water alarm, GPS alarm function.

18.Power supply configuration: The power supply box has two power supply modes, namely the built-in battery power and the external AC power supply.The power supply box can display the battery power, can quickly plug and unplug the battery interface to charge, the battery life is ≥14 hours, and the external AC power supply is Unlimited battery life can be achieved.

19.Remove the bracket and handheld probe: The main unit and sonar probe should have an mountable and removable bracket, which can be quickly installed and used on the assault boat/rubber boat, and has the function of adjusting the depth and shallowness of the sonar probe.
