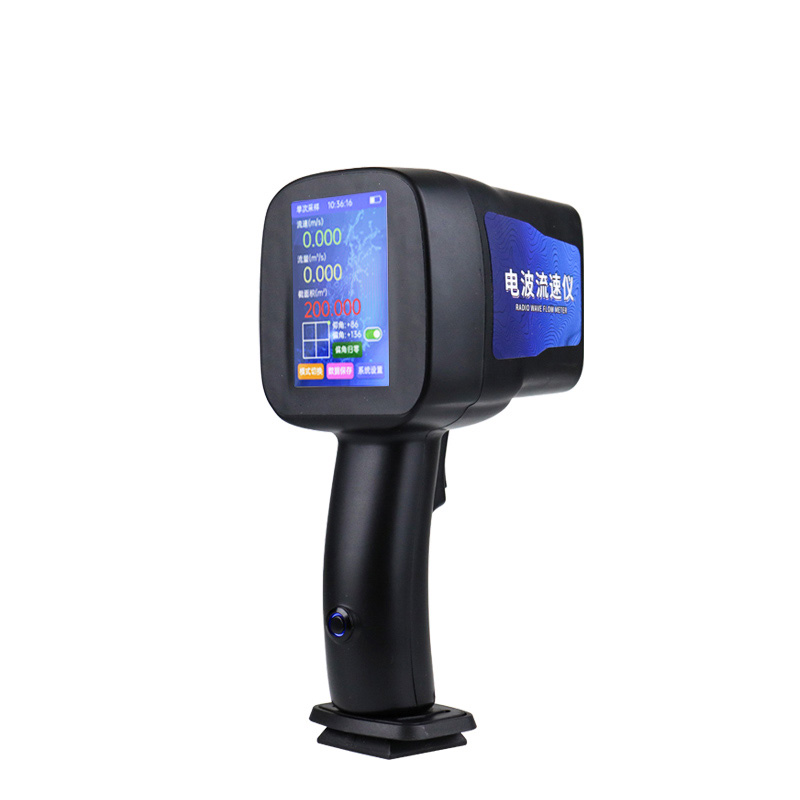

hand-held radar current meter

1.Product introduction of hand-held radar current meter :

hand-held radar current meter is used to measure the flow rate of natural rivers, sewage wastewater, and fluid liquid. The principle is to measure the flow speed by transmitting radar waves and receiving the signal reflected back.Handheld radio wave (radar) flow meter, which uses K-band radar to measure non-contact flow rates in rivers, sewage, mud, and oceans.It has the characteristics of compact size, handheld operation, battery power supply and easy use.It is not corroded by sewage or disturbed by sediment during use, and can perform non-contact measurement within a measurement range of less than or equal to 100 meters, ensuring the safety of the measurer.The instrument includes a highly sensitive planar narrow-band radar probe and goniometer.Without any settings, one-button operation can realize automatic correction of horizontal and vertical angles and corrected measurement of flow velocity.It is very convenient to use.

2.Application fields of hand-held radar current meter:

Channel flow speed monitoring, river flow speed monitoring, sewage flow speed monitoring, ocean flow speed monitoring, railway bridge construction flow speed monitoring; flood control and flood control on-site emergency monitoring, sewage discharge monitoring, and other occasions that require on-site measurement, etc.

3.Main features of hand-held radar current meter:

1.For single use, the instrument weighs less than 1kg and can be measured by hand or placed on a tripod (standard configuration);

2.Screen 3.5 inches, full touch operation; ☆

3.Chinese and English interface, guided operation, simple to use and convenient to manage;☆

4.Non-contact operation, not affected by sediment or water corrosion;

5.Multiple measurement modes, which can be used for single measurement; continuous measurement, which can last for 30 minutes; and a stand-alone flow estimation mode, which can estimate the flow of rivers with regular cross-sections;

6.Built-in rechargeable lithium battery, can be used continuously for more than 10 hours;

7.Built-in angle sensor, which can automatically correct vertical and horizontal angles;

8.The instrument shell is made of ABS resin material and aluminum alloy frame, which has impact resistance, heat resistance, low temperature resistance, corrosion resistance and electrical insulation, which protects the personal safety of measurement personnel during thunderstorm weather;

4.Technical indicators of hand-held radar current meter:

1.Measuring range: 0.1~30m/s

2.Measurement accuracy: ±3%, ±0.01m/s☆

3.Radio wave emission angle: 24°x12° (radio wave longitudinal emission angle x transverse emission angle)☆

4.Data storage: 10,000 measurement results☆

5.Battery capacity: 3600mAh☆

6.Radio wave emission standard power: 10mW

7.Radio wave transmission power: 18dBm

8.Radio frequency: 24GHz

9.Waterproof level: IP67

10.Measuring distance: less than or equal to 100 meters

11.Angle compensation: vertical angle automatic

12.Operating temperature range: -30~+70℃

13.Relative humidity range: 20%~80%

14.Storage temperature range: -30~+70℃
