Multi-parameter water quality
Model:FT-ZS05
Brand:fengtu
Related products
Product details

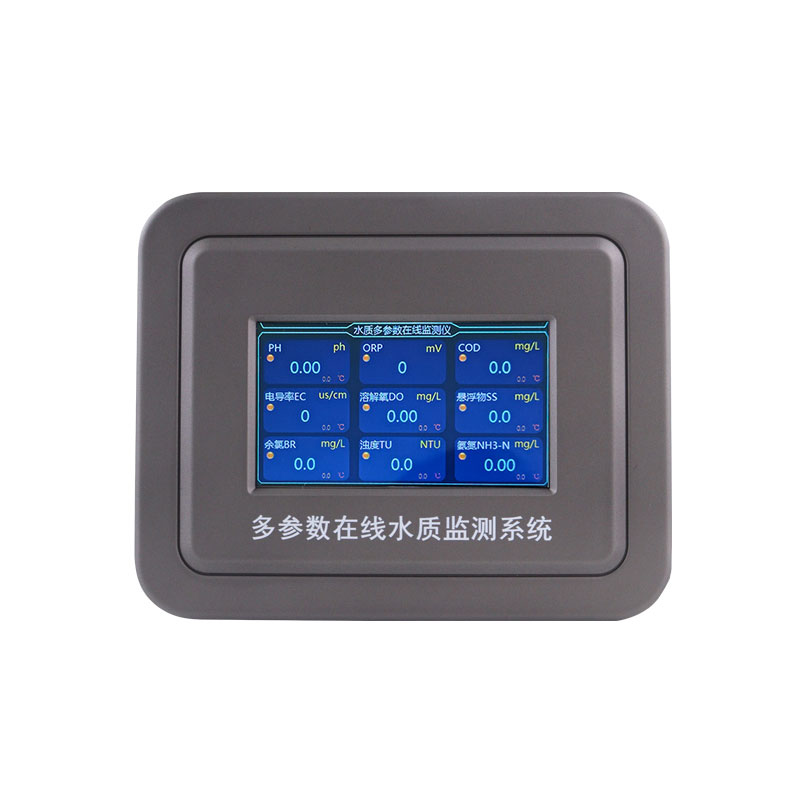

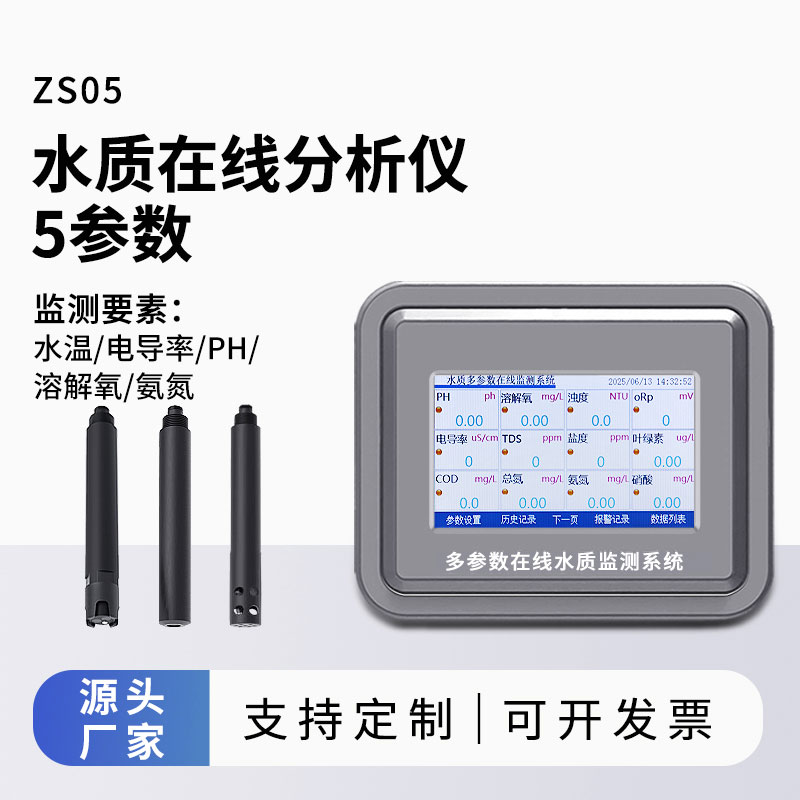

1.Multi-parameter water quality product introduction
Multi-parameter water quality is a multi-parameter online water quality analyzer that continuously monitors turbidity, pH, ORP, conductivity and other parameters.Multi-parameter water qualityZS05 is an instrument that can measure multiple water quality parameters at the same time. It integrates multiple sensors and measurement module communication storage, and can quickly and accurately record multiple key parameters in the water body. Including but not limited to water temperature, conductivity, PH, dissolved oxygen, ammonia nitrogen, etc., can be combined and configured according to different needs and applications, record and store historical monitoring data, alarm history, and support historical data export.xlsx. The RS485 interface supports MODBUS-RTU communication protocol to facilitate users to communicate freely with PLC, DCS, configuration software, DTU and other devices to connect and transmit data.
2. Multi-parameter water quality application areas
ZS05Multi-parameter water quality is widely used in the monitoring and control of various water bodies, including but not limited to the following fields:
1. Water plant: used to monitor the pH value, dissolved oxygen, turbidity and other parameters of tap water to ensure the safety and hygiene of tap water.
2. Groundwater monitoring: used to monitor groundwater parameters such as pH value, conductivity, temperature, etc., so as to detect and solve water quality problems in time.
3. River and lake monitoring: used to monitor the water quality of rivers and lakes, such as dissolved oxygen, turbidity, ammonia nitrogen and other parameters, so as to take timely pollution control measures.
4. Ocean monitoring: used to monitor the water quality of the ocean, such as salinity, dissolved oxygen, temperature and other parameters, so as to timely detect and control marine pollution.
5. Sewage treatment: used to monitor sewage water quality parameters, such as pH, COD, ammonia nitrogen, etc., in order to control and adjust the sewage treatment process.
6. Industrial production: used to monitor water quality in industrial production processes, such as pH, conductivity, dissolved oxygen and other parameters, so as to adjust the process in time and ensure product quality.
7. Scientific research: used for water quality monitoring in the field of scientific research, such as lake eutrophication, climate change, etc.
3. Multi-parameter water quality technical features
1. High reliability: suitable for long-term work in the field environment, stable measurement and strong anti-interference ability.
2. Flexible and portable: Each probe can be freely combined, replaced independently, and plug and play.
3. Scalability: Various sensors can be freely combined.
4. Multiple applications: on-site rapid measurement, emergency monitoring, or long-term online monitoring of groundwater, river water, lake water, and urban pipe network water.
5. Tough shell: ABS+PC material, corrosion-resistant, can work normally for a long time.
6. Compact structure: can be installed in small places.
7. Communication connection: RS485 expansion interface, master/slave interface isolation and independent communication.
4. Multi-parameter water quality technical parameters
Display Output | 4.3-inch touch screen with strong LED backlight, can be operated under direct sunlight |
power supply | DC power supply: DC12V |
Power consumption | The power consumption of the instrument is about 12V/1W |
Sound Output | buzzer |
Protocol | Standard RS485 Modbus-RTU protocol and device master/slave transmission channel support |
Main material | ABS+PC material |
storage temperature | -20 to 70°C |
Operating temperature | -10 to 50°C |
Protection level | IP65 |
size | 175mm*140mm*49mm(length×width×height) |
weight | About 0.5KG |

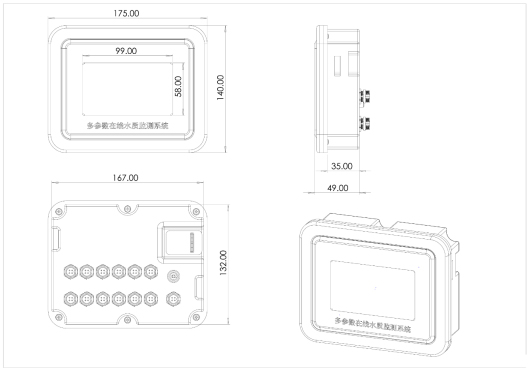

5. Multi-parameter water quality product size
Multi-parameter water quality Dimensions
6. Multi-parameter water quality sensor configuration (optional)
Serial number | name | Measuring range | Measuring principle | measurement accuracy | Is it standard? | Remark |
1 | temperature | 0~50℃ | High-precision digital sensor | ±0.3℃ | ✔ | |
2 | pH | 0~14 (ph) | Electrochemistry (Salt Bridge) | ±0.1PH | ✔ | |
3 | ORP | -1500mv~1500mv | Electrochemistry (Salt Bridge) | ±6mv | ||
4 | Conductivity | 0~5000uS/cm | Contact electrode method | ±1.5% | ✔ | |
5 | Turbidity | 0~40NTU (low turbidity) | Scattered light method | ±1% | Low turbidity can be customized | |
0~1000NTU (medium turbidity) | Scattered light method | ±1% | Medium turbidity can be customized | |||
0~3000NTU (high turbidity) | Scattered light method | ±1% | Default | |||
6 | Dissolved oxygen | 0~20mg/L | Fluorescence lifetime method | ±2% | ✔ | |
7 | Ammonia nitrogen | 0~100mg/l | Ion Selective Electrode Method | ±1mg | ✔ | |
8 | cod | 0~500mg/L | UV254 absorption method | ±5% | ||
9 | Suspended Matter | 0~2000mg/L | Scattered light method | ±5% (depending on sludge homogeneity) | ||
10 | Chlorophyll | 0~400ug/L | Fluorescence method | R2>0.999 |
