Small automatic water quality monitoring system

1.Small automatic water quality monitoring system product introduction

Small automatic water quality monitoring system adopts integrated design, small footprint, easy to move, transport and installation, and can monitor a variety of parameters.The Small automatic water quality monitoring system takes the water quality sensor as the core. It monitors and analyzes various water quality parameters and transmits the collected data to the platform end, so as to remotely view the real-time data and remotely manage the equipment. At the same time, it can effectively alarm and intelligently process the water quality change trend. It can also express the comprehensive index of water quality according to the correlation combination between the real-time water quality parameters, and provide customers with a large amount of objective, detailed and effective data, which is of practical significance for solving the problem of water pollution.

At present, the FT-LSZ03 water quality monitoring station developed and produced by Shandong Fengtu Internet of Things Technology Co., Ltd. is widely used in aquaculture, sewage treatment, reservoirs, rivers and other places

2. Small automatic water quality monitoring system product features

1. Low power collector: static power consumption is less than 50uA

2. Standard GPRS networking, support for extended Bluetooth and wired transmission

3.Support modbus485 sensor expansion

4. Solar charging management MPPT automatic power point tracking

5.1.5m carbon steel support

6. SMS alarm, send SMS to the designated mobile phone after exceeding the limit

7. ABS material protective box, corrosion-resistant, anti-oxidation, waterproof grade IP66

8. No additional procedures are required, such as wiring, station building, reagent preparation, and personnel post-maintenance. Compared with the national standard water quality monitoring station, it is more convenient to use and install, and the observation data is more intuitive

9. The system can integrate integrated meteorological environment monitoring data

3. Small automatic water quality monitoring system system composition

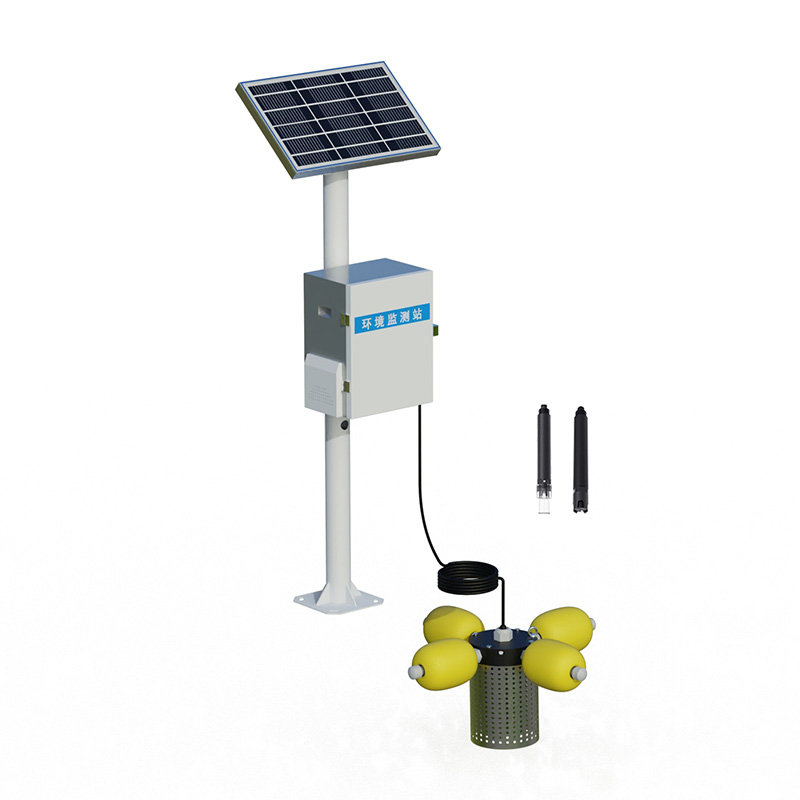

Small automatic water quality monitoring system is mainly composed of basic support (including poles, ground cages, ABS anti-corrosion and corrosion-resistant protective box), power supply system, monitoring host, water quality sensor and cloud platform.

4. Technical parameters of Small automatic water quality monitoring system

5. Introduction to Small automatic water quality monitoring system cloud platform

1.CS architecture software platform, supports direct observation via mobile phone and PC browser, no need to install additional software.

2.Support multiple accounts and multiple devices login

3.Support real-time data display and historical data display dashboard

4. Cloud servers and cloud data storage are stable and reliable, easy to expand, and load balanced.

5.Support SMS alarm and threshold setting

6.Support map display and view device information.

7.Support data curve analysis

8.Support data export in table format

9.Support data forwarding, HJ-212 protocol, TCP forwarding, http protocol, etc.

10. Support data post-processing function

11.Support external running of javascript scripts
