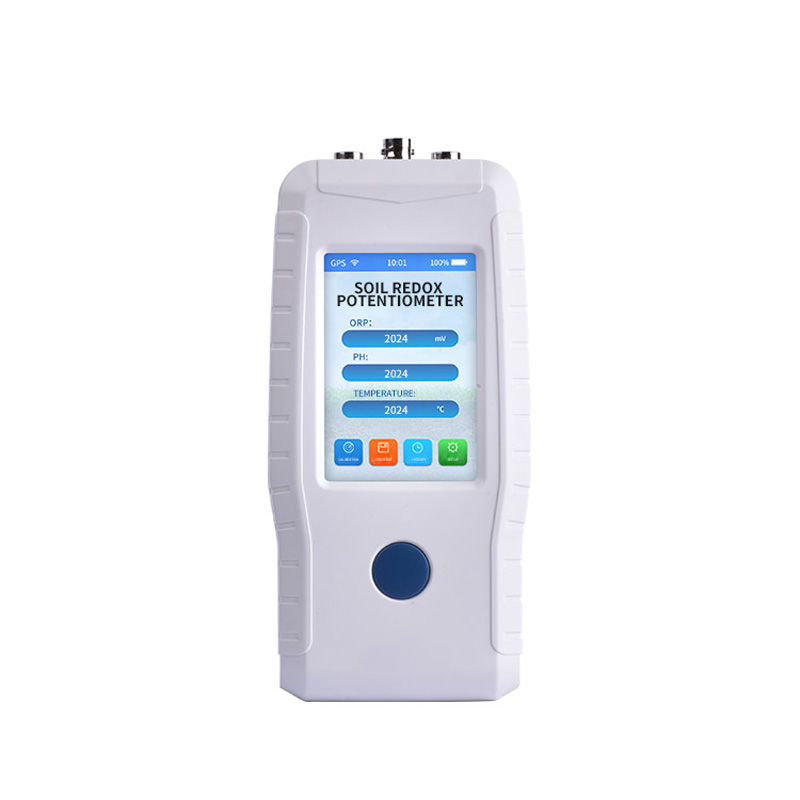

Soil Redox Potentiometer

Soil Redox Potentiometer

Model:FT-YH

Brand:fengtu

Soil Redox Potentiometer is used to measure REDOX potential. It can be widely used in field measurement, flow monitoring and field rapid measurement.

Product details

1.Soil Redox Potentiometer Product Introduction

Soil Redox Potentiometer is used to measure REDOX potential. It can be widely used in field measurement, flow monitoring and field rapid measurement.Soil Redox Potentiometer is mainly used for on-site in-situ testing of the redox potential of fresh or moist soil, the measurement of water (medium) redox potential, pH, temperature and other data. It complies with the standard of "HJ746-2015 Potentiometric Method for Determination of Soil Redox Potential".

Soil redox potential (ORP/Eh) has been used for a long time as a comprehensive indicator of soil environmental conditions. It characterizes the relative degree of oxidizability or reducibility of the medium, has an important influence on the chemical and biological processes of the soil, and is an important parameter for understanding the properties and processes of the soil. The higher the redox potential, the stronger the oxidizability, and the lower the redox potential, the stronger the reducibility. A positive potential indicates that the solution shows a certain oxidizability, and a negative potential indicates that the solution shows a certain reducibility.

Oxidation reduction potential (ORP) is one of the most important water quality indicators. Although it cannot independently reflect the quality of water, it can integrate other water quality indicators to reflect the ecological environment in aquatic systems. 1. Industrial wastewater treatment: The oxidation reduction system used in water treatment is mainly the reduction of chromic acid and the oxidation of cyanide; 2. Water disinfection and application: Oxidation reduction potential can measure the disinfection effect of swimming pool water, mineral water and tap water. Because the bactericidal efficiency of Escherichia coli in water is related to the oxidation reduction potential, the oxidation reduction potential is a reliable indicator of water quality; 3. Aquaculture industry: Oxidation reduction potential can reflect the concentration of certain inorganic substances in water, the state of aquatic organisms, and the oxygen content in water, reflecting the macroscopic oxidation reduction of water quality, and is a comprehensive indicator for judging water quality.

2. Soil Redox Potentiometer Product Parameters

(1) ORP: measurement range -2000mV to 2000mV

Resolution 0.1mV

Error range ±10mV

(2) PH: Measurement range 0-14 PH

Resolution 0.1PH

Error range: 0.05PH

(3) Temperature: Measurement range 5-60℃

Resolution: 0.1℃

Error range ±1℃

(4) External power supply: DC 5V /2A

(5) Rated power: 3W

(6) Battery capacity: 6000mAh

3. Soil Redox Potentiometer Product Features

ARM Cortex-M3 architecture processor, Android system.

Standard Type-c charging, you can directly use the mobile phone charger to charge the device.

Continuous detection, data collection time can be set in minutes.

Support calibration

With automatic temperature compensation function, supports manual temperature compensation

Equipped with special ORP electrode, reference electrode and stainless steel hollow rod, which can be directly inserted into the soil

With reading lock function (automatic reading), the measurement result is the final result, no conversion and calculation are required

The test results can be uploaded.

The test results can be exported to Excel and viewed by connecting to a computer.

The test result storage capacity is 5 million, supporting data storage and review.

Support Wi-Fi, test results are directly transmitted to the supervision platform

3.5-inch color touch screen provides better user experience.

With automatic backlight and automatic shutdown functions;

P65 protection level.

4. Soil Redox Potentiometer Configuration List

Serial numbernamequantityunit
1Aluminum Box1indivual
2Host1tower
3ORP Electrode1set
4Reference electrode1set
5PH electrode (optional)1set
6Calibration accessories1set
7Soil probe1set
8Saturated potassium chloride solution 100ml1bottle
9ORP standard solution 220mv±15mv1bottle
1050ml plastic beaker1indivual
11charger1indivual
12Type-c data cable1root
13manual1share
14Certificate1share
15Warranty Card1share
