Agricultural monitoring equipment

1.Agricultural monitoring equipment system background

Agricultural monitoring equipment is an online monitoring platform integrating pest situation, meteorology and moisture monitoring.With the development of smart agriculture, technologies such as the Internet, big data, and artificial intelligence have gradually been applied to all aspects of agricultural production, greatly improving the allocation and utilization efficiency of various production factors such as labor and capital.

With the help of the Internet of Things, smart agriculture has built an agricultural production system that integrates environmental monitoring and precise regulation. It can monitor and supervise different agricultural production environments and objects, detect the physical parameters of the environment through sensor equipment, and conduct real-time dynamic monitoring of production environment conditions such as soil, insect conditions, weather, seedlings, spores, etc., so that they meet the agricultural production environment standards. The application of these new technologies will greatly improve the quality of agricultural products, make them meet market demand, and achieve effective docking between supply and demand, and promote the refined, efficient and modern development of agricultural production. At the same time, the system is equipped with a wind-suction insecticidal lamp, which can kill insects efficiently and is green and pollution-free.

2. Agricultural monitoring equipment system composition

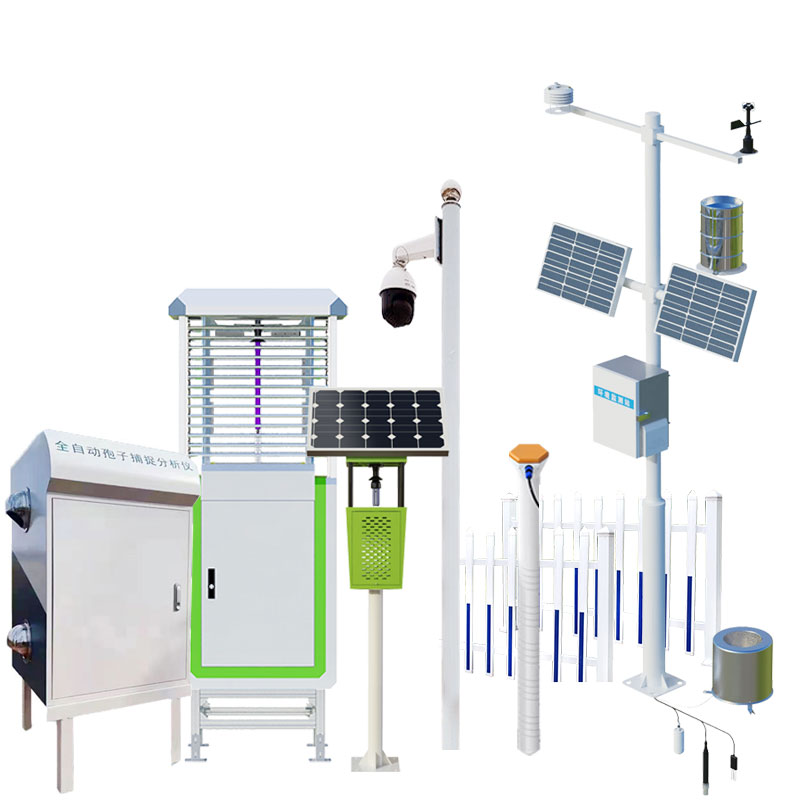

The system consists of a tubular soil moisture monitor, an insect monitoring lamp, a weather station, video surveillance, a fence, a wind-suction insecticidal lamp, a spore capture device, and a cloud platform.

The system can monitor and manage the soil temperature, soil moisture, pest and disease conditions (types and numbers of pests and diseases, etc.), climate conditions (air temperature, humidity, rainfall, light intensity, carbon dioxide, wind speed and direction and other environmental parameters), crop growth, and spore number of agricultural fields. The data can be uploaded to the monitoring and reporting platform via GPRS/4G or network port. Managers can remotely view the data and trends of various environmental parameters in real time, saving manpower, and make corresponding adjustments based on data feedback to ensure good growth of crops and help agricultural production.

3. Introduction to Agricultural monitoring equipment platform

1. The agricultural four-situation monitoring platform is an online monitoring platform that integrates insect conditions, weather conditions, soil moisture conditions, seedling conditions, and spore monitoring. Insect condition monitoring has the functions of automatic identification of AI pests, remote real-time viewing of insect conditions, online analysis of insect conditions, automatic identification of pest species, regional insect condition statistics, analysis of insect condition change trends, and equipment monitoring. Meteorological monitoring has the functions of remote real-time viewing of weather conditions and online analysis of historical meteorological data. Soil moisture monitoring has the functions of remotely obtaining soil moisture conditions (such as soil temperature, humidity, water, and PH) data and online analysis of historical soil moisture conditions. Seedling condition monitoring can view crop growth images in real time. The automatic spore capture instrument uses optical, electrical, and numerical control technologies, and automatic microscopic imaging to automatically shoot the captured pathogen spores around the clock. The intelligent spore capture equipment includes high-power optical microscopic imaging systems, precision limit technology, automatic intelligent focusing fusion technology, Internet of Things transmission control technology, and other technical means, and uploads spore images in the air to the designated agricultural cloud platform in real time.

2. The monitoring homepage displays menu information such as equipment list, large-screen visualization, map display, etc. It also displays soil moisture, insect conditions, weather monitoring icons and equipment operating status.

3. Pest monitoring includes five parts: real-time pest situation, pest situation analysis, pest types, real-time status, and operation records.

4. Insect situation analysis: You can query pictures within the selected time range.

5. Insect statistics include regional statistics and trend analysis.

Regional analysis: Select an area, select a time, and click Query to query the number of pests in the insect equipment in the selected time period.

Trend analysis: Select an area, select a time, and click Query to find out the curve changes in the number of each pest species in the area.

6. Meteorological monitoring includes real-time data and historical data.

7. Soil moisture monitoring includes real-time data and historical data.

8. System management includes four parts: device management, user management, area management, and system log.
