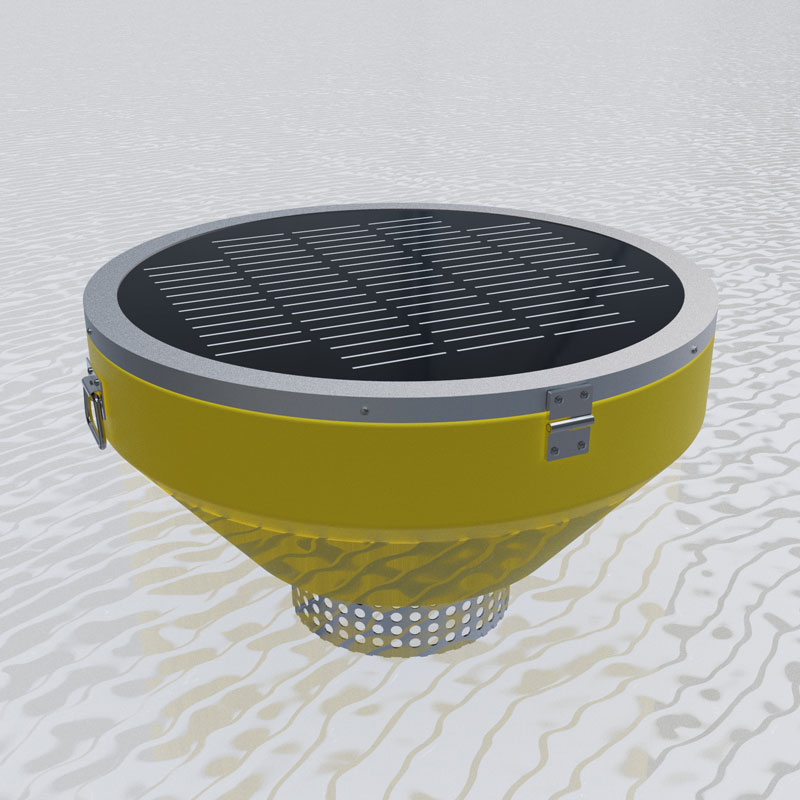

IoT Water Buoy for Water Quality Monitoring
Model:FT-SFB06
Brand:fengtu
Related products
Product details
1.Introduction to IoT Water Buoy for Water Quality Monitoring
1.IoT Water Buoy for Water Quality Monitoring iot water buoy for water quality monitoring integrates a variety of water quality sensors and uses Internet of Things technology for data transmission.IoT Water Buoy for Water Quality MonitoringSFB adopts an enhanced integrated cone structure to increase equipment stability and durability, which is more in line with floating body engineering.
It can measure the hydrological, water quality and meteorological parameters in lakes or river basins in real time. The system integrates data collection and transmission, and has the function of SMS alarm for exceeding the standard and automatic light sensing. It has the characteristics of multiple measurement parameters, high measurement accuracy, large storage capacity, convenient networking and stable operation. The buoy adopts an unattended intelligent control system to complete the data collection and data transmission of multiple sensors; the solar panels and large-capacity batteries form a solar power supply system to ensure the power required for the system to work in the field for a long time; the buoy body is made of ultra-high molecular polyethylene material, which has good anti-corrosion ability, prevents biological attachment, does not fade, has strong anti-collision ability, anti-lightning, non-magnetic and other characteristics, and is suitable for complex hydrological and hydrodynamic conditions such as reservoirs.
2.SFB06 buoy is composed of water quality sensor (water temperature, conductivity, PH, dissolved oxygen, ammonia nitrogen, turbidity), data acquisition instrument, communication system, power supply system, overall bracket, water quality monitoring platform. At the same time, it can expand multiple water quality elements such as chlorophyll and COD. The data acquisition instrument has data acquisition, real-time clock, data timing storage, parameter setting and standard 2G/4G (GPRS) communication functions.
2. Features of IoT Water Buoy for Water Quality Monitoring
1. Easy to deploy: various types of probes are highly integrated and easy to install; free cloud platform services are provided, and the system can be quickly put online;
2. Easy maintenance: After the equipment is installed, it can work automatically without manual supervision. The normal operation of the equipment can also be ensured by remote monitoring;
3. Easy to expand: sensor probes all use a unified communication protocol, which can quickly connect to the original equipment and quickly expand monitoring parameters;
4. Low power consumption: The device can run for a long time in a low power consumption state, increasing the convenience of device use;
5. Real-time: The data monitored by the equipment is transmitted to the cloud platform in real time to improve the timeliness of environmental data feedback.
3. IoT Water Buoy for Water Quality Monitoring Technical Parameters
1. Subject parameters
product name | describe |
Environmental water quality monitoring buoy |
Real-time online monitoring of multiple parameters can be achieved. Battery charge monitoring can be realized. It can realize cloud platform data monitoring, data push, Data storage and alarm function; data wireless transmission function. The peak power consumption is 5W; the sensor power consumption is about 0.25W per sensor. Overall dimensions: 800*350mm. Maximum float diameter 790mm Weight: 26kg |
Core components | describe |
Collector data collection | Reliable operation, anti-interference, can integrate multiple RS485/MODBUS-RTU slave devices |
Collector data output | 1 channel RS485/JSON protocol output |
Battery | Lithium battery 12VDC, 20AH (default) |
solar panel | 18V/55W (default) 800mm round solar panel frame aluminum alloy custom |
Power supply capability | Customized selection; intermittent operation for more than 5 days on rainy days |
Position indicator (optional) | Warning light;GPS positioning; |
Monitoring Platform | Cloud platform; mobile phone/computer multi-terminal login |
protecting mask | 304 stainless steel filter cartridge protective cover |
Floating body | Diameter 790mm, cone float*1 integrated engineering plastic |
Main parameters of optional sensors
Serial number | name | Measuring range | Measuring principle | measurement accuracy | Is it standard? | Remark |
1 | temperature | 0~50℃ | High-precision digital sensor | ±0.3℃ | ✔ | |
2 | pH | 0~14 (ph) | Electrochemistry (Salt Bridge) | ±0.1PH | ✔ | |
3 | ORP | -1500mv~1500mv | Electrochemistry (Salt Bridge) | ±6mv | ||
4 | Conductivity | 0~5000uS/cm | Contact electrode method | ±1.5% | ✔ | |
5 | Turbidity | 0~40NTU (low turbidity) | Scattered light method | ±1% | Low turbidity can be customized | |
0~1000NTU (medium turbidity) | Scattered light method | ±1% | Medium turbidity can be customized | |||
0~3000NTU (high turbidity) | Scattered light method | ±1% | ✔ | Default | ||
6 | Dissolved oxygen | 0~20mg/L | Fluorescence lifetime method | ±2% | ✔ | |
7 | Ammonia nitrogen | 0~100mg/l | Ion Selective Electrode Method | ±1mg | ✔ | |
8 | cod | 0~500mg/L | UV254 absorption method | ±5% | Default hair, cod turbidity integration | |
Turbidity | 0~400NTU | Scattered light method | ±1% | |||
9 | Suspended Matter | 0~2000mg/L | Scattered light method | ±5% (depending on sludge homogeneity) | ||
10 | Chlorophyll | 0~400ug/L | Fluorescence method | R2>0.999 |

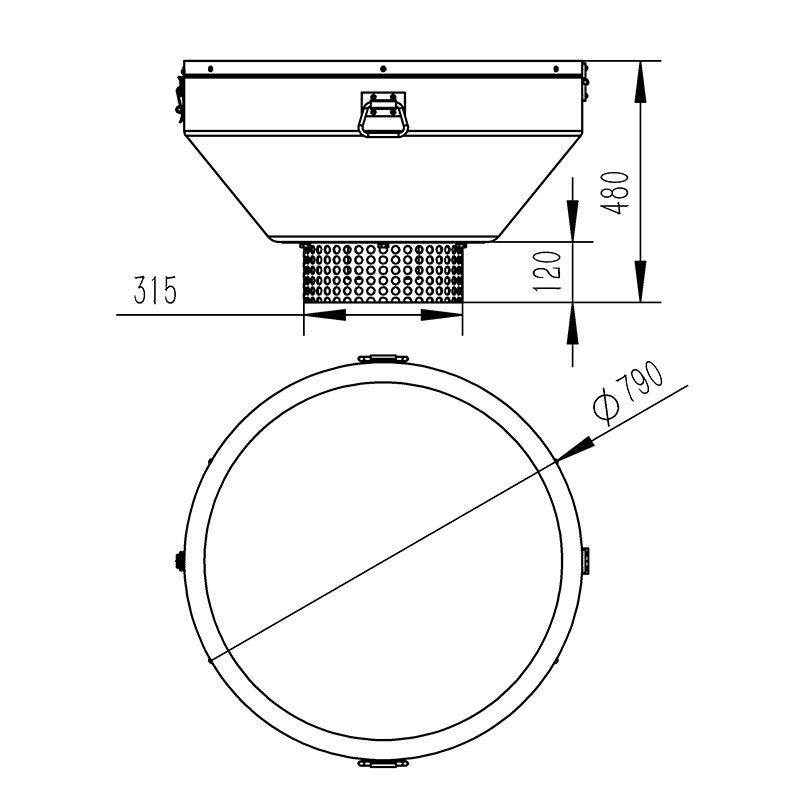

4. IoT Water Buoy for Water Quality Monitoring Product Dimensions
5. IoT Water Buoy for Water Quality Monitoring Equipment Installation Requirements
1. Stay away from high-power radio transmitters
2. Stay away from high-voltage transmission lines and microwave radio transmission channels
3. Try to be close to the data transmission network
4. Stay away from strong electromagnetic interference
6. Introduction to IoT Water Buoy for Water Quality Monitoring Cloud Platform
1.CS architecture software platform, supports direct observation via mobile phone and PC browser. No additional software installation is required.
2.Support multiple accounts and multiple devices login
3.Support real-time data display and historical data display dashboard
4. Cloud server. Cloud data storage, stable and reliable, easy to expand, and load balanced.
5.Support SMS alarm and threshold setting
6.Support map display and view device information.
7.Support data curve analysis
8.Support data export in table format
9.Support data forwarding, HJ-212 protocol, TCP forwarding, http protocol, etc.
10. Support data post-processing function
11.Support external running of javascript scripts
