1. Drink Water Monitor Product Introduction

1. Overview

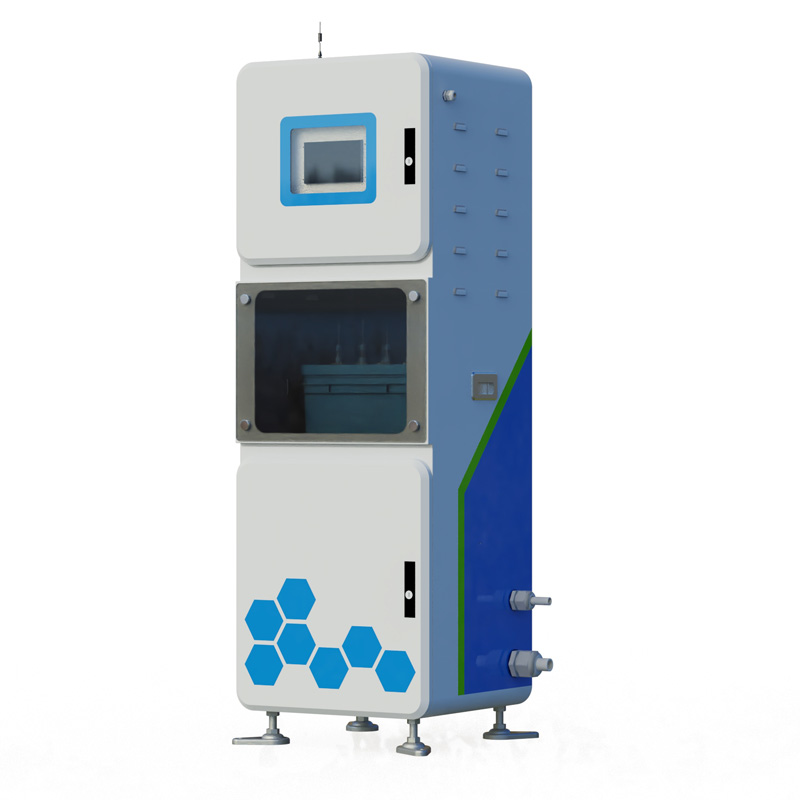

Drink Water Monitor is a special instrument for the detection of drinking water quality. It can measure multiple water quality indicators at the same time and evaluate the water quality in all aspects.QSZ03Drink Water Monitor is a comprehensive sensor acquisition, display and analysis system based on Internet of Things technology. It is a water supply quality monitoring microsystem, consisting of a steady flow exhaust unit, an analysis and testing unit, a system control unit and a remote communication unit, and has complete power supply, lightning protection, network communication and other functions.

2. Product positioning

QSZ03Drink Water Monitor has automatic monitoring function. The main monitoring items of the integrated extractable micro water quality automatic monitoring station are: PH, temperature, turbidity, conductivity, dissolved oxygen, COD, ammonia nitrogen, suspended solids, total nitrogen, etc. It adopts highly integrated technology and realizes automatic water quality monitoring function in one cabinet.

Drink Water Monitor can be widely used for online water quality monitoring in rivers, urban or village water plants, water supply networks, secondary water supply, user terminals, indoor swimming pools, large water purification equipment and direct drinking water. It is an indispensable online analysis equipment in the fields of water plant production process control, water conservancy and water affairs management, and health supervision.

3. Functions and features

GPRS network 4G

Support extended RJ45 networking

Support extended sensor remote transmission

Support LED screen display 7.0 inch touch control screen

Supports extended Android screen display and storage

Expanded Android screen supports 2G data storage and USB flash drive data export

Support one RS485 modbus-RTU protocol slave

Support multi-channel RS485 modbus-RTU sensor expansion

Supporting IoT data display, storage and analysis platform

The platform supports TCP short link, HTTP protocol and other protocol data forwarding

2. Drink Water Monitor System Composition

The water supply quality monitoring microsystem consists of a power supply unit, a water pump control unit, an analysis and testing unit, a display unit, a water pump unit, a remote communication unit and an integrated box main unit.

1. Power supply unit

Power supply: AC220V.

2. Water pump control unit

Intelligent self-priming pump Maximum head: 25m Opening flow: 1.8m3/h

3. Analysis and testing unit

The analytical test unit is mainly composed of pH, dissolved oxygen, conductivity, turbidity, ORP, and temperature sensors, which are fixed to the flow cell by threads or tight fittings. The main parameters of the sensors are as follows:

Note: The sensor cannot be installed upside down or horizontally, and must be installed at an angle of at least 15 degrees. The working environment of the above water quality sensor is 0-50℃, <0.3Mpa

4. Display unit

The multi-parameter monitor is installed on the cabinet door to collect, analyze, display, communicate and save data.

Android version: 4.4.2 · CPU: Quad-core Cortex™-A7 · RAM/ROM: 512M/4G · Screen: 7-inch capacitive touch screen · Power supply: 12V/1A · Support U disk expansion, support memory card expansion

5. Remote communication

RS485 interface MODBUS-RTU communication protocol Factory device address 6 decimal Support 03 function code to read data

6. Equipment box main unit
