instrument to measure rainfall

instrument to measure rainfall

Model:FT-Y1

Brand:fengtu

instrument to measure rainfall Instrument to measure rainfall is a precision scientific tool specifically used to measure and record precipitation.

Product details

1.Instrument to measure rainfall product overview

instrument to measure rainfall Instrument to measure rainfall is a precision scientific tool specifically used to measure and record precipitation.The instrument to measure rainfall uses PVDF piezoelectric film as a rain sensing device and uses an embedded AI neural network to distinguish raindrop signals to avoid false triggering due to interference such as grit, dust, and vibration.

It is widely used in meteorological environment monitoring, hydrological and water conservancy comprehensive monitoring stations, traffic road monitoring, agriculture, forestry, wind power generation and other relevant departments to remotely measure precipitation, precipitation intensity, precipitation start and end time.It is used in hydrological automatic measurement and reporting systems and automatic field measurement and reporting stations for the purpose of flood control, water supply scheduling, and water situation management of power stations and reservoirs.

2.Features of instrument to measure rainfall

1.Integrated design, exquisite appearance

2.No mechanical parts, no exposed parts, can filter similar signals introduced by environmental factors such as leaves, dust, insects, etc.

3.High measurement accuracy, wide range, good stability, low power consumption, and strong resistance to external interference

4.Can work around the clock, not affected by weather changes, accurate to the second rainfall duration monitoring

5.Maintenance-free, the raindrop contact surface is an arc-shaped design structure, and rainwater is not stored.

6.After installation, it has automatic level calibration function, no need for on-site calibration

7.Small size, easy to carry, disassemble and install

3.Instrument to measure rainfall technical parameters

Measuring range 0-4mm/min
Measurement accuracy ≤±4%
Resolution 0.01mm
Sampling frequency <1S
Communication interface RS485
Communication Protocol MODBUS
power supply DC12V
Power consumption 0.12W
Operating temperature -40~85℃
Operating humidity 0~100%RH

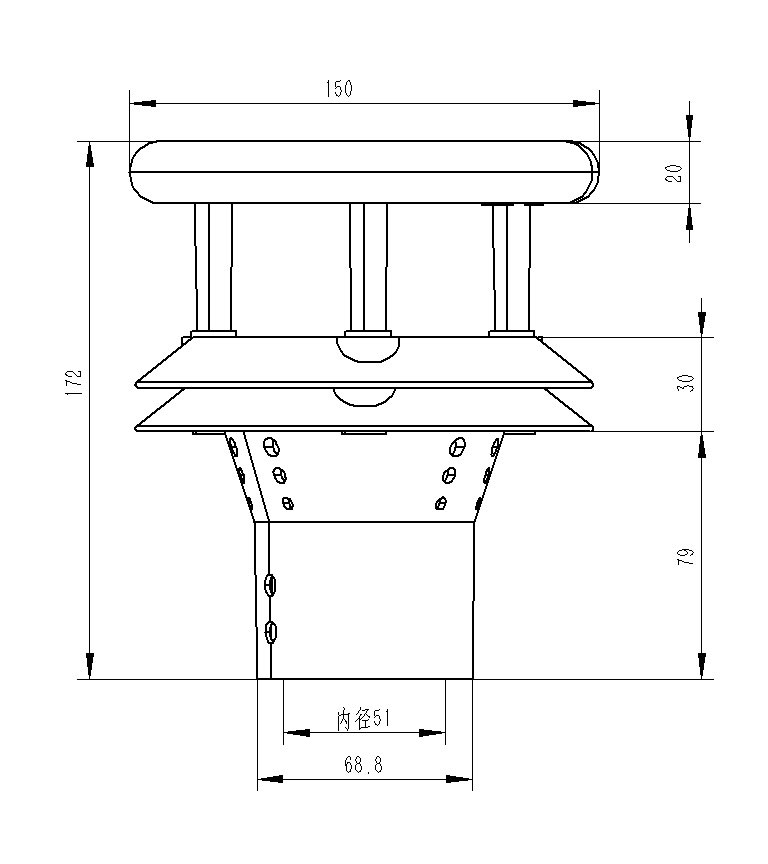

IV.Instrument to measure rainfall product size diagram

Instrument to measure rainfall product size diagram

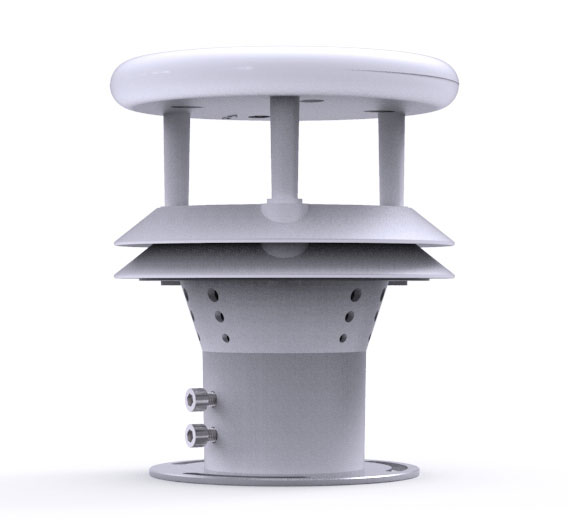

5.Instrument to measure rainfall product structure diagram

Instrument to measure rainfall product structure diagram

6.Notes on instrument to measure rainfall

1.The sensor should be within a radius of 1 meter horizontally without any obstruction to avoid the impact of water droplets splashing

2.The sensor should be installed away from strong mechanical vibration sources

3.The area above the sensor should be open, raindrops should fall directly onto the sensor, and secondary dripping and continuous water flow impact should be avoided.
