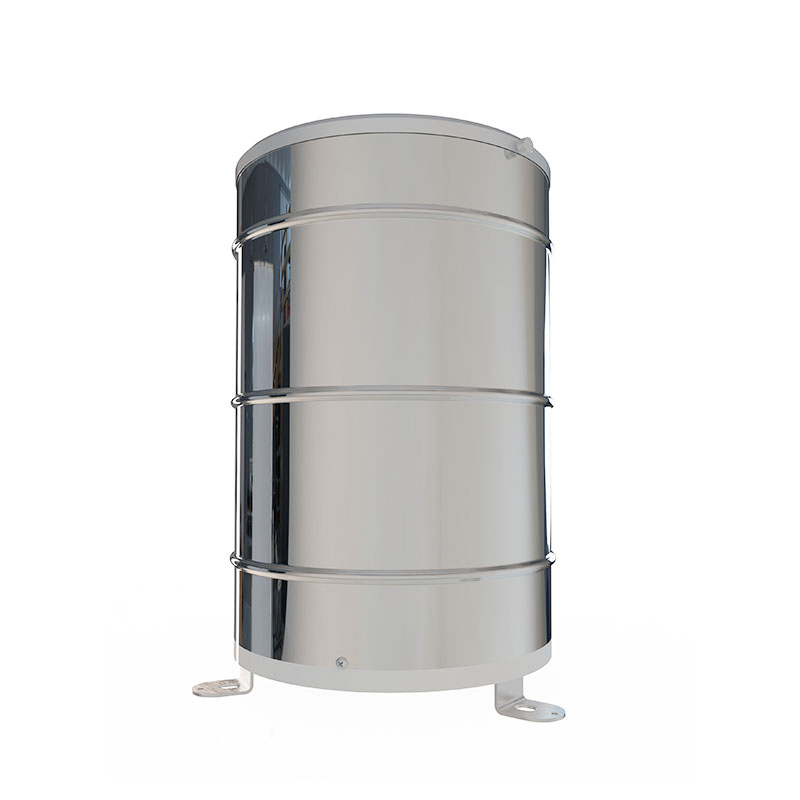

rainfall measuring equipment
Model：YL1
Brand：fengtu
Get a Free QuoteRelated products
Product details
1. Technical indicators of rainfall measuring equipment
rainfall measuring equipment is a tool used to measure rainfall，It measures rainfall by calculating the weight of collected water and can provide accurate rainfall data.
1. Power supply: DC12V
2. Power consumption: 0.02W
3. Working environment: 0~50℃
4. Communication interface: RS485
5. Working current: 2mA DC12V
6. Shortest data interval: 0.5S
2. Parameters of rainfall measuring equipment
| Rain gauge cylinder diameter | Φ200mm |
| Operating temperature | 0～50℃ |
| Working humidity | <95% (no condensation) |
| error | ≤±2% |
| Resolution | 0.2mm |
| Rainfall intensity range | 0mm～4mm/min, the maximum rainfall intensity allowed is 8mm/min |
| Heavy rain intensity range | 0～10mm/min, the maximum rainfall intensity allowed is 15mm/min |
| output method | Modbus485 |
3. Rainfall measuring equipment product size drawing
