Wheat stripe rust monitor

1.Introduction to Wheat stripe rust monitor

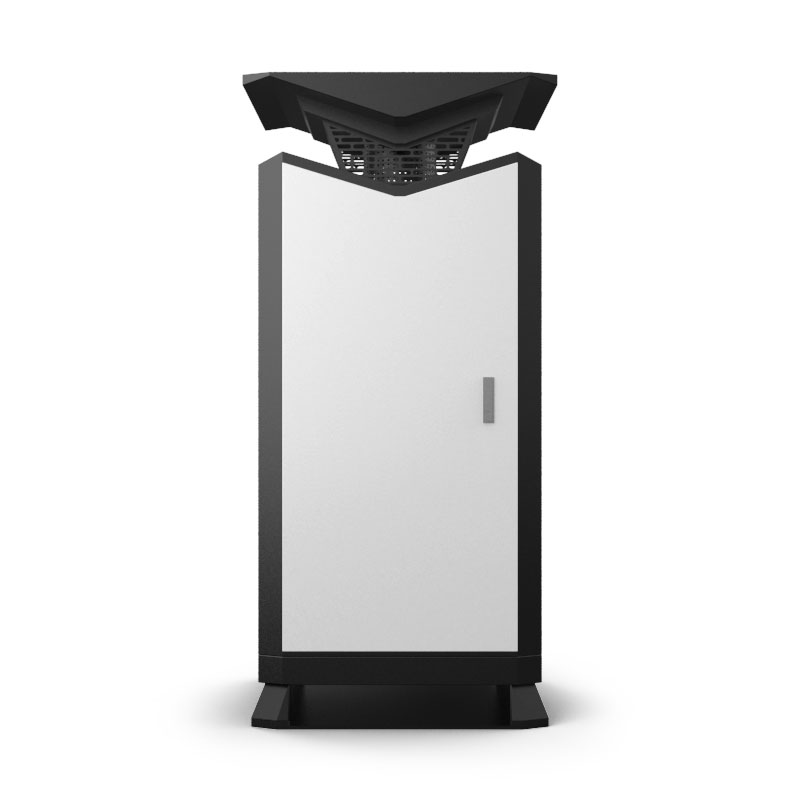

Wheat stripe rust monitor is a device that collects the growing environment of wheat growing area and monitors and identifies stripe rust in wheat field.Wheat stripe rust mainly harms leaves and leaf sheaths, destroys the synthesis of chlorophyll, hinders grain filling, and causes wheat yield reduction or even total crop failure.Wheat stripe rust monitor is a new type of stripe rust monitoring equipment that integrates meteorological monitoring and intelligent spore capture microscopic imaging.The system collects the growth environment of the wheat planting area and predicts the incidence of wheat stripe rust according to the system's built-in model.At the same time, the built-in stripe rust spore capture device collects the spore inventory and diffusion dynamics of stripe rust, providing an unmanned and visual verification method for the occurrence of stripe rust.The equipment is mainly composed of a meteorological information collection device, a spore capture device, a spore carrier device, an image acquisition device, a network transmission module, a power supply and a lightning protection system.It realizes remote automatic capture of stripe rust spore information, automatic rotation of the glass slide, automatic collection, automatic microscopic imaging photography, automatic uploading of image data, and automatic operation.At the same time, environmental meteorological information and stripe rust disease pictures are uploaded to the designated network platform in real time to form a dynamic comparison database of meteorological environmental information and spore occurrence conditions, providing a large amount of data support for studying the relationship between stripe rust occurrence trends and meteorology.It provides services for modern agriculture, meets the needs of disease prediction and specimen collection, and prevents and controls the occurrence of diseases in a timely manner.

2.Wheat stripe rust monitor performance characteristics

1.Meet the safety and technical requirements for fixed spore traps in GB/T 24689.1-2009 (Mechanical spore traps for plant protection) standard.

2.Stainless steel spray-coated shell, 15-inch ultra-large high-definition capacitive touch screen, Windows operating system, with good human-computer interaction interface.

3.It has a 12-megapixel, 1,000-fold magnification microscopic imaging system that can automatically take high-definition microscopic photos of captured pathogen spores.The clarity of the captured images can meet the requirements for manual identification of pathogen spore types.

4.The equipment automatically captures pathogen spores 24 hours a day, automatically takes pictures of the captured pathogen spores, and automatically selects the best pictures to upload.

5.The fully intelligent automatic microscopic imaging system can automatically adjust the camera's shooting angle to achieve all-round, no-dead-angle imaging of the slide.

6.It can realize the whole process of automatic operation from glass slide loading, pathogen spore capture, microscopic imaging to glass slide recovery.

7.Equipped with extra-long special glass carrier tape, which can meet the usage of 600 days.

8.It has multiple working modes, and the automatic operation mode, timing operation mode and debugging operation mode can be switched freely.

9.Built-in Beidou/GPS positioning function, which can upload device information to the platform in real time, and view current device parameters on the map.

10.It can monitor multiple stripe rust monitoring indicators such as air temperature and humidity, atmospheric pressure, wind speed, wind direction, rainfall, etc.in real time, and predict the occurrence of stripe rust through the stripe rust model inside the system.

11.The equipment's feeding, collection, microscopic imaging, recycling and other actions can be controlled through the platform and APP.

12.Remote upgrade and maintenance: The latest program can be directly updated remotely and automatically without the need for manual on-site replacement.

13.Multiple data access methods: You can access the platform through PC, view data through mobile APP, and control device actions.

14.4G communication module is standard, and 5G communication module is optional.

15.With fault self-diagnosis mechanism, equipment fault information can be reported to the remote server in real time.After-sales personnel can view equipment fault information through the platform.

16.It can be equipped with an intelligent solar power supply management system to collect key information such as equipment power consumption, solar power generation, battery voltage, equipment load, current, etc.and upload it to the server (optional).

17.It has a traffic alarm function.The device can be bound to its traffic card through the platform, and alarm information will be automatically pushed when the traffic is abnormal.

3.Wheat stripe rust monitor technical parameters

1.Material: GB32080-92 stainless steel;

2.Data transmission mode: 4G/5G network (optional), wired network;

3.Power supply voltage: AC 220V±5%;

4.Power: 200W;

5.Timing: 5 time periods can be set;

6.Carrier tape: length: 150M width: 0.025M, can meet 600 days of use;

7.Air collection outlet wind speed: 0.3～5 m/s;

8.Insulation resistance: ≥2.5MΩ;

9.Air temperature: -30～80℃, accuracy: ±0.3℃

10.Air humidity: 0~100%, accuracy: ±3%

11.Wind speed: 0~30m/s, accuracy: ±0.1m/s

12.Wind direction: 0-359° Accuracy: ±1°

13.Rainfall: 0~4mm/min, error: ±0.1mm

14.Atmospheric pressure: 0-1100hpa, accuracy: 0.1hpa
