Corn borer monitor

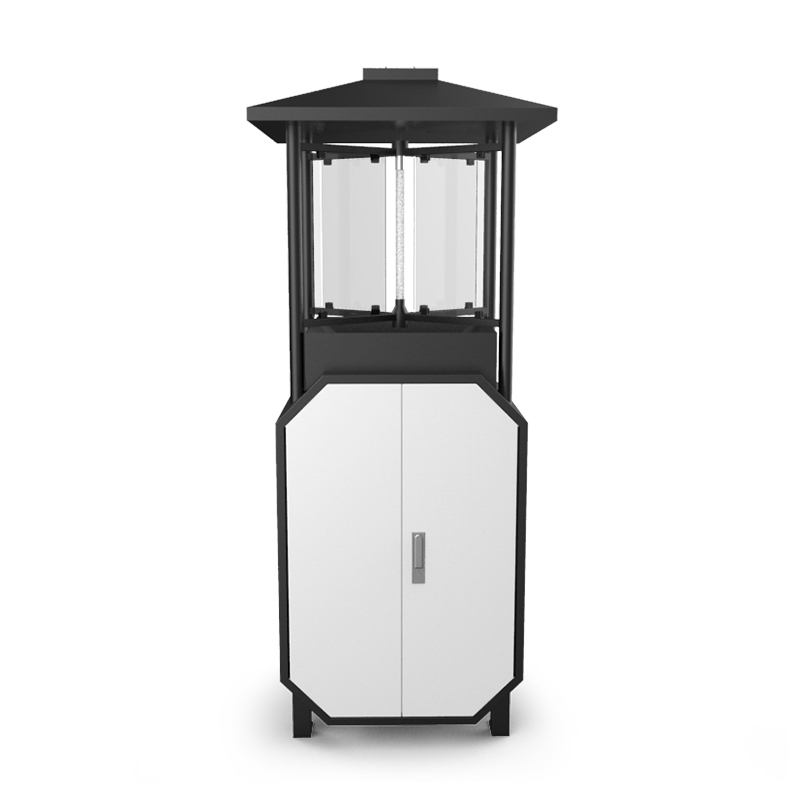

Corn borer monitor

Model:FT-YM2

Brand:fengtu

Corn borer monitor can automatically complete system operations such as attracting insects, killing insects, photographing, collecting and draining water without supervision.

Product details

1.Corn borer monitor introduction:

Corn borer monitor can automatically complete system operations such as attracting insects, killing insects, photographing, collecting and draining water without supervision.Corn borers harm the leaves, stems, female ears, male ears and other parts of corn, resulting in reduced corn production.Corn borer monitor is specially developed for agricultural and forestry insect monitoring.The lamp uses modern optical, electrical and numerical control technologies to realize functions such as automatic far-infrared processing of insect bodies, automatic photography, and automatic operation of the entire lamp.In the absence of human supervision, it can automatically complete system operations such as attracting insects, killing insects, taking pictures, collecting, and draining.It can add multiple sensor interfaces such as wind speed and direction, ambient temperature and humidity, and light, and can upload data wirelessly to monitor the relationship between the environment and pests and diseases.It is widely used in field agricultural corn planting.

2.Corn borer monitor performance characteristics:

1.The overall structure adopts stainless steel spray-coated shell design.

2.Adopt optical, electrical and numerical control technology for automatic control.

3.7-inch color Chinese LCD capacitive touch screen operation; can be set and controlled in different time periods, both automatic and manual photography are possible; Android system intelligent control, ambient temperature, humidity and time display.

4.The detection lamp has a built-in 1200W pixel image acquisition device, which can collect pictures of insects on the insect receiving tray in real time through the camera.

5.Spread the insect bodies evenly on the insect receiving tray, and vibrate the trapped insect bodies to disperse and level them.

6.The instrument has a built-in grating counting device (not image recognition counting), which can record the number of insects in real time and upload it to the platform.

7.It has an automatic cleaning function, which can sweep the insect bodies away from the shooting area and put them into the insect body collection bin.

8.Various data and alarm parameters of the instrument can be uploaded to the remote server through the network, which is convenient for maintenance and management.

9.Built-in GPS and Beidou positioning functions, view equipment site and other data on the map.

10.The platform can be used to control the switch of the insect attractant light, the switch of the heating tube, the emptying of the insecticide chamber and the drying chamber, the switch of the vibration motor and other related functions.

11.The upper and lower layers of far-infrared insect treatment chambers can more effectively complete the insect killing and drying work.

12.Temperature control of far-infrared insect processing chamber: the temperature reaches 85±5℃ after 15 minutes of operation, and the processing time can be adjusted arbitrarily.

13.The mortality rate of far-infrared insect treatment shall not be less than 98%, and the insect integrity rate shall not be less than 95%.

14.Multi-wavelength insect attractant light source, the insect attractant lamp power is greater than 20W.

15.Light control: automatically turn on the light at night and automatically turn off the light during the day (standby).When working at night, the working state will not be changed by instantaneous strong light.

16.Time period control: Set working time periods according to the living habits of target pests.

17.Rain control system device: A separate drainage system structure automatically drains rainwater, effectively separating rainworms and leaving no water in the box.

18.Various environmental parameter interfaces such as wind speed, wind direction, ground temperature, ground humidity, light, rainfall, etc.can be added.

19.Network mode: A variety of networking modes 4G\WIFI\wired can be selected at will, and network management can be carried out anytime and anywhere.

20.You can view device data through PC, APP, WeChat and other methods.

21.It has a traffic alarm function.The device can be bound to its traffic card through the platform, and alarm information will be automatically pushed when the traffic is abnormal.

3.Corn borer monitor technical parameters

1.Power supply: AC220V

2.Power consumption: standby state ≤5W; whole lamp power ≤450W

3.Insect attractant light source: 20W black light tube (main wavelength 365nm)

4.Impact screen: 120 degrees to each other, single screen size: length 595±2mm, width 213±2mm, thickness 5mm

5.Lamp start-up performance: start within 5S

6.Temperature control of far-infrared insect processing chamber: reaching 85±5℃ after 15 minutes of operation

7.Insulation resistance: ≥2.5MΩ
