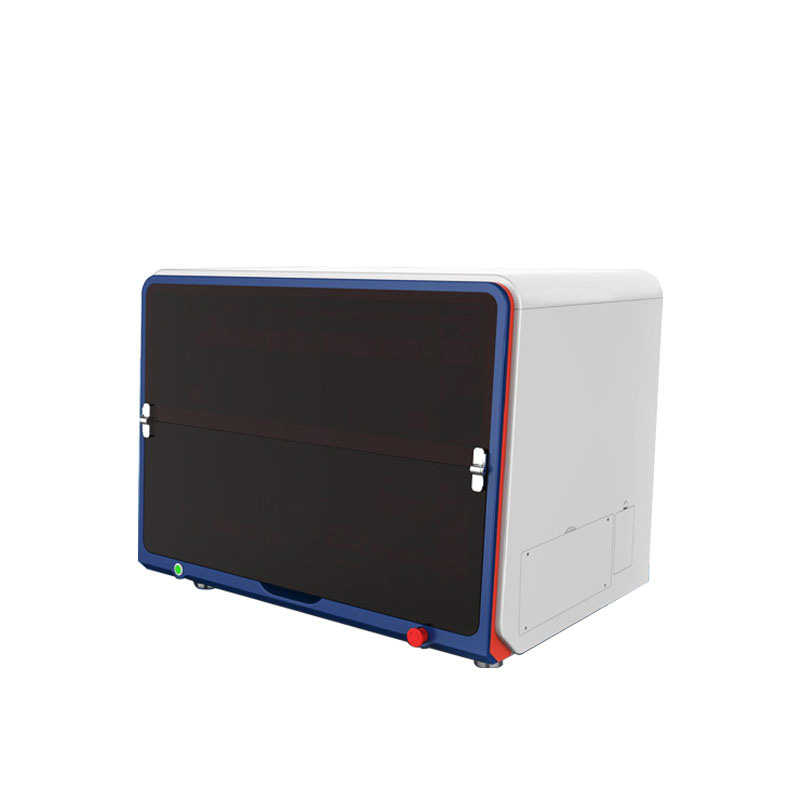

Automatic Brucellosis Detection System

1.Principles and specifications of Automatic Brucellosis Detection System

Automatic Brucellosis Detection System can realize all operation steps of the red plate agglutination test of brucellosis fully automatic, equipped with AI vision system and software analysis system.

1.Adopt the tiger red plate agglutination test in the national standard detection method for Brucella detection, combined with the automatic addition of samples by a robotic arm, tiger red antigen, intelligent turbine mixing system, AI image recognition, and special software analysis system.

2.Operation method: fully automatic intelligent detection, no need for manual sample addition and interpretation.

3.Instrument size: 1100mm*750mm*900mm

4.Total instrument volume: approximately equal to 100KG

5.Sample type: serum, milk and other liquids

2.Main performance indicators of Automatic Brucellosis Detection System

1.Testing speed: 240 samples per batch, 240 testing speed per hour, and the testing time for each batch does not exceed 60 minutes.

2.Support original tube loading: including 1.5ml, 2.0ml centrifuge tubes, 5ml syringes, and 5ml vacuum blood collection tubes.

3.Adding needle method: double-needle capacitive adding needle, with liquid level detection, no need to replace the disposable clinker tip, saving investment in consumables.

4.Sample adding needle cleaning method: Clean with special formula cleaning solution (free), the carrying contamination rate is less than 5ppm, and the adding volume is adjustable from 5-1000ul.

5.Mixing method: Built-in frequency-adjustable vortex mixing module, which can mix in forward rotation, reverse rotation, and timed mixing.

6.Interpretation of results: The working principle of the built-in high-definition microscope can intelligently amplify the sample reaction effect, intelligently judge weak reactions, and avoid false negative samples.

7.Report results: The software analysis system customizes analysis, sample workload, positivity rate, and the results can be formed into graphic reports, Word, Excel, and PDF; the test results are permanently saved and the results can be traced.

8.Reagent position module: It uses 4 open reagents, which are universal for tiger red antigen reagents sold on the market, and can place 4 different brands of reagents at the same time.

9.Sample reaction plate: Disposable 12-well flat-bottomed reaction plate, which can automatically spread the detection sample evenly, allowing it to fully react, and the results are reliable.

10.Lighting system: built-in top starry sky light, bottom responsive lighting system.

11.Biosafety: The whole machine has a fully enclosed visual safety cover, a built-in UV disinfection system, which can be disinfected regularly and automatically shut down after disinfection, and a built-in aerosol adsorption system.

12.Operating system: Chinese control software, which can be remotely upgraded, uploaded to cloud mass storage, automatically saved, etc.

13.Transmission method: supports WIFI and TCP/IP Gigabit network transmission individually or simultaneously

14.Image acquisition: AI intelligent image acquisition system intelligently collects reaction images within a specified time and uploads them to the control analysis software simultaneously.

3.Automatic Brucellosis Detection System configuration list

1.One fully automatic intelligent brucellosis detection workstation

2.A set of dedicated control analysis system

3.A complete desktop brand control computer

4.Automatic Brucellosis Detection System after-sales service

1.24 months from the date of passing the installation and commissioning.
