Automatic Soil Moisture Monitors

1.Automatic Soil Moisture Monitors Product Introduction

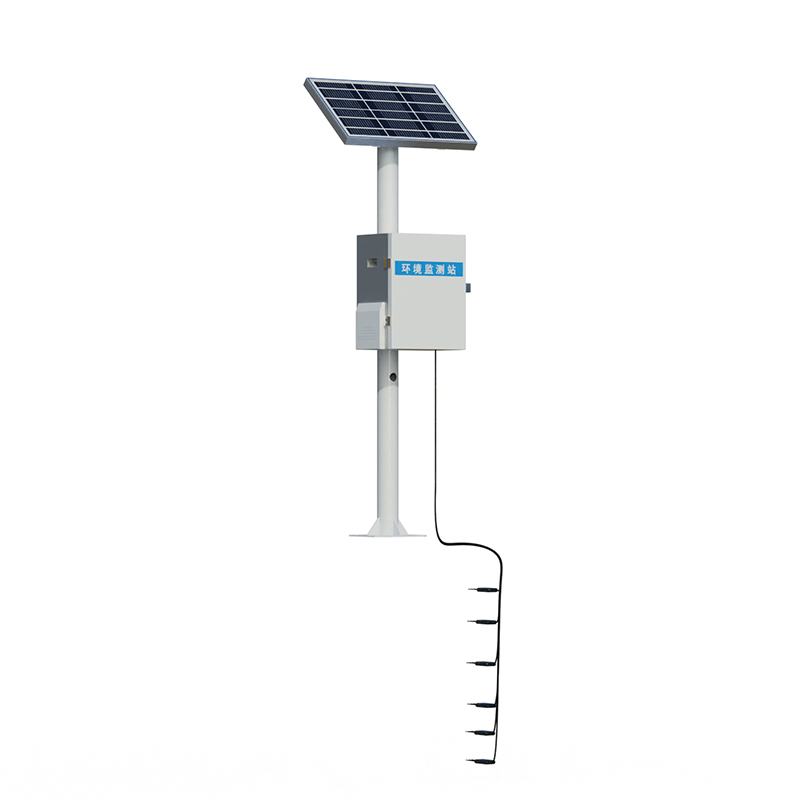

Automatic Soil Moisture Monitors measure all kinds of soil moisture monitors, which can be used as the basic tool of soil moisture monitoring.The FT-TS600 soil moisture monitoring station is a high-precision automatic meteorological observation device that is highly integrated, low-power, can be quickly installed, and is easy to use for field monitoring.

The device supports wired, GPRS, Bluetooth and other transmission methods, is debugging-free, can be quickly deployed, and is widely used in agriculture, forestry, geology, universities, scientific research, etc. It mainly monitors soil moisture content, soil temperature, and soil conductivity, and measures the volumetric water content (VWC) and temperature value of the soil through moisture sensors and temperature sensors. At the same time, according to user needs, meteorological sensors such as soil PH, air temperature, air humidity, solar radiation, and rainfall can be expanded.

2. Features of Automatic Soil Moisture Monitors

1. Six-layer soil temperature, humidity and conductivity sensor

2. The solar panel top cover is inlaid with a design that improves the photoelectric conversion efficiency and increases the wind resistance level.

3. Low temperature 7-inch Android screen, version: 4.4.2, quad-core Cortex™-A7, 512M/4G (optional)

4. Charging controller: MPPT automatic power point tracking, efficiency increased by 20%

5. SMS alarm: send SMS to the designated mobile phone after exceeding the limit

6. The soil moisture and temperature are integrated, and the stainless steel needle can withstand long-term lysis and is more corrosion-resistant.

7. ABS material protective box, corrosion-resistant, anti-oxidation, waterproof grade IP66

3. Automatic Soil Moisture Monitors Technical Parameters

1) Soil moisture: Measurement range: 0-100%, accuracy: ±3%, probe length: 5.5cm, probe diameter: 3mm, probe material: stainless steel

2) Soil temperature: temperature range -40+125°C, measurement accuracy ±0.5°C, resolution: 0.1°C

3) Soil conductivity: The measurement range is optional: 0-5000us/cm, 10000us/cm, 20000us/cm, the measurement accuracy is ±3% in the range of 0-10000us/cm; ±5% in the range of 10000-20000us/cm, the resolution is 10us/cm in 0-10000us/cm, 50us/cm in 100000-20000us/cm

4) Soil PH: Measurement range: 0-14 Resolution: 0.1 Measurement accuracy: ±0.2% (optional)

5) Air temperature: Measurement principle: diode junction voltage method, -40℃～85℃（±0.3℃）(optional)

6) Air humidity: Measurement principle: Capacitive, 0~100%RH (±2%RH) (optional)

7) Solar radiation: Measurement principle: Photoelectric effect, 0-2000W/m2 (0.1W/m2) (optional)

8) Optical rainfall: Measurement principle: photoelectric, 0～4mm/min (optional)

9) Data storage: no less than 500,000 records;

10. Installation time: 1 person, no more than 30 minutes to complete the installation;

11) The manufacturing enterprise has ISO quality management system, environmental management system and occupational health management system certification

12) The manufacturer has a soil moisture software registration certificate

13) The manufacturer is a 3A credit enterprise

4. Introduction to Automatic Soil Moisture Monitors Host Computer Software

1. PC stand-alone version of data receiving, storage, viewing and analysis software

2. Support serial port data reception, processing and display

3. Support json string, modbus485 and other communication methods

4. The storage time can be set by yourself, and the acquisition time can be set by yourself in modbus485 acquisition mode

5. Support self-service addition, deletion, and modification of monitoring parameter protocols, names, icons, etc.

6. Support data post-processing function

7. Support external running of javascript scripts

5. Introduction to Automatic Soil Moisture Monitors Android APP

1. Android stand-alone data receiving, storage, viewing and analysis software

2. Support Bluetooth data reception

3. The software receives and processes the data in the background after the phone goes into sleep mode

4. Automatically add devices with json data, and modbus devices support adding devices by scanning codes

5. Support historical data viewing, analysis, and table export, support curve display, and single data point viewing.

6. Support data post-processing function

7. Support external running of javascript scripts

6. Introduction to the Automatic Soil Moisture Monitors Cloud Platform

1. CS architecture software platform, supports direct observation through mobile phones and PC browsers, without the need to install additional software.

2. Support multiple accounts and multiple devices to log in

3. Support real-time data display and historical data display dashboard

4. Cloud servers and cloud data storage are stable, reliable, easy to expand, and load balanced.

5. Support SMS alarm and threshold setting

6. Support map display and view device information.

7. Support data curve analysis

8. Support data export in table format

9. Support data forwarding, HJ-212 protocol, TCP forwarding, http protocol, etc.

10. Support data post-processing function

11. Support external running of javascript scripts
