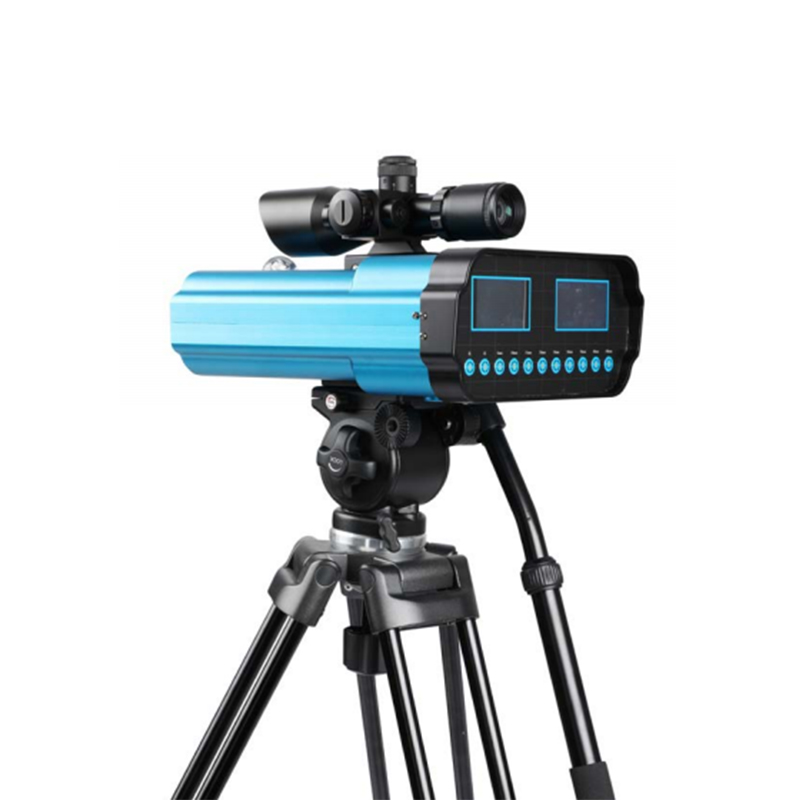

Laser remote displacement monitor

1.Product introduction of Laser remote displacement monitor

Laser remote displacement monitor is an alarm system that detects the potential for walls to fall, beams to sink, or glass walls to collapse as a result of an earthquake aftershock or explosion.Laser remote displacement monitor provides safety guarantees for firefighters busy with rescue and firefighting: using harmless lasers to detect dangerous buildings and other building structures caused by earthquakes, bombs, gas explosions, etc.(such as floors, floor tiles, columns, Any subtle movement of the wall is a portable automatic device that continuously monitors any unstable structure or building slight movement at a long distance.The host emits harmless laser aiming and starts immediately when the object moves 1mm Alarm, send out sound and light alarm signals to ensure the safety of rescue personnel.

Laser remote displacement monitor application scope:

Suitable for fire protection and urban rescue use, earthquake, fire protection, civil defense, public security and other fields.

2.Product features of Laser remote displacement monitor

1.Detect the movement of the slightest unstable structure to alert rescuers of possible collapses and create safe areas;

2.Use stand-alone, or use multiple machines in combination;

3.Each machine comes with two laser emitters, which is more accurate than a laser monitoring and alarm;

4.Support remote control function, and the alarm value can be set wirelessly from a long distance;

5.Built-in 5-megapixel video display, the monitoring target can be viewed through an independent video display screen.With far and near buttons, the monitored object can be displayed, and the video screen can be enlarged and reduced; there is no need to view the target through the scope, intelligent Quick;

6.The diagonal 5.8CM dual display screen shows the laser status all the way and the video status all the way.The video screen is equipped with an independent switch.It can be turned off after the alarm is set, saving power to extend working time;

7.It comes with sound and light alarm function and wireless alarm;

3.Laser remote displacement monitor technical parameters

(1) Laser emitter

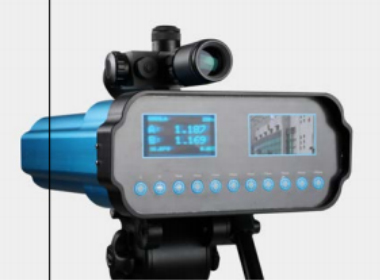

1.Diagonal 5.8CM dual display color screen, 5 million pixels, screen 1: It can display the distance of two laser beams, alarm value, voltage status, range, alarm status; screen

2.The laser monitoring target can be displayed with far and near buttons.The video screen can be enlarged and reduced.The surface of the object can be viewed through the screen.The video display has an independent power switch, which saves power and extends the working time of the host.

3.Harmless laser (level 2): Red laser spots can be seen on the target surface.

4.Laser beam: 2 beams

5.Range: 100 meters

6.Minimum detection value: 1mm

7.Sound and light alarm: 2 LED flash lights, fire sound alarm alarm alarm alarm sound 105DB

8.9-speed fixed alarm threshold: 5, 10, 15, 20, 30, 50, 70, 80, 100mm.

9.Set the alarm threshold arbitrarily: The instrument has an addition and subtraction button, and the alarm value can be set at will from 1 to 200mm;

10.A joint telescope scope equipped with precise target positioning.

11.Voltage detection: supports power-on power self-test and low-point alarm functions;

12.Battery: Built-in 5000mAh polymer lithium battery, working time greater than 6 hours;

13.Charging voltage: 12.6V;

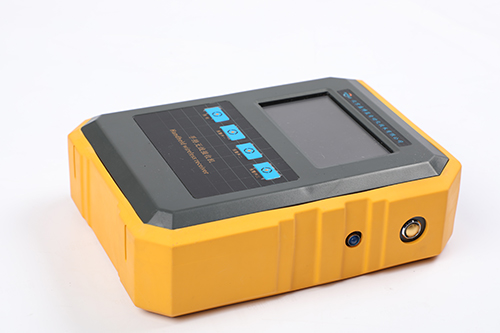

(2) Handheld wireless control receiver

1.The diagonal line of the handheld wireless control receiver screen is ≥11cm.

2.The front-end dual-channel laser monitoring value, setting value, dual-channel laser alarm value and voltage can be received wirelessly.It has lighting function, can adjust the laser emitter alarm value, and can also reset the alarm value.

3.Wireless transmission distance between handheld wireless control receiver and laser transmitter: ≥800 meters

4.The handheld wireless control receiver and the laser host can perform bidirectional wireless transmission.

(3) Tripod

1.With a gimbal, the angle can be adjusted arbitrarily.

2.Body weight: 3.8KG.

3.Extension height ≥1600mm.

4.Laser remote displacement monitor configuration

1 laser host

1 wireless control receiver

1 tripod

1 set of antennas

1 set of charger

1 set of manual, warranty card, certificate of conformity
