insect suction trap

1.Insect suction trap product overview

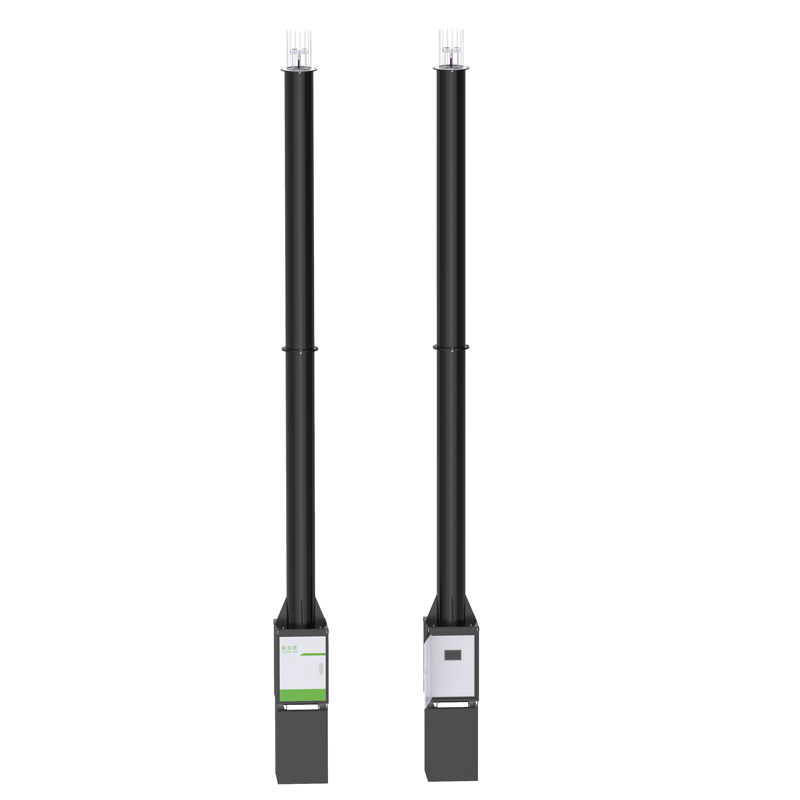

insect suction trap was used to study small migratory insects, and the insects flying near the top tube mouth of the tower were sucked into the tower tube according to the aerodynamic principle.Insect suction trap (Suction Trap) is a new generation of image-based insect monitoring tool developed by our company.It is a large-scale plant protection equipment for long-term monitoring of the spatiotemporal dynamics of small migratory insects.It is used for monitoring and ecological research of migratory pest populations.Its working principle is to suck small insects such as aphids flying above into the sample collection bottle at the bottom through the strong suction of the aerodynamic device.It can be used for medium- and long-term monitoring and can be widely used in agriculture, forestry, animal husbandry, vegetables, tobacco, tea, medicinal materials, gardens, orchards, urban greening, quarantine and other fields.

2.Insect suction trap function description

The suction of the fan at the base of the equipment generates suction force near the top of the tower (the height of the insect tower is 8.3 m), sucking small insects passing through or moving near the top of the tower into the sample collection plate at the base of the equipment (the collection port filter filters large pests, and a bird-proof and rain-proof cap is added to ensure that rainwater does not enter the machine).The camera takes pictures (take pictures once every 30 minutes), and the pictures are transmitted to the cloud server.After AI data recognition and processing, the insect species are automatically counted and statistically analyzed.The monitoring personnel can remotely view and count the species and number of target insects through the PC and mobile phone APP to obtain real-time and accurate population dynamic information of insects.In the case of no supervision, it can automatically complete the system operations such as attracting insects, killing insects, dispersing insects, taking pictures, transporting, collecting, and draining.Then, wireless transmission technology and Internet of Things technology are used to upload environmental meteorology and insect pest conditions to the designated agricultural cloud platform in real time, analyze and predict the occurrence and development of insect pests, provide services for modern agriculture, and meet the needs of insect prediction and specimen collection.

3.Features of insect suction trap

1.The upper and lower layers of far-infrared insect body processing chambers have a mortality rate of no less than 98% and an insect body completion rate of no less than 95%.

2.Rain and insect separation technology, automatically separates rainwater from insects

3.Light control technology, automatically start the machine for testing at night, automatically turn off the light and standby during the day, and the working state will not be affected by the instantaneous strong light when working at night

4.HD 500W camera

5.Built-in positioning function, you can view equipment site and other data on the platform map, which is convenient for users to view

6.The insecticide chamber, drying chamber, camera, etc.can be remotely and manually controlled

7.The touch screen can display the current working mode, communication status, real-time temperature of the insecticide chamber and drying chamber, current light value, rainfall status and the current operating status of each component of the equipment

8.The infrared counting sensor specially customized for the insect monitoring system can count the number of insects killed with an accuracy rate of up to 99%.

9.The system transmits the photos to the cloud server, and automatically counts and statistics the insect species after AI data recognition processing

4.Main technical indicators of insect suction trap
