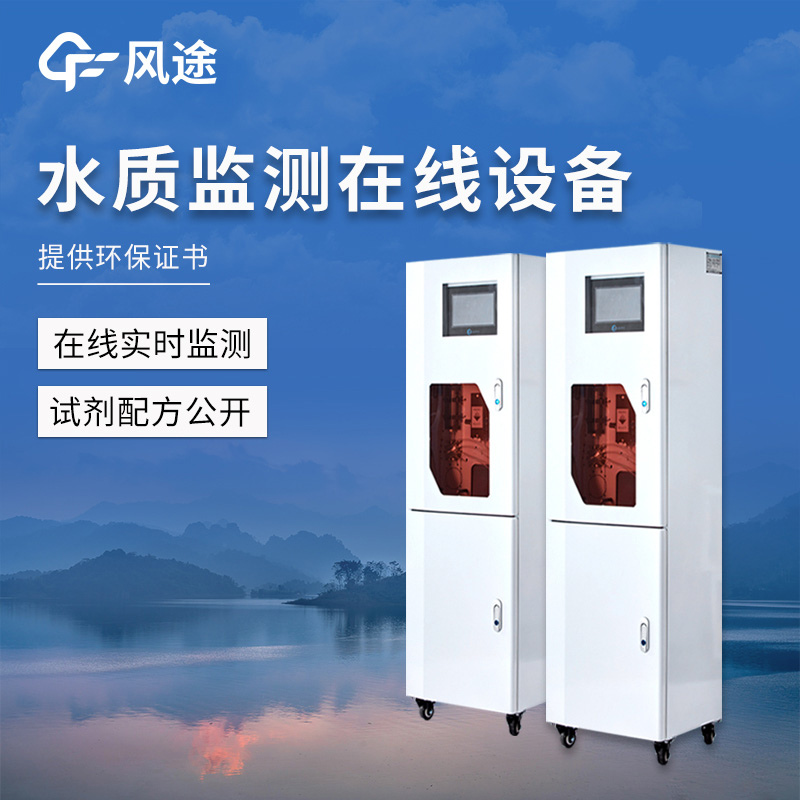

The Water Quality Monitor is composed of several important units. In terms of power supply, through equipment such as 200w photovoltaic panels, photovoltaic controllers, batteries, DC contactors, and power inverters, it not only ensures a sufficient and stable power supply but also utilizes clean energy, providing strong support for the continuous operation of the equipment in different scenarios.
The pump control unit composed of intelligent self-priming pumps, with relatively high lift and flow rate, effectively extracts water samples and helps the water samples flow smoothly in the equipment, providing basic power for subsequent analysis work. The various sensors in the analysis and test unit, such as pH, dissolved oxygen, conductivity, turbidity, and other sensors, are fixed on the flow cell in a special way to accurately detect and analyze the water samples and obtain key water quality parameters. The system control unit is like the intelligent center of the equipment, coordinating each part to work in an orderly manner. It can automatically make various operation judgments according to preset programs and analysis data.
The Water Quality Monitor has powerful monitoring functions. It can automatically monitor various water quality indicators including PH, temperature, turbidity, etc., and uses highly integrated technology to complete complex monitoring tasks in one cabinet. Its communication function is excellent. It supports GPRS networking 4G, extended RJ45 networking, and sensor remote transmission. It is also equipped with a touch control screen and an expandable Android screen for display and storage. The Android screen can achieve 2G data storage and U disk data export, and supports data forwarding of various protocols, facilitating data transmission and processing.
It can be widely used in many fields such as rivers, waterworks and pipe networks, secondary water supply, swimming pools, water purification equipment, direct drinking water, etc. It is an indispensable online analysis equipment for ensuring water quality safety, conducting water conservancy and water affairs management, and health supervision. The supporting Internet of Things data display, storage, and analysis platform further enhances its data application value.
