Buoy type water quality automatic monitoring system

Buoy type water quality automatic monitoring system

Model:FT-SFB04

Brand:fengtu

Buoy type water quality automatic monitoring system takes the buoy as the carrier and carries a variety of sensors to realize real-time online monitoring of water quality.

Product details

1. Introduction to Buoy type water quality automatic monitoring system

1. Buoy type water quality automatic monitoring system takes the buoy as the carrier and carries a variety of sensors to realize real-time online monitoring of water quality.Buoy type water quality automatic monitoring systemSFB adopts an enhanced integrated cone structure to increase equipment stability and durability, which is more in line with floating body engineering.

It can measure the hydrological, water quality and meteorological parameters in lakes or river basins in real time. The system integrates data collection and transmission, and has the function of SMS alarm for exceeding the standard and automatic light sensing. It has the characteristics of multiple measurement parameters, high measurement accuracy, large storage capacity, convenient networking and stable operation. The buoy adopts an unattended intelligent control system to complete the data collection and data transmission of multiple sensors; the solar panels and large-capacity batteries form a solar power supply system to ensure the power required for the system to work in the field for a long time; the buoy body is made of ultra-high molecular polyethylene material, which has good anti-corrosion ability, prevents biological attachment, does not fade, has strong anti-collision ability, anti-lightning, non-magnetic and other characteristics, and is suitable for complex hydrological and hydrodynamic conditions such as reservoirs.

2.SFB04 buoy is composed of six parts: water quality sensor (water temperature, conductivity, PH, dissolved oxygen), data acquisition instrument, communication system, power supply system, overall bracket, and water quality monitoring platform. It can also expand ammonia nitrogen, turbidity, COD, and multiple water quality elements. The data acquisition instrument has data acquisition, real-time clock, data timing storage, parameter setting and standard 2G/4G (GPRS) communication functions.

2. Buoy type water quality automatic monitoring system product features

1. Easy to deploy: various types of probes are highly integrated and easy to install; free cloud platform services are provided, and the system can be quickly put online;

2. Easy maintenance: After the equipment is installed, it can work automatically without manual supervision. The normal operation of the equipment can also be ensured by remote monitoring;

3. Easy to expand: sensor probes all use a unified communication protocol, which can quickly connect to the original equipment and quickly expand monitoring parameters;

4. Low power consumption: The device can run for a long time in a low power consumption state, increasing the convenience of device use;

5. Real-time: The data monitored by the equipment is transmitted to the cloud platform in real time to improve the timeliness of environmental data feedback.

3. Technical parameters of Buoy type water quality automatic monitoring system

1. Subject parameters

product name describe
Environmental water quality monitoring buoy

Real-time online monitoring of multiple parameters can be achieved.

Battery charge monitoring can be realized.

It can realize cloud platform data monitoring, data push,

Data storage and alarm function; data wireless transmission function.

The peak power consumption is 5W; the sensor power consumption is about 0.25W per sensor.

Overall dimensions: 800*350mm. Maximum float diameter 790mm

Weight: 26kg

Core components describe
Collector data collection Reliable operation, anti-interference, can integrate multiple RS485/MODBUS-RTU slave devices
Collector data output 1 channel RS485/JSON protocol output
Battery Lithium battery 12VDC, 20AH (default)

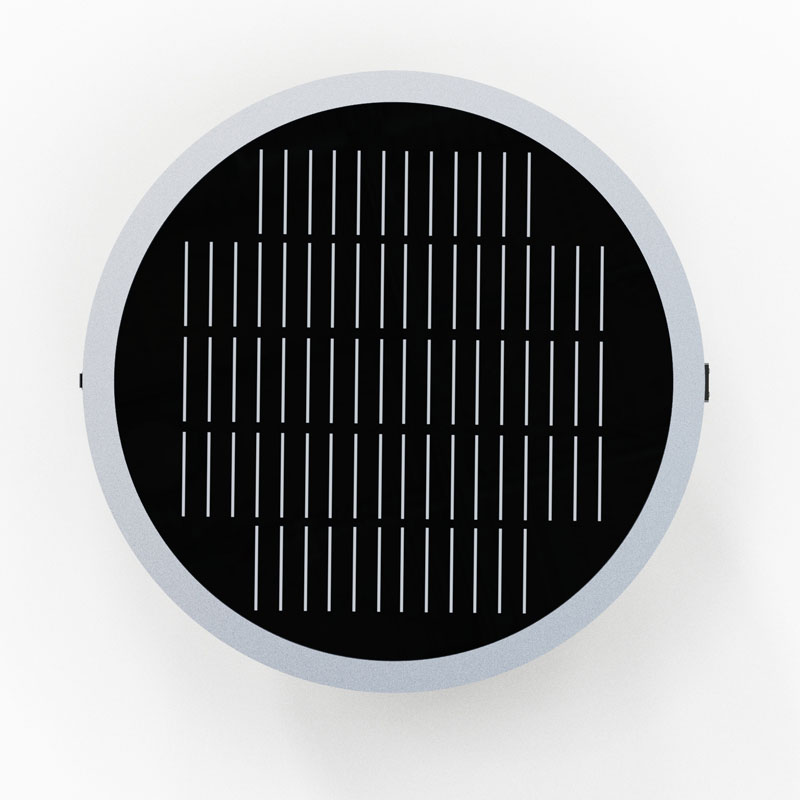

solar panel 18V/55W (default) 800mm round solar panel frame aluminum alloy custom
Power supply capability Customized selection; intermittent operation for more than 5 days on rainy days
Position indicator (optional) Warning light;GPS positioning;
Monitoring Platform Cloud platform; mobile phone/computer multi-terminal login
protecting mask 304 stainless steel filter cartridge protective cover
Floating body Diameter 790mm, cone float*1 integrated engineering plastic

Main parameters of optional sensors

Serial number name Measuring range Measuring principle measurement accuracy Is it standard? Remark
1 temperature 0~50℃ High-precision digital sensor ±0.3℃
2 pH 0~14 (ph) Electrochemistry (Salt Bridge) ±0.1PH
3 ORP -1500mv~1500mv Electrochemistry (Salt Bridge) ±6mv
4 Conductivity 0~5000uS/cm Contact electrode method ±1.5%
5 Turbidity 0~40NTU (low turbidity) Scattered light method ±1% Low turbidity can be customized
0~1000NTU (medium turbidity) Scattered light method ±1% Medium turbidity can be customized
0~3000NTU (high turbidity) Scattered light method ±1% Default
6 Dissolved oxygen 0~20mg/L Fluorescence lifetime method ±2%
7 Ammonia nitrogen 0~100mg/l Ion Selective Electrode Method ±1mg
8 cod 0~500mg/L UV254 absorption method ±5% Default hair, cod turbidity integration
Turbidity 0~400NTU Scattered light method ±1%
9 Suspended Matter 0~2000mg/L Scattered light method ±5% (depending on sludge homogeneity)
10 Chlorophyll 0~400ug/L Fluorescence method R2>0.999

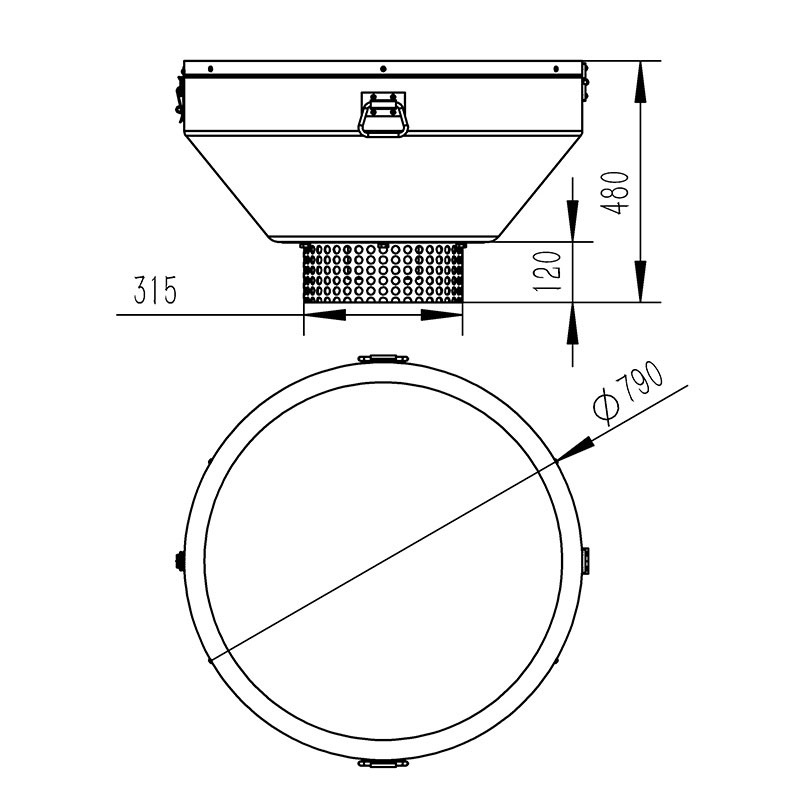

4. Buoy type water quality automatic monitoring system product size diagram

Buoy type water quality automatic monitoring system product size diagram

5. Buoy type water quality automatic monitoring system equipment installation requirements

1. Stay away from high-power radio transmitters

2. Stay away from high-voltage transmission lines and microwave radio transmission channels

3. Try to be close to the data transmission network

4. Stay away from strong electromagnetic interference

6. Buoy type water quality automatic monitoring system cloud platform introduction

1.CS architecture software platform, supports direct observation via mobile phone and PC browser. No additional software installation is required.

2.Support multiple accounts and multiple devices login

3. Support real-time data display and historical data display dashboard

4. Cloud server. Cloud data storage, stable and reliable, easy to expand, and load balanced.

5.Support SMS alarm and threshold setting

6.Support map display and view device information.

7.Support data curve analysis

8.Support data export in table format

9.Support data forwarding, HJ-212 protocol, TCP forwarding, http protocol, etc.

10. Support data post-processing function

11.Support external running of javascript scripts
