Portable Infrared Seductive Insect Detection Lamp

1.Portable Infrared Seductive Insect Detection Lamp Product Introduction

Portable Infrared Seductive Insect Detection Lamp was used to kill pests by using different pests' tendency to seductive insect detection agents and special lure core.Our new target automatic monitoring system is based on edge computing, which can achieve targeted trapping of pests, classify and count different pest conditions, analyze the peak period of pest conditions, and count the number of pest conditions in different time periods through infrared technology. It is mainly used in parks, forest farms, and orchards.

2. Portable Infrared Seductive Insect Detection Lamp Technical Specifications

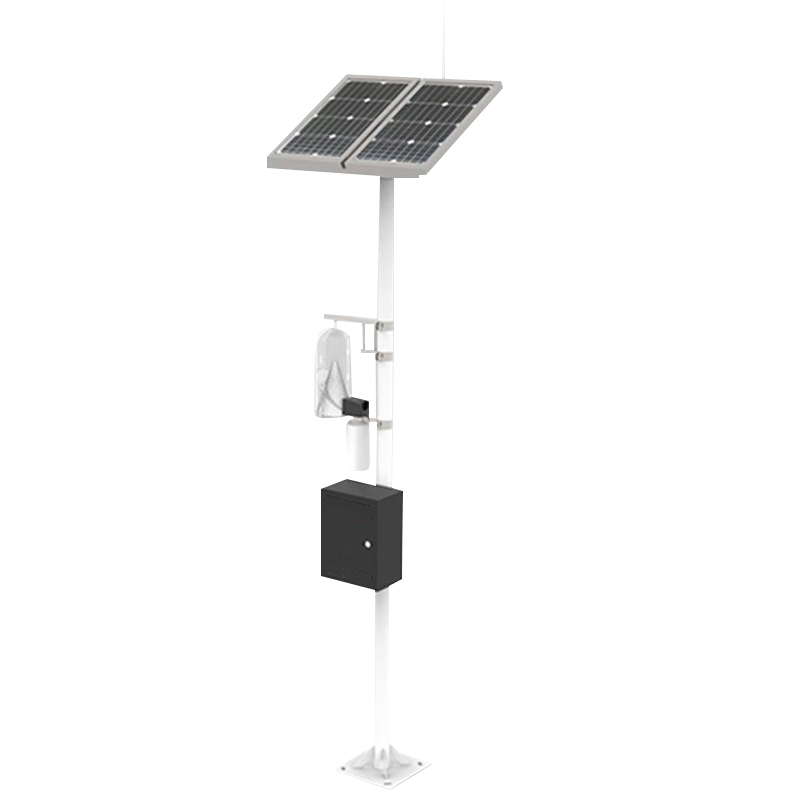

1. The system adopts solar power supply system and can automatically shut down the system in rainy days; the host must be able to work normally for a long time in bad weather, working temperature: -20℃-70℃; working humidity: 0-95%

2. Target pests are attracted by sex attractants. The equipment can be divided into: automatic detection and reporting systems for multiple target pests such as Lepidoptera and Coleoptera

3. The height of the trapping and counting device can be adjusted according to the height of the crop

4. Automatically exclude non-target pests

5. Counting interval ≤ 0.1 seconds

6. It has the function of remote automatic data reporting, which includes: number of pests, trapping time, GPS information, temperature and humidity, etc., and the following reporting methods can be set remotely:

①Automatically upload based on pest thresholds

②Automatically upload at a fixed time

③At any time, remotely send commands to automatically upload

7. Uploaded data can be reported to the user's designated address in real time, and can be received by multiple clients such as mobile phones and computers

8. The main circuit board has no less than 8 environmental factor expansion interfaces and no less than 4 trap expansion interfaces.

9. The host has the function of remote power on and off, remote diagnosis and maintenance of equipment failure, remote reminder of equipment abnormality or failure, and reminder of replacement time of the lure core.

10. Can be equipped with camera + counting function and integrated bait control system equipment
