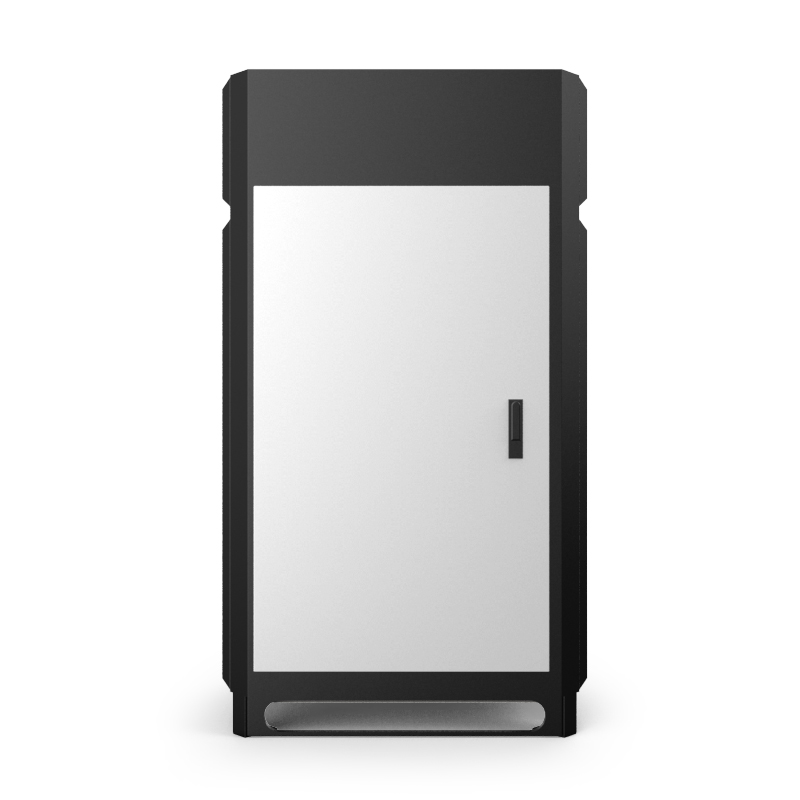

Rice sheath blight monitor

1.Introduction to Rice sheath blight monitor

Rice sheath blight monitor predicts the blight of rice sheath blight according to the built-in model by collecting the growth environment in rice growing region.Sheath blight damages rice leaves and leaf sheaths, causing serious damage to rice production.The sheath blight monitor is a new type of sheath blight monitoring equipment that integrates meteorological monitoring and intelligent spore capture microscopic imaging.The system collects the growth environment of the rice planting area and predicts the incidence of rice sheath blight according to the built-in model of the system.At the same time, the built-in sheath blight spore capture device collects the spore inventory and diffusion dynamics of sheath blight, providing an unmanned and visual verification method for the occurrence of sheath blight.The equipment is mainly composed of a meteorological information collection device, a spore capture device, a spore carrier device, an image acquisition device, a network transmission module, a power supply and a lightning protection system.It realizes the functions of remote automatic capture of sheath blight spore information, automatic rotation of the glass slide, automatic collection, automatic microscopic imaging photography, automatic uploading of picture data, and automatic operation.At the same time, the environmental meteorological information and sheath blight disease pictures are uploaded to the designated network platform in real time to form a dynamic comparison database of meteorological environmental information and spore occurrence conditions, providing a large amount of data support for studying the relationship between the occurrence trend of sheath blight and meteorology.Provide services for modern agriculture, meet the needs of disease prediction and forecasting and specimen collection, and prevent and control the occurrence of diseases in a timely manner.

2.Rice sheath blight monitor performance characteristics

1.Stainless steel spray-coated shell, 15-inch ultra-large high-definition capacitive touch screen, windows operating system, with good human-computer interaction interface.

2.It has a 12-megapixel, 1,000-fold magnification microscopic imaging system that can automatically take high-definition microscopic photos of captured pathogen spores.The clarity of the captured images can meet the requirements for manual identification of pathogen spore types.

3.The device automatically captures pathogen spores 24 hours a day, automatically takes pictures of the captured pathogen spores, and automatically selects the best pictures to upload.

4.The fully intelligent automatic microscopic imaging system can automatically adjust the camera's shooting angle to achieve all-round, no-dead-angle imaging of the slide.

5.It can realize the whole process of automatic operation from glass slide loading, pathogen spore capture, microscopic imaging to glass slide recovery.

6.Equipped with extra-long special glass carrier tape, which can meet the usage of 600 days.

7.It has multiple working modes, and the automatic operation mode, timing operation mode and debugging operation mode can be switched freely.

8.Built-in Beidou/GPS positioning function, which can upload device information to the platform in real time, and view the current device parameters on the map.

9.It can monitor multiple sheath blight monitoring indicators such as air temperature and humidity, atmospheric pressure, wind speed, wind direction, rainfall, etc.in real time, and predict the occurrence of sheath blight through the sheath blight model within the system.

10.The device actions can be controlled through the platform and APP: feeding, collection, microscopic imaging, recycling and other actions.

11.Remote upgrade and maintenance: The latest program can be directly updated remotely and automatically without the need for manual on-site replacement.

12.Multiple data access methods: You can access the platform through PC, view data through mobile APP, and control device actions.

13.4G communication module is standard, 5G communication module is optional.

14.With fault self-diagnosis mechanism, equipment fault information can be reported to the remote server in real time.After-sales personnel can view equipment fault information through the platform.

15.It can be equipped with an intelligent solar power supply management system to collect key information such as equipment power consumption, solar power generation, battery voltage, equipment load, current, etc.and upload it to the server (optional).

16.It has a traffic alarm function.The device can be bound to its traffic card through the platform, and alarm information will be automatically pushed when the traffic is abnormal.

3.Rice sheath blight monitor technical parameters

1.Material: GB32080-92 stainless steel;

2.Data transmission mode: 4G/5G network (optional), wired network;

3.Power supply voltage: AC 220V±5%;

4.Power: 200W;

5.Timing: 5 time periods can be set;

6.Carrier tape: length: 150M width: 0.025M can meet 600 days of use;

7.Air collection outlet wind speed: 0.3～5m/s;

8.Insulation resistance: ≥2.5MΩ;

9.Air temperature: -30～80℃, accuracy: ±0.3℃

10.Air humidity: 0~100%, accuracy: ±3%

11.Wind speed: 0~30m/s, accuracy: ±0.1m/s

12.Wind direction: 0-359° Accuracy: ±1°

13.Rainfall: 0~4mm/min, error: ±0.1mm

14.Atmospheric pressure: 0-1100hpa, accuracy: 0.1hpa
