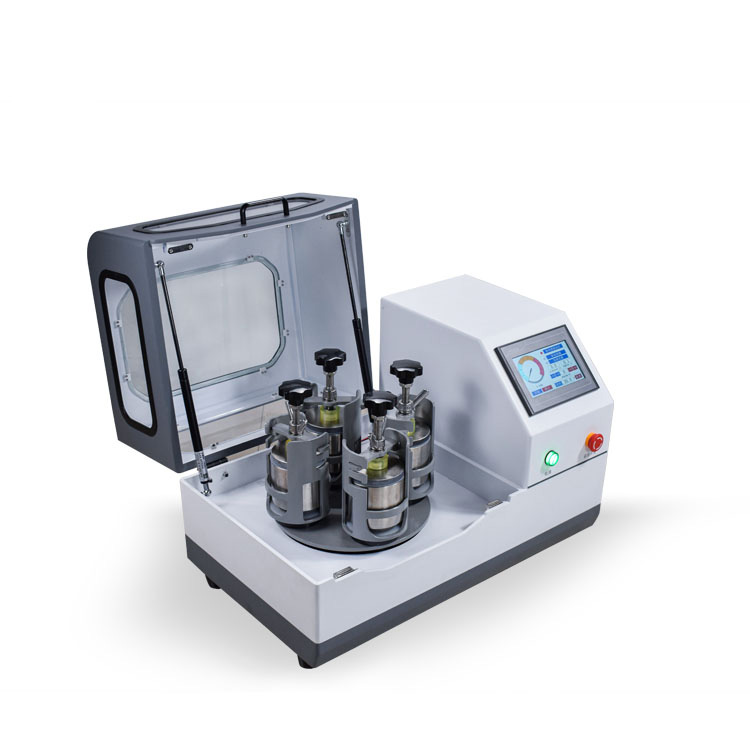

Soil Grinder
Model:FT-QM
Brand:fengtu
Related products
Product details
Soil Grinder Product Introduction:
The Soil Grinder is suitable for grinding all types of soil samples in the laboratory. It adopts both wet and dry grinding methods. It is a small ultrafine powder preparation mechanical equipment.Application areas: soil, geology, environmental protection, third-party testing, agriculture and animal husbandry, agricultural product quality, resources and environment, soil sample preparation, heavy metal analysis
Application sample characteristics: brittle, fibrous, medium and low hardness, dry or wet grinding
Mechanical processing principle of the instrument: impact force, shear force, friction force
Instrument mechanical processing type: crushing, grinding, mixing, homogenization
Control system: touch screen, wireless remote control
Remote control: Standard wireless remote control, which can remotely control the start, stop, acceleration, deceleration of the grinder and switch between three operation modes (one-way continuous operation, one-way interval operation, two-way alternating interval operation)
Display mode: 7.0-inch color LCD screen, can display, touch operation operation mode, operation time, speed, alternating operation interval
Operation mode: one-way continuous operation, one-way interval operation, two-way alternating interval operation, timed stop
Continuous operation time setting: 0.1~9999.9 minutes
Alternating, one-way interval pause time setting: 0.1~9999.9 minutes
Main disk speed: 50-450min
Grinding jar speed: 100-900min
Transmission ratio (planetary disc, grinding jar): 1:2
Continuous working time (full load): 90h
Emergency stop: The red emergency stop button can cut off the power and stop the machine with one click
Power-off memory function: the time setting before power failure does not need to be reset after power failure
Overload protection function: Yes
Grinding chamber design: sealed and dustproof, with four-way observation windows
Number of samples processed simultaneously: 4
Applicable grinding jars: This machine is a new general-purpose model. It can be used with grinding jars of three specifications: 100ml, 250ml and 500ml. Jars of different specifications can be placed at the same time according to customer needs; they can be diagonally symmetrical (4 grinding jars are a set).
* Maximum injection size: soil 12mm, other 3mm
Grinding jar ball quantity: one third of the jar volume
*Maximum sample volume: two-thirds of the grinding jar volume
Sample size: minimum 0.1um (i.e. 1.0×10mm-4)
Grinding jar material: agate, ceramic, polytetrafluoroethylene, zirconium oxide, polyurethane, stainless steel, nylon, tungsten carbide, cemented carbide, etc. (commonly used agate and zirconium oxide grinding jars)
Grinding ball material: agate, zirconia, stainless steel, ceramic, carbide, silicon carbide, etc.
Grinding ball diameter: 3, 5, 10, 15, 20 mm (configured according to actual needs)
Power port: national standard, European standard, American standard, British standard, etc.
Motor speed, power, voltage: 1400rpm, 0.75kw, 220V±10% single phase, 50/60Hz
Net weight: 80kg
Dimensions (length, width and height): 756*484*488mm
Noise description: 60dB
Protection level: IP60
Soil Grinder standard configuration: grinder host: 1 set; grinding jar locking device: 1 set of 4; 250ml grinder grinding jar protection device: 1 set of 4; 100ml grinder grinding jar protection device: 1 set of 4; power cord: 1; manual: 1; warranty card: 1; certificate: 1
