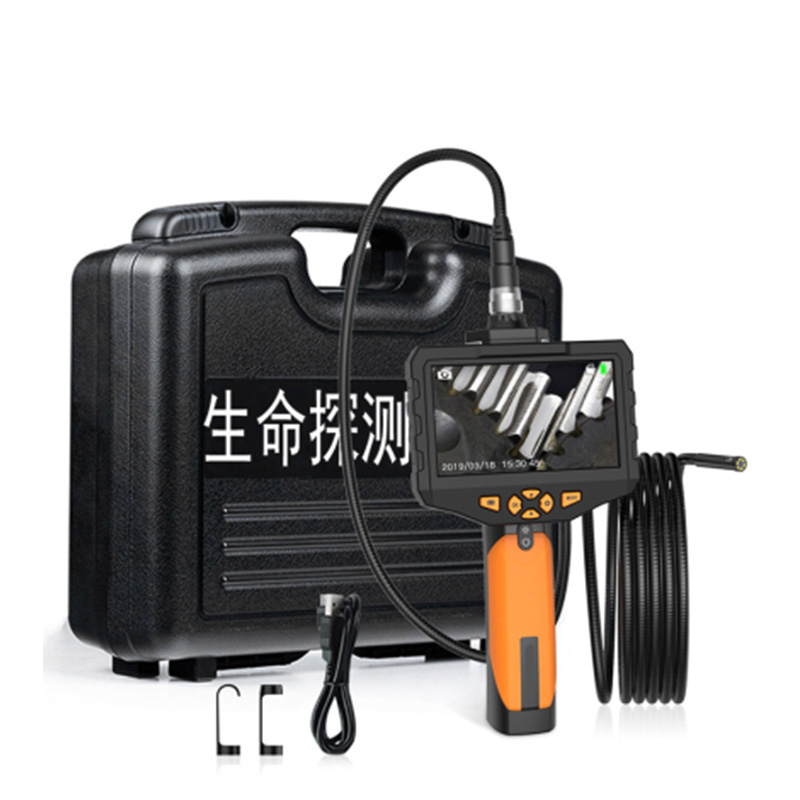

Audio life detector
Model：FT-V1A
Brand：fengtu
Get a Free QuoteRelated products
Product details
Audio life detector detailed product introduction and technical parameters
Audio life detector uses air as a carrier of various sound waves and other media as a carrier of vibration to detect survivors trapped in ruins, collapsed buildings, and obstacles.
| Audio life detector basic configuration | ||
| Implementation standards | Implement GB 4943.1-2011 "General Technical Specifications for Pass-through Metal Detection Doors" | Key parameters |
| performance | High-definition, full-color LCD video image; video, photo, and playback possible | ☆☆☆ |
| Screen type | 5-inch true color LCD monitor | |
| resolution | 854*480 pixels (QVGA) | |
| Screen rotation | 180° screen flip | |
| Video resolution | 1280*720, 1920*1080 | |
| Photo resolution | 1920*1080 | |
| port | micro USB port, TF memory card slot | |
| Camera | Single camera diameter 7.6mm | |
| hose length | 5 meters | |
| resolution | 1 million pixels | |
| Viewing angle | 70° | |
| focus range | 30mm-60mm | |
| power supply | 5000mah 18650 battery (built-in) | |
| Battery life | 4-5 hours | |
| Menu language | English, Chinese, Japanese, German, Spanish, French, Italian, Russian | |
| Applicable aspects | Used in rescue of pipelines, cracks, mine disasters, earthquakes, collapses, etc. | |
