Insect monitoring system

Insect monitoring system

Model:FT-CQ1

Brand:fengtu

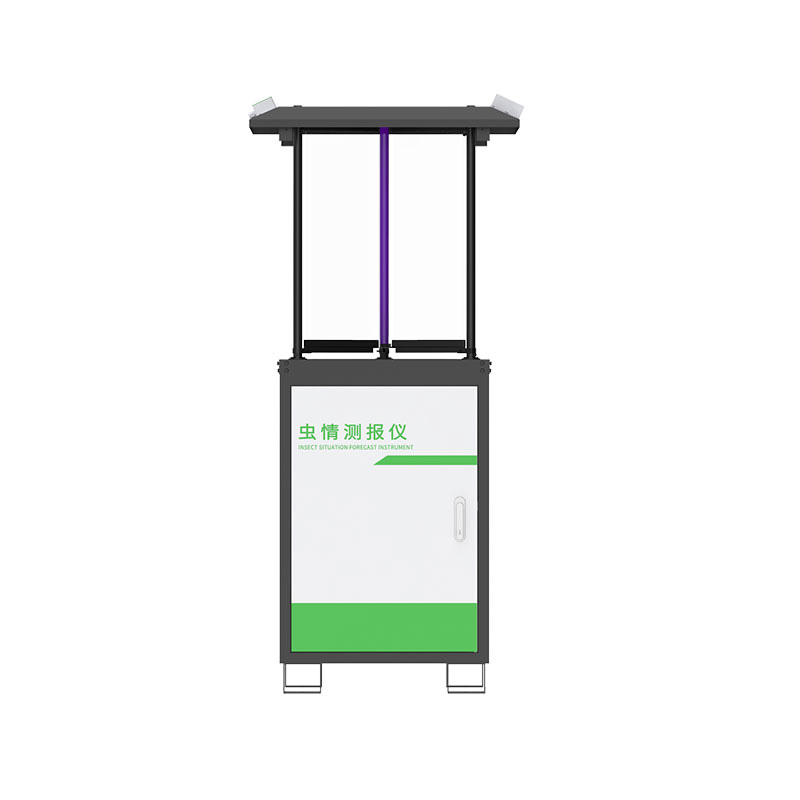

Insect monitoring system integrates insect trapping, photography and environmental information collection, realizing the functions of insect trapping and insect early warning.

Product details

1.Product Introduction of Insect Monitoring System

Insect monitoring system integrates insect trapping, photography and environmental information collection, realizing the functions of insect trapping and insect early warning.

Name:Insect monitoring system

Compliance with standards: Complies with GB-T24689.1-2009 standard image-based insect monitoring tool.

Main purpose: To analyze and predict the occurrence and development of insect pests, provide services for modern agriculture, and meet the needs of insect prediction and specimen collection.

Working principle: Using modern light, electricity, numerical control and other technologies, it realizes the functions of trapping insects, killing insects at high temperature, conveyor belt transportation, automatic operation of the whole lamp, etc. In the case of no supervision, it can automatically complete the system operations such as luring insects, killing insects, dispersing insects, taking pictures, transporting, collecting, and draining. Then, it uses wireless transmission technology and Internet of Things technology to upload environmental weather and pest conditions to the designated agricultural cloud platform in real time.

2. Main structure of Insect monitoring system

Host material: plastic spraying

Machine size: 717mm*727mm*1569.2mm.

Components: Insect trap, impact screen, insect killer, HD camera, main control system, mechanical components, rain and snow sensor, light sensor, professional metal box frame

3. Insect monitoring system technical parameters

Operating system: MCU

Power supply: 220VAC as standard, solar power supply is optional.

Equipment power consumption: whole machine power consumption: ≤200W; standby power consumption ≤25W;

Working environment: 0~70℃, 0~85% (relative humidity), no condensation

Insulation resistance: ≥2.5MΩ (leakage protection)

Insect attracting device: The default is optical insect attracting principle, and the drug insect attracting principle can be selected. The optical insect attracting device uses a 20W black light tube with a main wavelength of 365nm, and the lamp start time is ≤5S.

Impact screen: Made of high-transmittance glass, at an angle of 120 degrees, single screen size: length 595±2mm, width 213±2mm, thickness 5mm.

Insecticide device: The far-infrared insect treatment chamber has two layers, the lethality rate is not less than 98%, and the insect completion rate is not less than 95%. After the far-infrared insect treatment chamber works for 15 minutes, the temperature can reach 85℃±5℃.

HD camera: This device supports 500W pixel camera, which is plug-in and easy to replace on site. The camera can collect the insect situation on the conveyor belt in real time, and the image clarity can meet the requirements of manual identification of insect species.

Main control system: The main control system can provide Bluetooth APP configuration tools and support Bluetooth contactless configuration. It supports changing the device working mode and independently controlling the startup and operation of each component of the device. It supports remote program upgrades, base station positioning, automatic time calibration, and parameter setting through Bluetooth configuration APP.

Communication mode: support 4G communication, optional Ethernet RJ45 communication.

Mechanical components: The interior of the box contains insect rain baffles, insecticidal baffles, drying baffles, vibration devices, insect moving devices, fill lights, cameras and other mechanical devices and control execution equipment.

The vibration device of the Insect monitoring system can vibrate the trapped insects, so that they are evenly scattered and spread on the conveyor belt, avoiding insect accumulation and ensuring that each insect feature can be clearly photographed. Combined with the platform software AI analysis and recognition system, it can ensure that insects trapped in different time periods are not confused.

Rain control technology: The on-site weather conditions are detected through rain and snow sensors. The system will operate normally when there is no rain or snow, and stop operating when there is rain or snow. After identifying the rain and snow weather, the opening and closing direction of the insect-rain baffle is controlled to achieve insect-rain separation.

Light control technology: The light sensor detects the light intensity on site and is not affected by instantaneous strong light. When the light intensity is less than the program setting value, the control device operates normally; when the light intensity is greater than the program setting value, the control device stops operating.

Time control technology: you can set the work start time, working time, single working cycle time, insect attractant light on time, delayed on time after rain, etc.

Working mode: supports automatic working mode, manual working mode, and supports working mode switching.

Automatic working mode workflow: Flying insects are attracted by the insect-attracting light source → enter the blinds → hit the impact plate → fall into the insect-killing chamber after the collision → the insects are killed by the high temperature in the insect-killing chamber → the insect-killing baffle flips → the insect corpses fall into the drying chamber → the drying chamber is dried at high temperature, and after the drying is completed → the drying baffle flips → the insect corpses fall on the vibration plate → the vibration plate starts → the insect corpses are spread flat on the conveyor belt → the conveyor belt transports the flying insect corpses to the camera → take pictures → upload pictures to the server.

Manual working mode introduction: Supports controlling the operation of each mechanical component through Bluetooth configuration APP, cloud platform, and insect monitoring APP.

4.Insect monitoring system installation method:

1. Choose a good installation location for the insect detection cabinet, prefabricate a flat hard cement platform as far in advance as possible, and then drill holes according to the fixed size of the base.

2. Use the expansion screws in the accessories to install them into the 8 holes.

3. Align the eight expansion screw holes of the four raised weld feet at the bottom of the equipment support column, and tighten them with a wrench.

5. Insect monitoring system:

1. The insect monitoring platform can be logged in and managed by different accounts according to different permissions, and at least 8 accounts with different permissions can be allocated.

2. The insect monitoring platform can remotely view the current working status of each component of the Insect monitoring system, and the status can be stored and the historical records can be viewed.

3. Users of the insect monitoring platform can add pest species.

4. The insect monitoring platform has statistical charts of pest types and quantity changes by region and time, including bar charts and line charts.

5. The insect monitoring platform uses the second-generation insect database for AI automatic analysis, and users can supplement and correct the AI analysis results by themselves.

6. The insect monitoring platform supports secondary development, and provides a professional insect monitoring platform and APP client for free. The platform can provide API interface. SDK development interface based on Java and C# can be provided.
