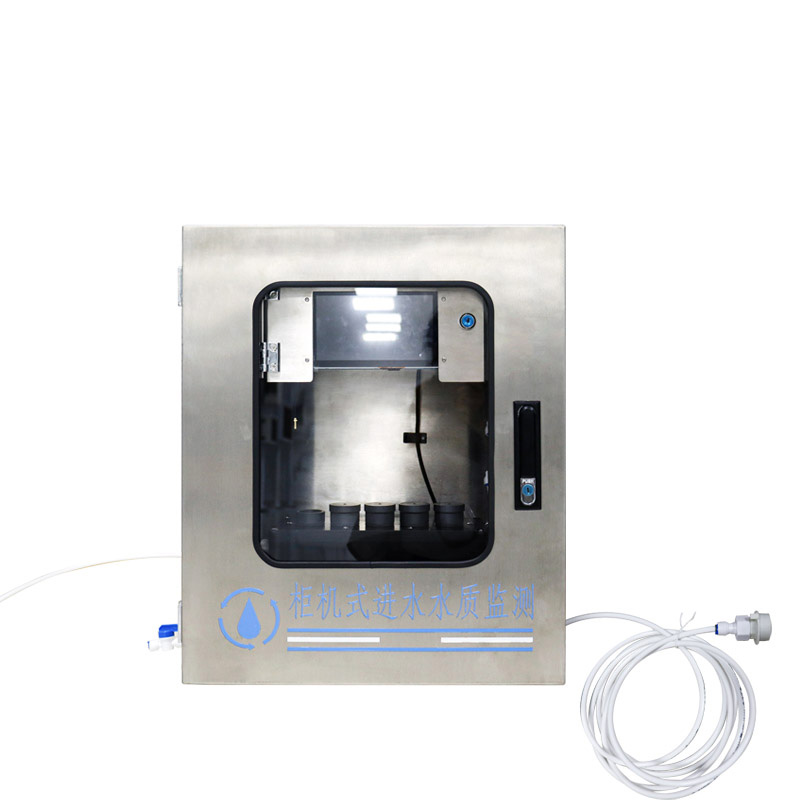

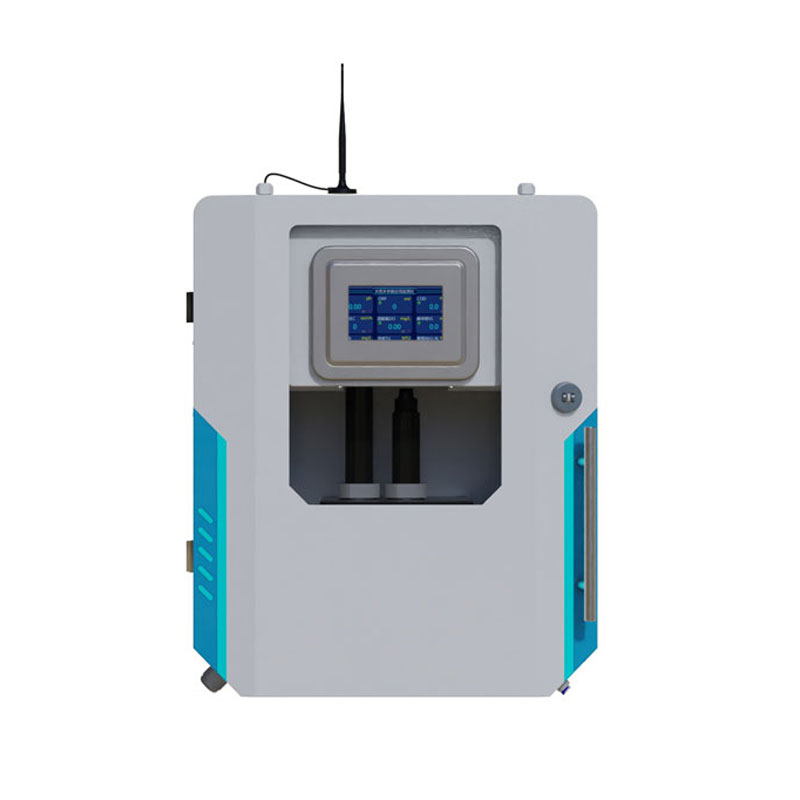

Water quality monitor system for drink water

Water quality monitor system for drink water

Model:FT-GSZ04

Brand:fengtu

Water quality monitor system for drink water is a multi-parameter rapid water quality monitor that can monitor water temperature, conductivity, PH, turbidity and other parameters.

Product details

1.Water quality monitor system for drinking water product introduction

1.1 Overview

Water quality monitor system for drink water is a multi-parameter rapid water quality monitor that can monitor water temperature, conductivity, PH, turbidity and other parameters.The GSZ04 water supply quality station is a comprehensive sensor collection, display and analysis system based on the Internet of Things technology. It is a water supply quality monitoring microsystem, consisting of a steady flow exhaust unit, an analysis and testing unit, a system control unit and a remote communication unit, and has complete power supply, lightning protection, network communication and other functions.

1.2 Product Positioning

GSZ04 This equipment is used in water supply terminal <0.3Mpa pipe pressure environment. It can be widely used in urban or rural water plants, water supply networks, secondary water supply, user terminals, indoor swimming pools, large water purification equipment and direct drinking water and other water quality online monitoring. It is an indispensable online analysis equipment in the fields of water plant production process control, water conservancy and water affairs management, health supervision, etc.

1.3 Functions and Features

GPRS network 4G

Support extended RJ45 networking

Support extended sensor remote transmission

Support LED screen display 7.0 inch touch control screen

Supports extended Android screen display and storage

Expanded Android screen supports 2G data storage and USB flash drive data export

Support one RS485 modbus-RTU protocol slave

Support multi-channel RS485 modbus-RTU sensor expansion

Supporting IoT data display, storage and analysis platform

The platform supports TCP short link, HTTP protocol and other protocol data forwarding

2. Composition of Water Quality Monitor System for Drinking Water

2.1 Components

The water supply quality monitoring microsystem consists of a power supply unit, an analysis and testing unit, a display unit, a water pump unit, a remote communication unit and an integrated box main unit.

2.1.1 Power supply unit

Power adapter AC220 to DC12V/3A.

2.1.2 Analysis and testing unit

The analysis and testing unit is mainly composed of water temperature, conductivity, pH, and turbidity sensors, which are fixed on the flow cell by threads or tight fitting fixtures. The main parameters of the sensors are as follows:

Technical Parameters

Serial number sensor type Measuring range Measuring principle measurement accuracy
1 temperature 0~50℃ High-precision digital sensor ±0.3℃
2 pH 0~14 (ph) Electrochemistry (Salt Bridge) ±0.1PH
3 Conductivity 0~5000uS/cm Contact electrode method ±1.5%
4 Turbidity 0~40NTU (optional) Scattered light method ±1%

Note: The sensor cannot be installed upside down or horizontally, but must be installed at an angle of at least 15 degrees.

The working environment of the above water quality sensors is 0-50℃, <0.3Mpa.

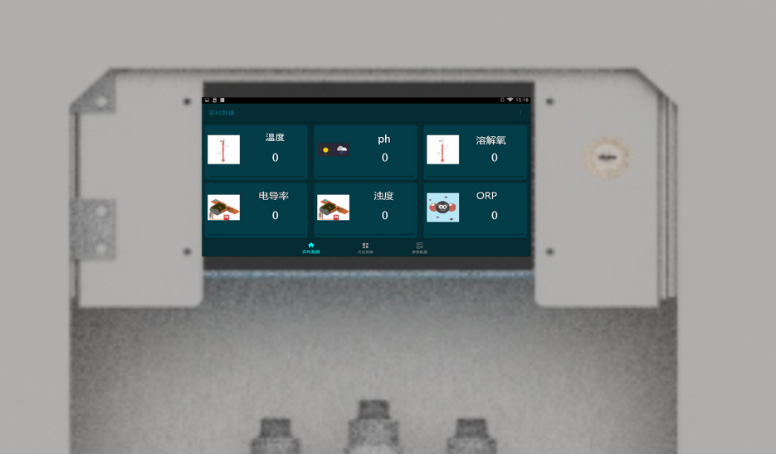

2.1.3 Display unit

The multi-parameter monitor is installed on the cabinet door to collect, analyze, display, communicate and save data.

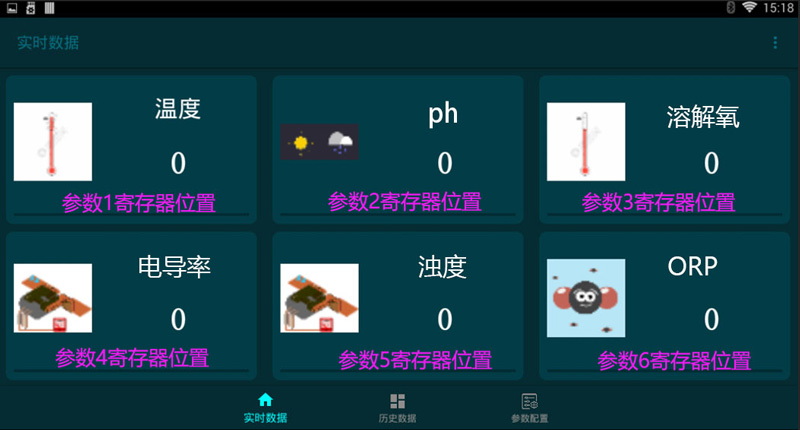

Display unit

Android version: 4.4.2 · CPU: Quad-core Cortex™-A7 · RAM/ROM: 512M/4G · Screen: 7-inch capacitive touch screen · Power supply: 12V/1A · Support U disk expansion, support memory card expansion

2.1.4 Remote Communication

RS485 interface MODBUS-RTU communication protocol Factory device address 6 decimal Support 03 function code to read data

parameter Decimal address Hexadecimal address type of data
Parameter 1 40001 0x0000H 16-bit integer
Parameter 2 40002 0x0001H 16-bit integer
Parameter 3 40003 0x0002H 16-bit integer
Parameter 4 40004 0x0003H 16-bit integer
Parameter 5 40005 0x0004H 16-bit integer
Parameter 6 40006 0x0004H 16-bit integer

Remote Communication

Sort by order

2.1.5 Equipment box main unit

product name GZ
Installation The cabinet is installed on the ground, with a base.
Dimensions 600X500X250mm
shell material 304 stainless steel.
Protection level IP54
powered by AC220V; internal power adapter AC220 to DC12V/3A
water intake 2-point water purifier PE pipe with an outer diameter of φ6.5, flow rate 500mL/min, pressure 0.1-0.2MPa
Outlet 2-point water purifier PE pipe with an outer diameter of φ6.5, flow rate 400mL/min
Sewage outlet 2-point water purifier PE pipe with an outer diameter of φ6.5, flow rate 100mL/min (manual regular drainage is also possible)
Supporting sensor (optional)

PH: 0-14

Dissolved oxygen: 0-20mg/L

Turbidity: 0-40NTU

Conductivity: 0-5000us/cm

Temperature: 0°C ~ 50°C

3. Product size of Water quality monitor system for drinking water

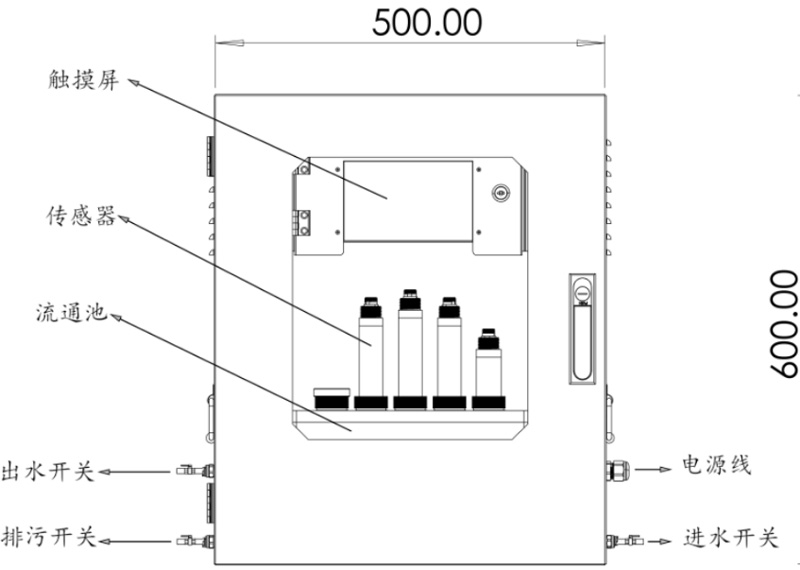

Water quality monitor system for drinking water front view

Water quality monitor system for drinking water front view

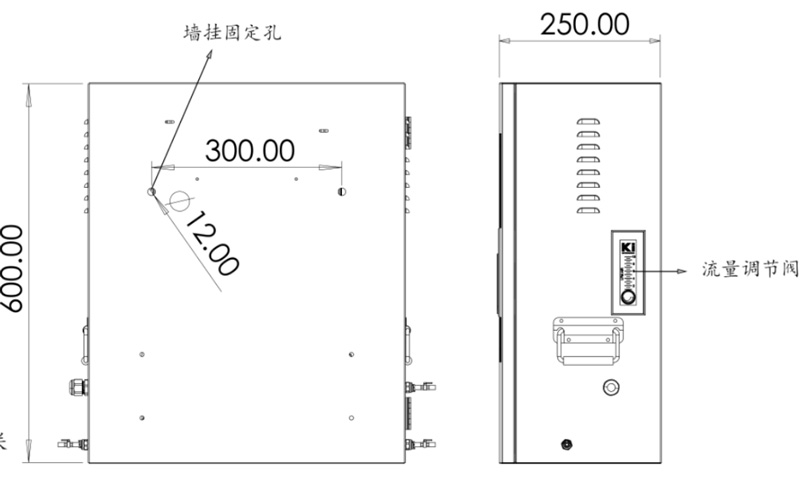

Water quality monitor system for drinking water side view

Water quality monitor system for drinking water side view

4. Installation of Water Quality Monitor System for Drinking Water Equipment

Installation of Water Quality Monitor System for Drinking Water Equipment

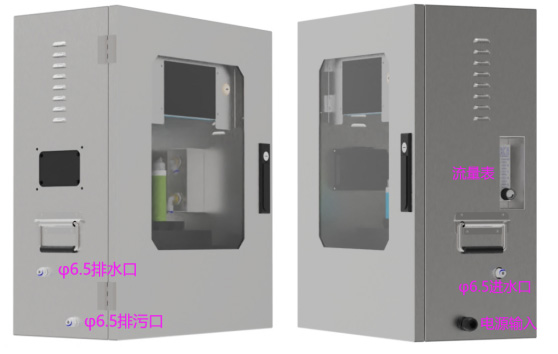

Equipment overall picture

Equipment overall picture

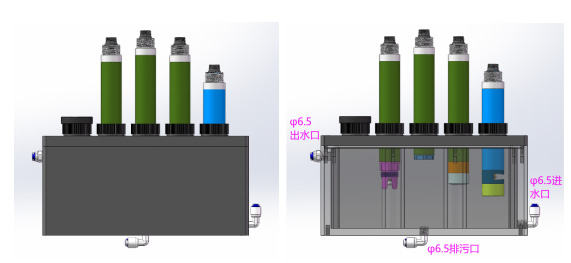

Schematic diagram of the internal measurement unit

5. Maintenance of Water Quality Monitor System for Drinking Water

When using for the first time or after a long period of disuse,

The pH sensitive bulb and reference junction should be immersed in 3.3 mol/L KCl solution for more than 2 hours.

When using, it should be washed with deionized water (or distilled water) and wiped dry to prevent impurities from entering the measured liquid. 1/3 of the sensor should be inserted into the measured liquid. The terminal part should be kept clean and dry. The sensor should be cleaned when not in use, and inserted into a protective cover with 3.3mol/L KCI solution, or the sensor should be inserted into a container with 3.3mol/L KCI solution. Check whether the terminal is dry. If there are stains, please wipe it with anhydrous alcohol and continue to use it after drying. The sensor should avoid being immersed in deionized water, protein solution, strong acid and alkali solution, and acid fluoride solution for a long time, and prevent contact with silicone grease. The glass membrane of the sensor that has been used for a long time may become translucent or have sediment. At this time, it can be washed with dilute hydrochloric acid and rinsed with water. When the sensor has been used for a long time and measurement errors occur, it can be calibrated and corrected by cooperating with the instrument. When the above methods are used to maintain and service the sensor and still cannot be calibrated and measured, it means that the sensor has failed. Please replace the sensor.

Conventional conductivity electrodes need to be cleaned and calibrated periodically. The maintenance cycle is determined by the customer based on their working conditions. Conventional electrode cleaning method: Use a soft brush to remove attachments (be careful to avoid scratching the electrode surface), then clean with distilled water, and then perform calibration operations.

The ORP sensitive bulb and reference junction should be immersed in 3.3 mol/L KCl solution for more than 2 hours.

When using, it should be washed with deionized water (or distilled water) and wiped dry to prevent impurities from entering the measured liquid. 1/3 of the sensor should be inserted into the measured liquid. The terminal part should be kept clean and dry. The sensor should be cleaned when not in use, and inserted into a protective cover with 3.3mol/L KCI solution, or the sensor should be inserted into a container with 3.3mol/L KCI solution. Check whether the terminal is dry. If there are stains, please wipe it with anhydrous alcohol and continue to use it after drying. The sensor should avoid being immersed in deionized water, protein solution, strong acid and alkali solution, and acid fluoride solution for a long time, and prevent contact with organic silicone grease. If the platinum sheet of the electrode is stained with grease, it can be gently wiped clean with absorbent cotton dipped in acetone or alcohol. If the contamination is an insoluble inorganic substance, it can be scrubbed with 30-50% hydrochloric acid. It can also be wiped once a day with clean high-grade toilet paper. When the sensor has been used for a long time and measurement errors occur, it can be calibrated and corrected by using the instrument. If the sensor cannot be calibrated and measured after the above maintenance and care, it means that the sensor has failed. Please replace the sensor.

Dissolved oxygen sensor outer surface: Rinse the outer surface of the sensor with clean water. If there is still dirt remaining,

Please wipe with a damp soft cloth. For some stubborn dirt, you can add some household detergent to the water to clean it. Fluorescent membrane head surface: If there is dirt on the surface of the fluorescent membrane head, please rinse it with clean water or wipe it gently with a soft cloth. Pay attention to the strength when cleaning to avoid scratching the measuring area and affecting the measurement accuracy. Avoid the inner surface of the fluorescent membrane from being exposed to sunlight or strong light. Do not touch the fluorescent membrane with your hands or sharp objects. Avoid bubbles on the surface of the fluorescent membrane when using it.

Turbidity sensor maintenance: If the sensor needs to be cleaned, it can be cleaned with warm water and an appropriate amount of detergent.

Note: Avoid strong vibrations that damage the front transparent glass, and do not scratch it with hard objects.
