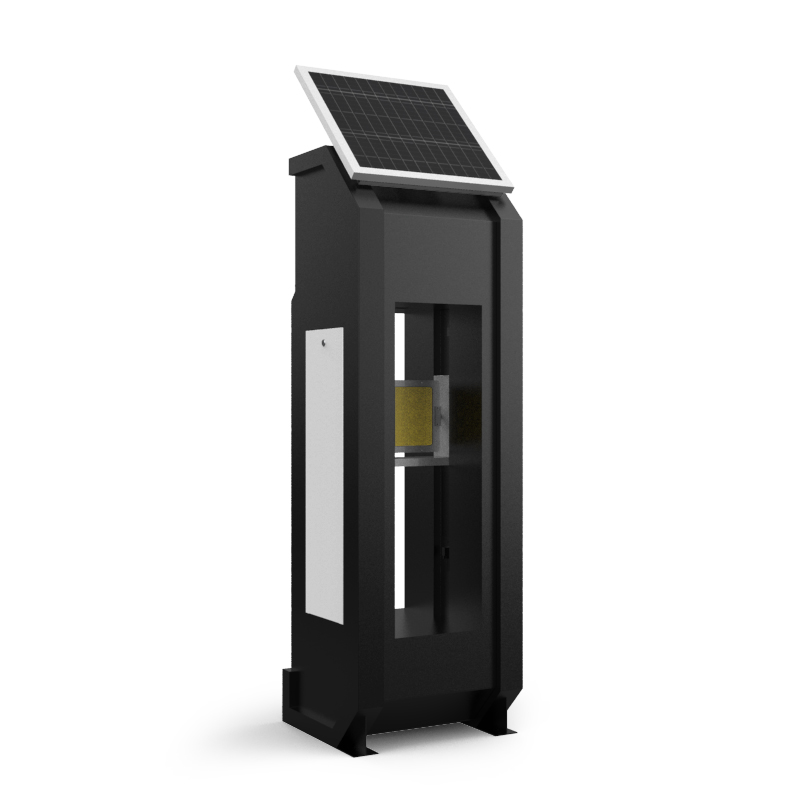

Wheat aphid monitor

1.Wheat aphid monitor product description

Wheat aphid monitor uses advanced sensor technology to monitor aphid activity in wheat field and field environment in real time.Aphids can harm wheat leaves, stems, and ears, affecting wheat photosynthesis and nutrient absorption and conduction, causing a decrease in thousand-grain weight and resulting in reduced yield.Wheat aphid monitor is developed based on the principle that aphids are sensitive to specific colors.The device integrates automatic adjustment of color plate height, automatic rotation, automatic photography, and automatic data upload.It also monitors meteorological data in an integrated manner to study the relationship between aphid outbreaks and meteorology.

2.Wheat aphid monitor performance characteristics

1.Adopt optical, electrical and numerical control technology for automatic control.

2.7-inch color Chinese LCD capacitive touch screen operation; can be set and controlled in different time periods, both automatic and manual photography are possible; Android system intelligent control, ambient temperature, humidity and time display.

3.Equipped with 1200W pixel image acquisition equipment, the camera can collect the situation of insects on the color plate in real time, and the clarity of the captured image can meet the requirements of manual identification of insect species.

4.Equipped with a liftable insect attractant device, which can automatically or manually raise or lower the insect attractant height of the color plate.

5.Various parameters of the instrument can be remotely configured through the server, which is convenient for maintenance and management.

6.Built-in GPS or Beidou positioning function, you can view data such as equipment site on the map.

7.Power supply mode: solar power supply, solar energy and battery combination (DC type).

8.Equipped with various environmental sensors such as wind speed, wind direction, air temperature, air humidity, rainfall, etc.

9.Network mode: A variety of networking modes 4G\WIFI\wired can be selected at will, and network management can be carried out anytime and anywhere.

10.You can view device data through PC, APP, WeChat and other methods.

3.Wheat aphid monitor technical parameters

1.Power supply: Solar panel power: 60W, battery specification: 12V 24AH

2.Power consumption: ≤50W

3.Insect attractant: color plate

4.Insulation resistance: ≥2.5 MΩ
