Fengtu FT-ZS1S Water Quality COD Analyzer: Advanced Multi-Parameter Monitoring Solution
The FT-ZS1S Water Quality COD Analyzer by Fengtu is a powerful and versatile water quality monitoring device designed for precise, real-time analysis across diverse applications.
Key Features
Integrated Functionality:
Combines COD sensor, measurement module, communication, and storage capabilities for rapid, accurate parameter recording.
Supports expandable multi-parameter sensors (COD, ORP, pH, dissolved oxygen, conductivity, turbidity, ammonia nitrogen, temperature, etc.) for customizable configurations.
Data Management:
Stores historical monitoring data and alarm logs, with export to .xlsx format.
RS485 interface with MODBUS-RTU protocol enables seamless integration with PLC, DCS, SCADA systems, and DTUs.
Robust Performance:
Applications: Ideal for water treatment plants, groundwater/river/lake/ocean monitoring, sewage treatment, industrial processes, and research.

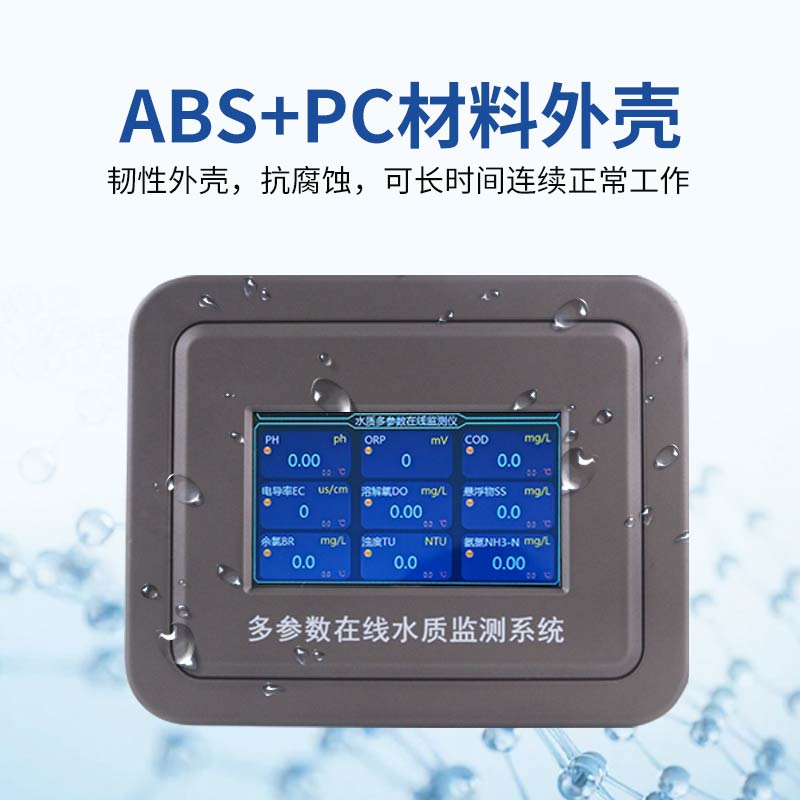

Durability: Built for long-term field use with stable measurements, high anti-interference, and corrosion-resistant ABS+PC housing.
Flexibility: Modular sensor design allows plug-and-play replacement and scalable configurations.
User-Friendly Interface:
4.3-inch LED-backlit touchscreen for easy operation in direct sunlight.
DC 12V power supply (12V/1W low power consumption) with audible alarm.
Technical Specifications
COD Measurement:
Method: Dual-light UV254 absorption method.
Range: 0–200 mg/L or 0–500 mg/L (selectable).
Resolution: 0.1 mg/L.
Accuracy: ±5% ±0.3℃.
Environmental Parameters:
Temperature: Storage (-20°C to 70°C), Operation (-10°C to 50°C).
Pressure: <0.2 MPa.
Waterproofing: IP65 (instrument), IP68 (probe).
Physical Dimensions: 175mm × 140mm × 49mm (L×W×H), ~0.5 kg.
Probe Features:
Immersion installation with NPT 3/4 thread.
Automatic cleaner included.
Standard 5m cable.
Versatile Applications
Suitable for both on-site rapid testing (e.g., emergency monitoring) and long-term online surveillance in challenging environments, with compact design for space-constrained installations.
Fengtu FT-ZS1S: Empowering water quality management through precision, scalability, and reliability.
