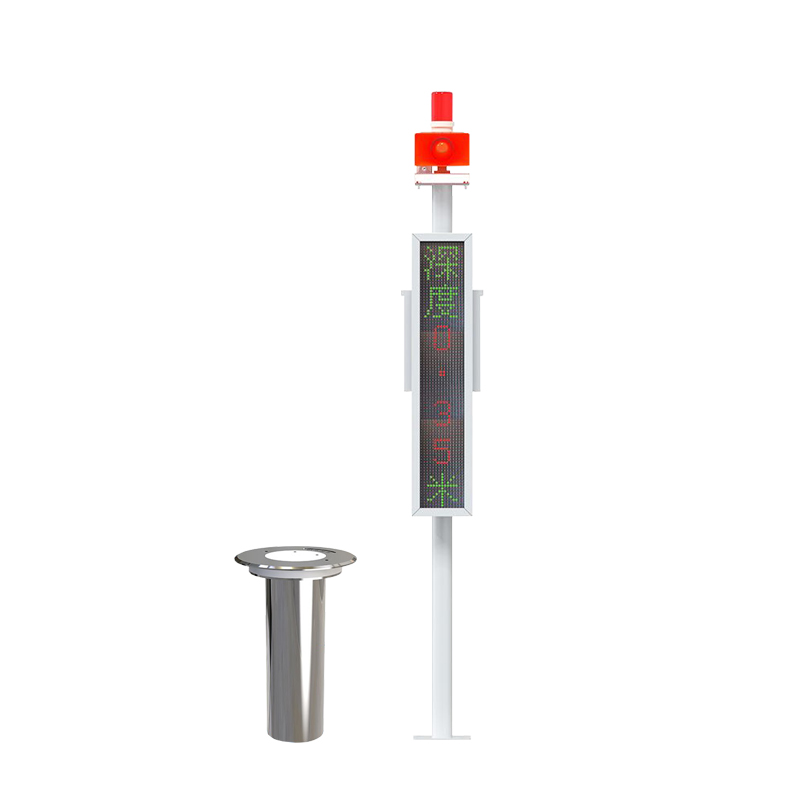

Road Water Accumulation Monitoring Station
Model：FT-JS1
Brand：fengtu
Get a Free QuoteRelated products
Product details
1.Road Water Accumulation Monitoring Station Product Introduction
Road Water Accumulation Monitoring Station can monitor the point rainfall, water level and road accumulation in real time, and issue early warning information.The underground urban waterlogging monitoring system is supported by Internet of Things technology and is an intelligent monitoring system integrating "intelligent perception and intelligent services".
The system consists of a monitoring host, pole bracket, power supply system, Road Water Accumulation Monitoring Station, LED two-color display screen and cloud platform. It mainly provides real-time monitoring and early warning services for urban roads, ground, tunnels, interchanges and other places prone to water accumulation.
The system uses highly integrated integrated water accumulation monitoring equipment to monitor the water level of low-lying sections of urban roads in real time and realize automatic alarm. By integrating the data of various monitoring points, the system can grasp the waterlogging situation of the entire urban area and conduct drainage scheduling in a timely manner. The municipal management department can use the system to carry out regular monitoring, early warning, and early preparation, and take corresponding measures for places that may be flooded due to heavy rains, reduce the probability of urban flooding, and provide early warning for people in areas with rising water levels. The traffic management department can obtain the real-time water level of each section of the road through the system, and use radio, television and other media to provide travel guides for the general public to prevent people and vehicles from mistakenly entering deep water sections, reduce the economic losses of the masses, and protect the personal safety of the masses.
2. Application scope of Road Water Accumulation Monitoring Station
It can be used in urban management, municipal traffic roads, residential areas, low-lying areas, underground parking lots, logistics parks, agricultural irrigation areas, tourist attractions and other places, and can also be used in smart city construction.
3. Technical Parameters of Road Water Accumulation Monitoring Station
1. Host part
| powered by | AC220V | |
| Power supply mode | Mains or solar power supply | |
| Device power consumption | ≤25 W | |
| Operating temperature | -40~80℃ | |
| Device interface | Interface Type | illustrate |
| LED screen display interface | Dual-color LED display (maximum dots 96*16) | |
| Uplink 485 acquisition | 485 communication distance 2000 meters | |
| Two switch quantity interfaces (reserved) | Voltage input range: 0~5V | |
| Two analog interfaces (reserved) | Acquisition range: 4-20mA, 0-5V, 0-10V default 4-20mA | |
| One-way water immersion detection (reserved) | Can detect the presence of water | |
| Two relay interfaces | Relay capacity: 250VAC/30VDC 3A, one channel can be set to active or passive, used for alarm or automatic control | |
| Alarm equipment | Support sound and light alarm | Support voice broadcast |
| LED screen | Size 102cm*22cm dual color screen | |
| Equipment bracket | 2m pole | |
| Electric control box | Used to place remote telemetry terminals and power supplies | |
2. Road Water Accumulation Monitoring Station part
| Power supply mode | Built-in battery power supply (3.6V lithium battery) |
| Battery life | It can work continuously for 5 years without water accumulation |
| Water level range | ≤1.5m |
| Water level error | 1cm |
| Resolution | 1mm |
| Output signal | LORA wireless spread spectrum signal |
| Shell material | 304 Stainless Steel |
| Protection level | IP68 |
| Installation | Underground installation |
