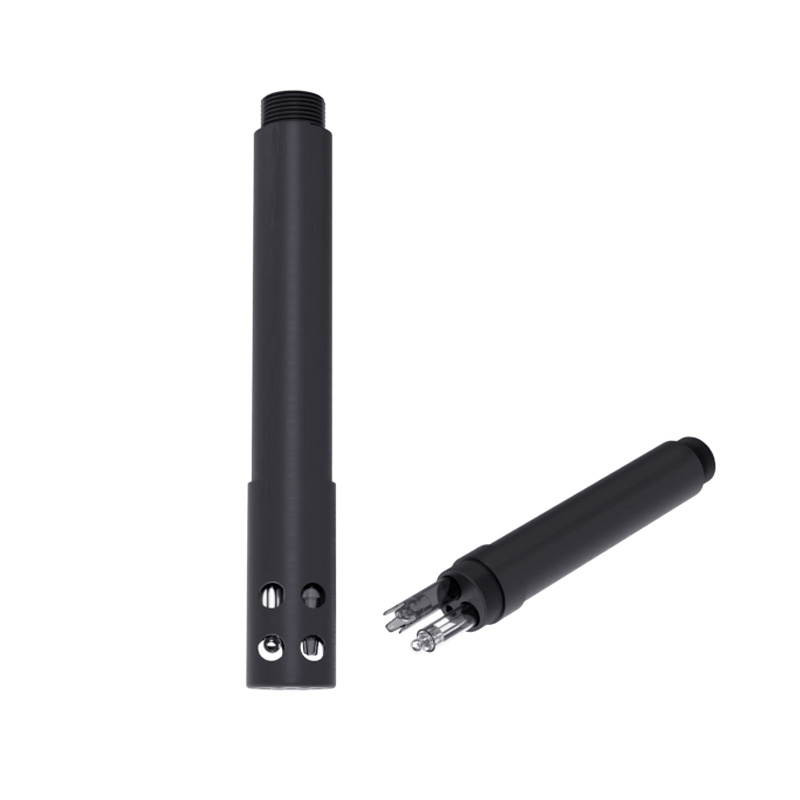

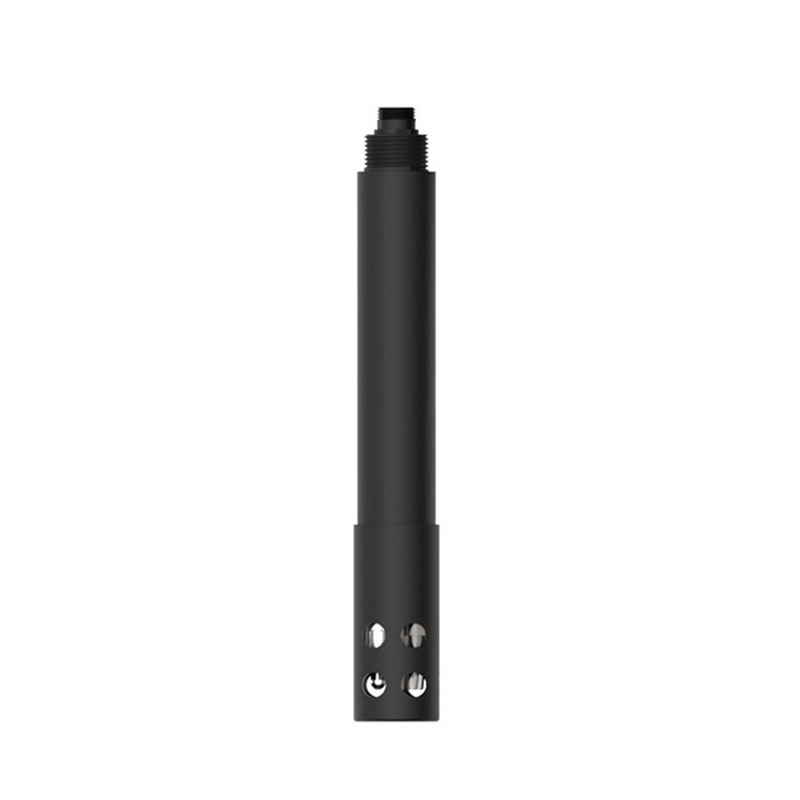

Residual Chlorine Sensor

1. Residual Chlorine Sensor Application Environment Description

Residual Chlorine Sensor provides high accuracy measurement in drinking water, pool water and process water for high long-term stability.Residual Chlorine Sensor is used in drinking water treatment plants, bottling plants, drinking water distribution networks, swimming pools, cooling water circulation, water quality treatment projects and other places where the residual chlorine content in aqueous solutions needs to be continuously monitored.

2. Technical Parameters of Residual Chlorine Sensor

3. Electrical connection of Residual Chlorine Sensor

1. Installation

Use the matching flow cell for installation. The sensor and the flow cell should be installed tightly. Make sure that the measuring part of the sensor is placed near the water inlet of the flow cell and not facing the water outlet as much as possible. Ensure a stable flow rate. It is recommended that the flow rate be controlled at 30-60L/h to ensure the accuracy of the test.

2. Electrical connection

The cable is a 4-core twisted pair shielded cable, and the line sequence definition is:

Red line - power line (12 ~ 24VDC)

Black wire - ground wire (GND)

Blue line—485A

Green Line—485B

Note: The cable color may vary slightly due to different production batches. Please refer to the cable silk screen for specific details.

The wiring sequence should be carefully checked before powering on to avoid unnecessary losses due to wiring errors.

4. Maintenance and care

1.PH electrode

When using for the first time or after a long period of non-use, the sensitive bulb and reference liquid junction should be immersed in 3.3mol/L KCI solution for more than 2 hours. When using, they should be washed with deionized water (or distilled water) and wiped dry to prevent impurities from entering the measured liquid.

The wiring terminal part should be kept clean and dry. The sensor should be cleaned when not in use and inserted into a protective cover filled with 3.3 mol/L KCI solution, or the sensor should be inserted into a container filled with 3.3 mol/L KCI solution.

Check whether the wiring terminals are dry. If there are stains, wipe them with anhydrous alcohol and continue to use them after they are dry. The sensor should avoid being immersed in deionized water, protein solution, strong acid and alkali solution, and acidic fluoride solution for a long time, and prevent contact with silicone grease. The glass membrane of the sensor that has been used for a long time may become translucent or have sediment. At this time, it can be washed with dilute hydrochloric acid and rinsed with water.

When the sensor has been used for a long time and measurement errors occur, it can be calibrated and corrected by using the instrument. If the sensor cannot be calibrated and measured after the above maintenance and care, it means that the sensor has failed. Please replace the sensor.

2. Residual chlorine electrode

New electrodes and electrodes that have been stored for a long time need to be activated before use. Place the sensor in tap water and let it stand for 24 hours. If the returned value is inaccurate, you need to do the following:

Zero and slope calibration of the sensor

Return to factory for inspection
