Spore Capture Analyzer

Name: Spore Capture Analyzer

Spore Capture Analyzer is an intelligent instrument designed to capture, identify and analyze airborne pathogen spores in real time.

Comply with the standard: Comply with GB/T24689.32009 Plant Protection Mechanical Spore Capture Instrument (Device) standard

Main functions: It can be fixed in the monitoring area to observe the types and quantities of spores in a specific area. It is used to monitor the stock of disease spores and their spread dynamics, and provide reliable data for predicting and preventing the spread and infection of diseases. It is a special equipment for crop disease detection that the agricultural plant protection department should be equipped with.

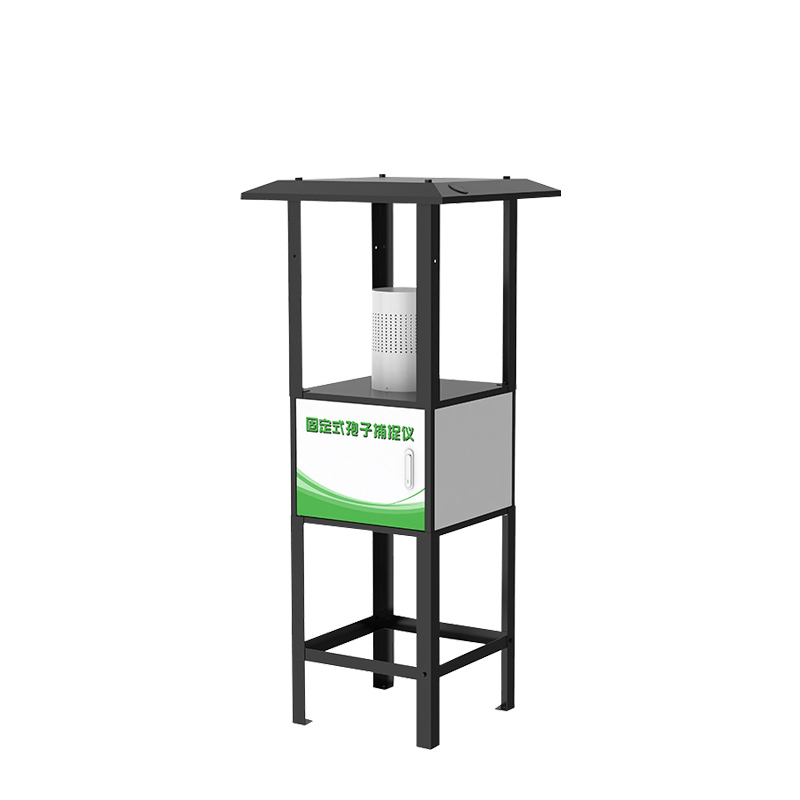

Main structure of Spore Capture Analyzer: The main body is made of plastic-sprayed metal and consists of a rainproof cover, a filter, a main box, and a bottom bracket.

Power supply voltage: 220VAC or solar power supply system

Average power consumption: ≤7w

Working environment: -30℃～70℃, 0~95% (relative humidity), no condensation

Machine size: 700*700*1665mm;

Slide: 75*25mm, the slide needs to be coated with vaseline and gently placed on the slide under the vent. The experimenter needs to manually replace the slide. When observing spores, the slide is brought back to the laboratory for cultivation and observation. The slide can be reused and needs to be cleaned and disinfected before reuse.

Air collection speed: 0.3~5m/s

Configuration method: Provide a dedicated configuration APP to configure device parameters via Bluetooth contactless

Spore Capture Analyzer working modes:

①. Continuous working mode: The device starts working when it is powered on and stops working when the power is off

②. Intermittent working mode: work for N hours -> stop for M hours, and then work repeatedly in a cycle. The work stop time can be flexibly set.

③. Timing working mode: work for 1 hour -> stop for 0.1 hour, and then work repeatedly in a cycle

Rain and snow control: Equipped with a rain and snow sensor by default, the rain control function is turned on by default, and it automatically stops working in rainy and snowy weather. It can be set to off.

Light control: Equipped with a light intensity sensor by default, the light control function is turned off by default and can be set to on. After turning it on, the device starts working when it recognizes that the light intensity is less than the set value.

Note:

(1) The installation location of the spore detection cabinet should be selected on a flat hard cement platform to ensure that the installation location is flat and should not be tilted.

(2) After the equipment is installed, the equipment casing must be grounded.

(3) Keep away from high-power interference equipment as much as possible to avoid affecting the normal operation of the equipment, such as inverters/motors, etc.
