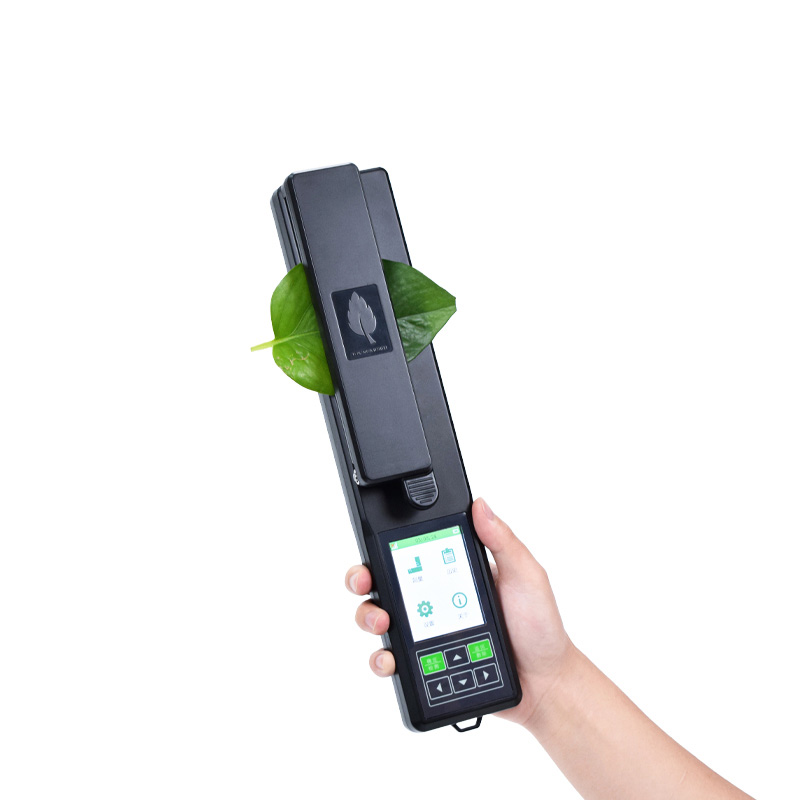

Automatic Leaf Area Meter

Automatic Leaf Area Meter host introduction:

Automatic Leaf Area Meter is a simple, fast and accurate measurement of the area of various blades, both in vitro and in non-isolated blades.YMJ series Automatic Leaf Area Meter is a newly developed product. It is a portable instrument that is easy to use and can work in the field. It can accurately, quickly and non-destructively measure the leaf area and related parameters of leaves, and can also measure the area of picked plant leaves and other sheet-like objects. It is widely used in agriculture, meteorology, forestry and other sectors.

The instrument can directly measure the length, width and area of the blade, and has integrated GPS positioning and 4G wireless transmission systems. It has added a Type-C interface, which can import measurement data and positioning information into computers and cloud data platforms at the same time, making it convenient for researchers to further process the data.

Automatic Leaf Area Meter Model Differences:

Automatic Leaf Area Meter Usage:

YMJ series leaf area measuring instrument is a portable instrument that is easy to use and can work in the field. It can accurately, quickly and non-destructively measure the leaf area and related parameters of leaves. It can also measure the area of picked plant leaves and other sheet-like objects. It is widely used in agriculture, meteorology, forestry and other departments.

Automatic Leaf Area Meter features:

1) The main unit and probe are integrated into one design, making operation more convenient.

2) Adopting microcomputer technology and large LCD display.

3) High-performance large-capacity battery, no external power supply required, low voltage display, sustainable measurement is more suitable for field measurement.

4) A large leaf area can be measured at one time (2000*155mm2)

5) Can store 5000 sets of data (leaf area, leaf length, leaf width).

6) Various leaf parameters can be measured: leaf area, average leaf area, leaf length and leaf width.

7) Communication interface: Type-C interface, data can be imported into the computer. (This function is only available for B and G models)

8) GPS positioning: integrated high-speed GPS positioning module, uploaded data comes with time, longitude and latitude information, convenient and more efficient data processing. (This function is only available for G model)

9) 4G wireless transmission: The measurement data can be uploaded to the cloud platform in real time, and the measurement time, blade area and other data can be viewed. The bar chart analysis of different parameters can be performed. The data can be exported in the form of EXCEL tables, and the data can be printed online. The data can be displayed according to the selected time period, and the data can be analyzed in tables, bar charts, etc. and downloaded online. (This function is only available for G model)

Automatic Leaf Area Meter Technical Parameters:

(1) Area unit: cm2

(2) Resolution: 0.01cm2

(3) Measurement accuracy: ±2%

(4) Width range: 0~155mm

(5) Length range: 0~2000mm

(6) Data record: 0 to 5000 groups

(7) Power supply: lithium battery (built-in) 3200mA + (external replaceable) 1400mA

Automatic Leaf Area Meter configuration list:

YMJ-A/B: host, aluminum box, data cable, charger, USB flash drive (host computer software, operation video, electronic manual), lanyard, manual, certificate of conformity

YMJ-G: host, aluminum box, data cable, charger, USB flash drive (host computer software, operation video, electronic manual), 4G IoT card (2 years), lanyard, manual, certificate of conformity

Automatic Leaf Area Meter Quality Assurance:

1. All goods provided by the company are original and authentic.

2. The company's after-sales service hotline is: 0536-2109028. We will reply you within 12 hours after receiving the call and try our best to solve all your confusion and problems.

3. 1-year warranty. If there are major quality problems within three months, we will replace the machine with a new one or repair it. We provide one-year warranty, and no fees are charged during the warranty period. We provide lifelong maintenance services, and only charge the cost after the warranty period. Our company can provide good technical support and preferential supply of spare parts for a long time.
