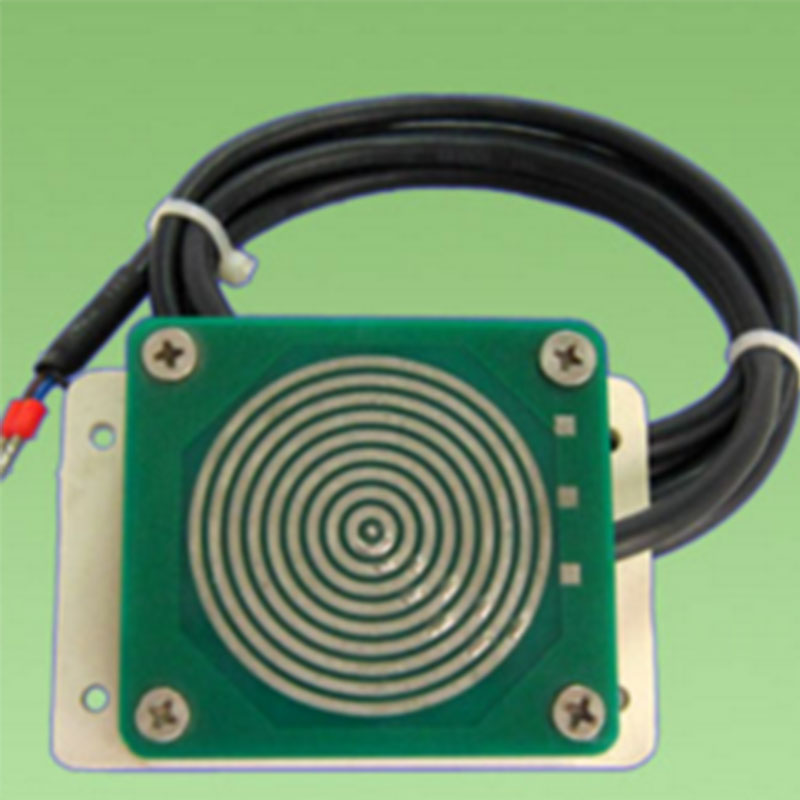

Rain and Snow Sensor

Rain and Snow Sensor Product Introduction:

Rain and Snow Sensor is a measuring device that uses the electrical conductivity of rainwater to measure whether it rains or snows outdoors or in nature.Measure the presence or absence of rain and snow, with a response time of ≤0.5S.

AC measurement technology prevents oxidation of the sensing disc and ensures long-term sensitivity.

IP68 protection grade design, can work outdoors for a long time.

A variety of transmission methods are available, providing 485 upload or switch output to facilitate centralized monitoring.

The optional automatic heating function can be used for snow detection to prevent ice formation in places where the temperature is below 0 degrees for a long time and in high humidity environments.

When heating, the temperature is strictly controlled within 40℃ (default) to prevent dry burning and overoxidation, thus extending the service life.

The sensor sensitivity is adjustable, making it more flexible to use.

Alarm and reset delays can be set to avoid frequent alarms on site.

Power supply: 10~30V DC

Normal operating power: 0.4W

Storage environment: -40℃~80℃

Working power when heating: 2.4W

Working temperature: -40℃~60℃

Output signal: 485, relay

Default modbus address: 01

Support function codes: 03, 06

Heating start ambient temperature: <15°C (default) Maximum heating temperature: 40°C (default)

Output relay load capacity: 250VAC 1A/30VDC 1A
