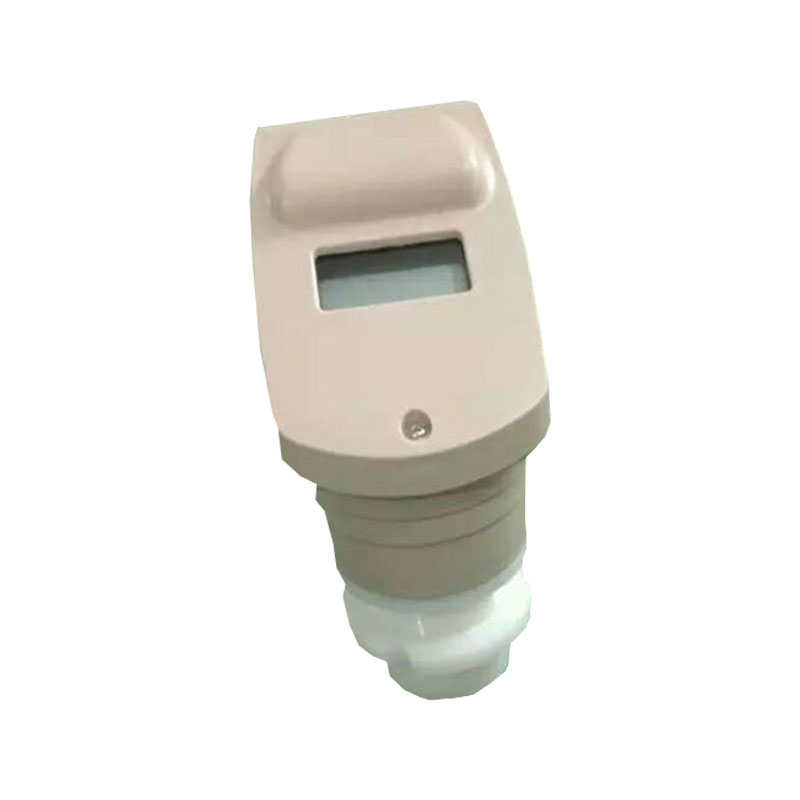

Ultrasonic level meter

1.Ultrasonic level meter overview

Ultrasonic level meter is used for non-contact level measurement of liquids, slurries and solids, especially for water and sewage industries.Thank you very much for choosing our Ultrasonic level meter!

This instrument contains a number of patented technologies and has the characteristics of safety, cleanliness, high precision, long life, stability and reliability, easy installation and maintenance, etc. It is suitable for various fields such as acid, alkali, salt, corrosion resistance, and high temperature.

This instrument can be connected to the display table or various DCS systems via 4~20mA or RS485 (Modbus protocol or other customized protocols) to provide real-time material level data for industrial automation operation.

This instrument has the following features:

The circuit design uses high-quality power modules from the power supply part, and the components are imported highly stable and reliable devices, which can completely replace the same type of imported foreign instruments.

The patented acoustic intelligent technology software can perform intelligent echo analysis without any debugging or other special steps. This technology has the functions of dynamic thinking and dynamic analysis.

Our company owns the patented intelligent sonic technology and adopts automatic temperature compensation. The accuracy of the meter is greatly improved, the material level accuracy reaches 0.8%, and it can resist various interference waves.

This instrument is a non-contact instrument that does not come into direct contact with the material, so the failure rate is low. The instrument provides a variety of installation methods, and users can calibrate the instrument according to this manual.

All input and output lines of the instrument have lightning protection and short circuit protection functions.

2. Ultrasonic level meter technical indicators

Measuring range: 0~10m (selected according to the actual measuring range)

Blind area: 0.25m～0.6m

Distance measurement accuracy: 0.3% (standard conditions)

Distance measurement resolution: mm

Pressure: Normal pressure

Instrument display: LCD display of material level or space distance

Analog output: 4~20mA

Digital output: RS485, Modbus protocol or customized protocol

Power supply voltage: DC24V/AC220V, built-in lightning protection device

Ambient temperature: -20℃～+60℃

Protection level: IP65
