Spore Trapper

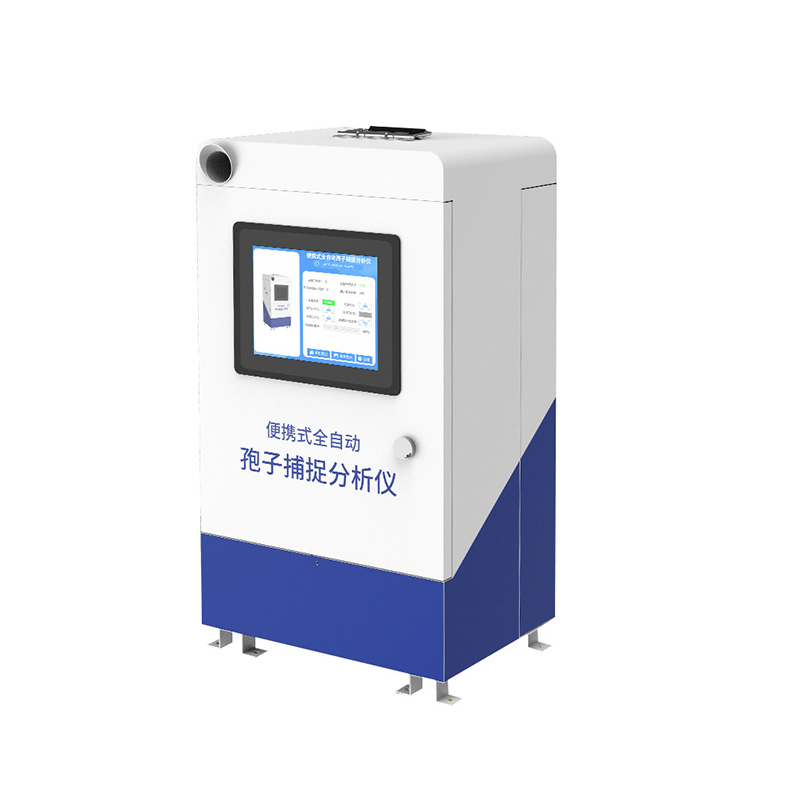

1.Spore Trapper Product Introduction

Spore Trapper automatically takes real-time online photos of captured pathogen spores and uploads them to the system platform remotely.The device uses high-power optical microscopic imaging technology, precision limiting technology, automatic intelligent focusing fusion technology, Internet of Things transmission control technology and other technical means to photograph tiny spore targets and upload the pictures to the designated agricultural cloud platform in real time. The platform uses image optimization algorithms to accurately process and analyze uploaded pictures.

2. Spore Trapper Product Features

1. The spore equipment has horizontal and vertical dual-axis motors inside

2. Built-in slide, the slide can cumulatively display the current usage level. When the slide is about to run out, the platform can remind you to replace the slide when it expires. The slide can be manually reset, and the reset is password protected. The slide can be manually replaced

3. The interface can display the progress of single sampling of slides in real time;

4. The working mode can be set from the interface: divided into automatic and manual modes;

5. The device is equipped with a high-resolution microscope that can clearly capture and display 5~100um spores.

6. Through the special air duct air circulation design, the air inlet and outlet form an air duct to ensure the air circulation, effectively reduce the collection repetition rate, shorten the sampling time, and improve the collection efficiency. The air inlet sampling time can be set for a single sampling.

7. The working time and sampling frequency can be set arbitrarily;

8. The spore capture instrument has a built-in 10.4-inch high-definition large screen display and Windows operating system, which has a good human-computer interaction interface. It supports local viewing of photos, configuration of device parameters, control of devices, etc.

9. Statistical analysis: Cloud server technology is used to achieve manual statistics and analysis of pathogen spore images, which can be viewed and confirmed remotely in real time, shortening the prediction cycle.

10.Support automatic time synchronization with the server

3. Spore Trapper Technical Parameters

1.Main structure: plastic spraying material

2. Supply voltage: 220VAC, optional 480w 200ah solar power supply

3. Maximum startup power: ≤65W; stable working power: ≤50W; standby power ≤26.4W

3. Overall size: 420.0*308.7*787.7mm

4. Communication method: 4G upload, based on cellular network, TCP/IP method to upload data, support dynamic domain name resolution DNS, just insert a mobile phone card to upload data to the remote monitoring software platform

5. Working environment: -20-70℃, 0-95% (relative humidity), no condensation

6. Built-in glass tape: one replacement can be used continuously for up to 365 days, 3 shots per day

7. Insulation resistance ≥ 2.5MΩ (leakage protection)

8. Camera: 800W pixels

9. Operating system: WINDOWS

10. Gas sampling: collection time 60~1200 minutes (setting range), collection area: length*width (mm) 50*21mm;

11. Working time setting: timed start, 24-hour system, you can set the 24-hour opening time at will;

4. Spore Trapper Cloud Platform

1. It has the functions of remote real-time viewing and control, and real-time analysis of spores

2. The working mode of the spore automatic capture analyzer can be switched remotely in real time, automatic and remote photography can be realized, and the carrier band usage warning function can be realized

3. In automatic mode, the start working time, working time, sampling time, working interval, number of pulses of single movement distance of carrier wave, etc. of the spore automatic capture analyzer can be set, and can be sent to the device remotely.

4. In remote control mode, the air inlet, exhaust port, sampling port, light source status and carrier belt motor status of the spore automatic capture analyzer can be remotely controlled
