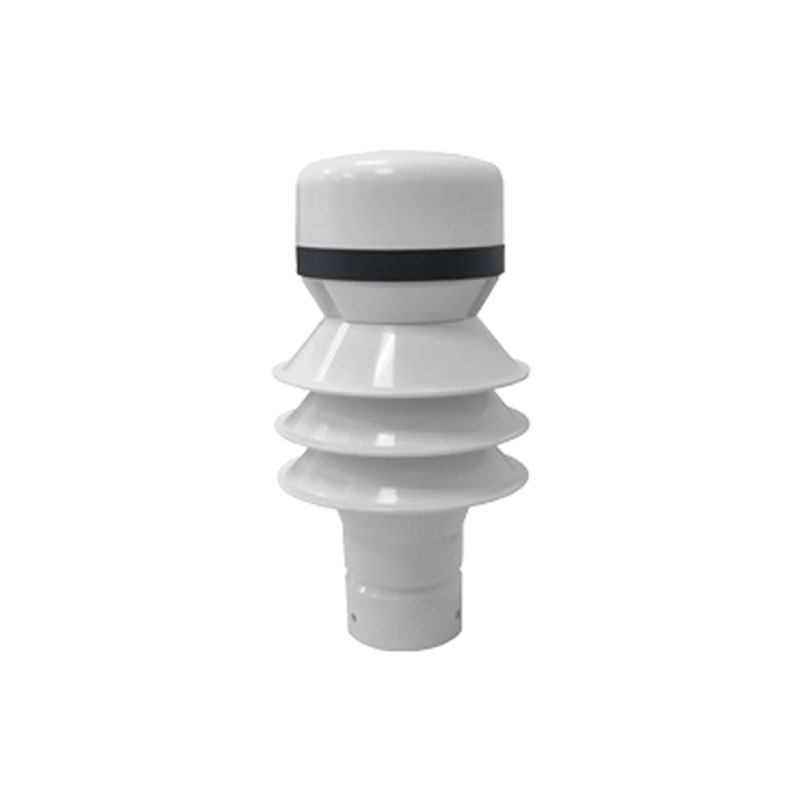

Radar Precipitation Sensor Rain Gauge Distrometer
Model：YL4
Brand：fengtu
Get a Free Quote
Product details
Radar Precipitation Sensor Rain Gauge Distrometer Product Introduction
Radar Precipitation Sensor Rain Gauge Distrometer The radar precipitation sensor Rain Gauge distrometer is used for monitoring precipitation in meteorological, hydrological, and agricultural departments.The Radar Precipitation Sensor Rain Gauge Distrometer uses an advanced small flat-panel radar module, which uses 24GHz Doppler radar wave technology to measure the falling speed of raindrops. It can distinguish the types of rain, snow and hail and the intensity of rainfall according to the particle size and falling speed of precipitation droplets. The YL4Radar Precipitation Sensor Rain Gauge Distrometer is more sensitive and faster than traditional mechanical rainfall detection methods to detect the start and end time of rainfall. There is no need to worry about objects such as leaves covering the surface of the detector affecting rainfall detection, and there is no need for a heating device to prevent icing. The YL4Radar Precipitation Sensor Rain Gauge Distrometer has no moving parts inside, is almost maintenance-free, and is small in size and has extremely low energy consumption.
Radar Precipitation Sensor Rain Gauge Distrometer Application
Weather station rainfall detection
Smart City System
River flood monitoring
Radar Precipitation Sensor Rain Gauge Distrometer Main Indicators
| model | YL4 |
| Measurement Type | Rain, snow, hail |
| Measuring range | 0-200mm/hour (rainfall) |
| measurement accuracy | 5%(@wind speed <5m/s) |
| Particle size range (raindrop size) | 0.5-5.0mm |
| Rainfall resolution | 0.1mm |
| Sampling frequency | 1 second |
| Communication Interface | RS485, RS232 |
| Protocol | ModBus |
| power supply | 12-24VDC |
| Power consumption | Less than 2W |
| Operating temperature | -30℃－+70℃ |
| Working humidity | 0-100% |
| Dimensions | Ø82*195mm |
| Material | Aluminum alloy + ABS/ABS |
| weight | 0.65kg/0.38kg |
