Mine Water Hydrological Monitor

1.Mine Water Hydrological Monitor Product Introduction

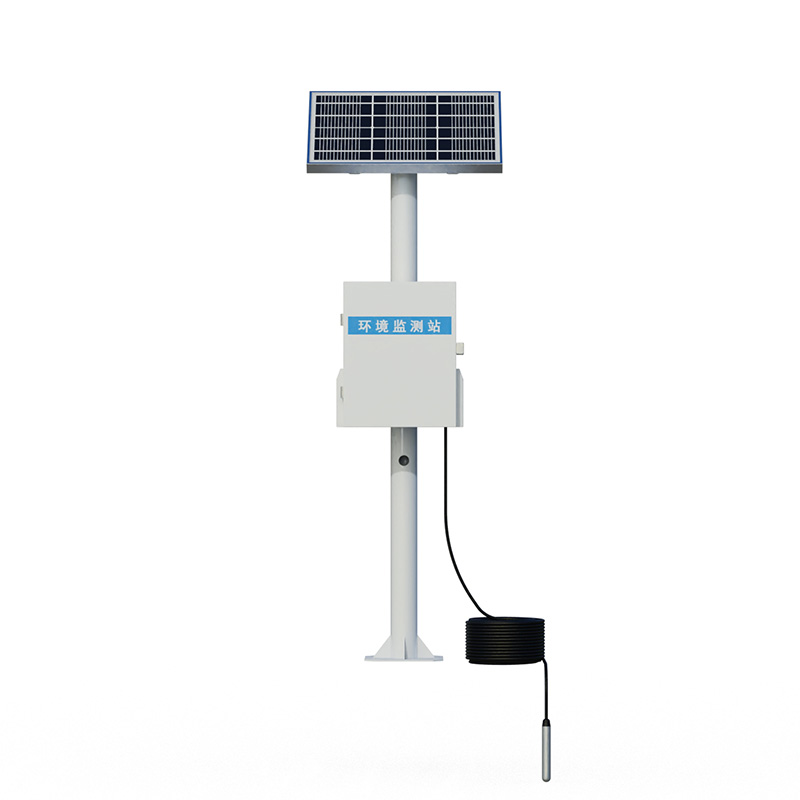

Mine Water Hydrological Monitor monitors the groundwater monitoring well of the mine in real time through the monitoring instrument to obtain data such as water level.DSW4Mine Water Hydrological Monitor is widely used in underground water deep well water level measurement, mine deep well water level measurement, geothermal well water level measurement.Its measurement range can reach 100 meters, 200 meters, 300 meters, 400 meters, mainly based on the built-in super high pressure resistance and high underground deep well water level online monitoring system sealing sensor chip, one-piece molding structure, triple lightning protection technology.The signal transmission adopts tensile grip steel wire cable to ensure that the measurement signal can be output and displayed in real time, with high precision and stability.

Mine Water Hydrological Monitor is based on the hydrostatic pressure principle that pressure is proportional to water depth.It uses water pressure sensitive integrated components to make the sensor probe of the deep well water level measuring instrument.When the sensor probe is fixed at a certain measuring point underwater, the water column pressure height above the measuring point plus the elevation of the point can indirectly measure the water level (the distance from the water surface to the wellhead); what is directly measured is the actual height of the liquid level in the deep well above the sensor probe.

2.Mine Water Hydrological Monitor Product Features

1.Reverse polarity protection and instantaneous overcurrent and overvoltage protection, in line with EMI protection requirements;

2.Use high-quality gas-conducting cables that can be immersed in water all year round;

3.Strong overload and anti-interference capabilities, economical, practical and stable;

4.The core automatic correction algorithm can effectively prevent the value fluctuation caused by water surface fluctuation;

5.The sloped liquid guide hole can effectively prevent the entry of silt and impurities, and can also prevent impact.

6.Diffused silicon piezoresistive sensor;

7.Probe immersion measurement method, simple and convenient installation;

8.Multiple protection structure design, high protection capability;

9.Made of anti-corrosion stainless steel, suitable for a variety of occasions;

10.RS485 signal output, the maximum communication distance can reach 2000 meters;

11.10~30V wide power supply voltage input.

12.The solar panel top cover is inlaid with a design that improves the photoelectric conversion efficiency and increases the wind resistance level.

13.Charging controller: MPPT automatic power point tracking, efficiency increased by 20%

14.SMS alarm, send SMS to the designated mobile phone after exceeding the limit

15.ABS material protective box, corrosion-resistant, anti-oxidation, waterproof grade IP66

3.Main technical parameters of Mine Water Hydrological Monitor

4.Introduction to Mine Water Hydrological Monitor host computer software

1.PC stand-alone version of data receiving, storage, viewing and analysis software

2.Support serial port data reception, processing and display

3.Support json string, modbus485 and other communication methods

4.The storage time can be set by yourself, and the acquisition time can be set by yourself in modbus485 acquisition mode

5.Support self-service addition, deletion, and modification of monitoring parameter protocols, names, icons, etc.

6.Support data post-processing function

7.Support external running of javascript scripts

5.Introduction to Mine Water Hydrological Monitor Android APP

1.Android stand-alone data receiving, storage, viewing and analysis software

2.Support Bluetooth data reception

3.The software receives and processes the data in the background after the phone goes into sleep mode

4.Automatically add devices with json data, and modbus devices support adding devices by scanning codes

5.Support historical data viewing, analysis, and table export, support curve display, and single data point viewing.

6.Support data post-processing function

7.Support external running of javascript scripts

6.Introduction to Mine Water Hydrological Monitor Cloud Platform

1.CS architecture software platform, supports direct observation through mobile phones and PC browsers, without the need to install additional software.

2.Support multiple accounts and multiple devices to log in

3.Support real-time data display and historical data display dashboard

4.Cloud servers and cloud data storage are stable, reliable, easy to expand, and load balanced.

5.Support SMS alarm and threshold setting

6.Support map display and view device information.

7.Support data curve analysis

8.Support data export in table format

9.Support data forwarding, HJ-212 protocol, TCP forwarding, http protocol, etc.

10.Support data post-processing function

11.Support external running of javascript scripts
