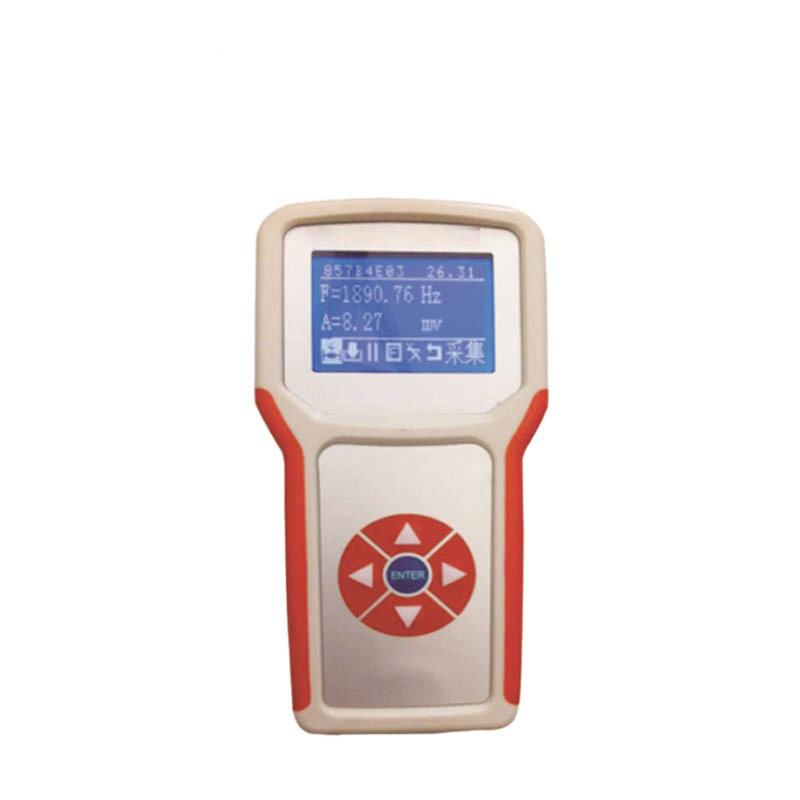

Handheld vibrating string collector

1.Product Introduction of Handheld Vibrating String Collector

Handheld vibrating string collector is used for string acquisition, and the integrated digital display device can easily read the frequency value and set the equipment on the spot.The handheld vibrating wire collector is a rock and soil in-situ monitoring instrument. It is suitable for collecting frequency signals of various single-coil vibrating wire sensors, such as pore water pressure gauges, axial force gauges, anchor cable gauges, soil pressure boxes, steel bar gauges, strain gauges, crack gauges, etc.

2. Application scenarios of Handheld vibrating string collector

Bridges, tunnels, rail transit, water conservancy

3. Product Features of Handheld Vibrating String Collector

1. Flexible operation, easy to use, rich functions, and the ability to add corresponding functions according to actual customer needs

2. Small size and light weight

3. Support USB storage

4. Strong compatibility, high stability, high reliability and high precision

4. Technical parameters of Handheld vibrating string collector

Measuring range: 400Hz～3800Hz

Resolution: 0.01Hz

Frequency accuracy: ±0.05Hz

Time base accuracy: ±30ppm

Sensor type: digital temperature sensor/analog temperature sensor

Measuring range: -55℃～+125℃/-20℃～+150℃

Temperature accuracy: ±0.5℃
