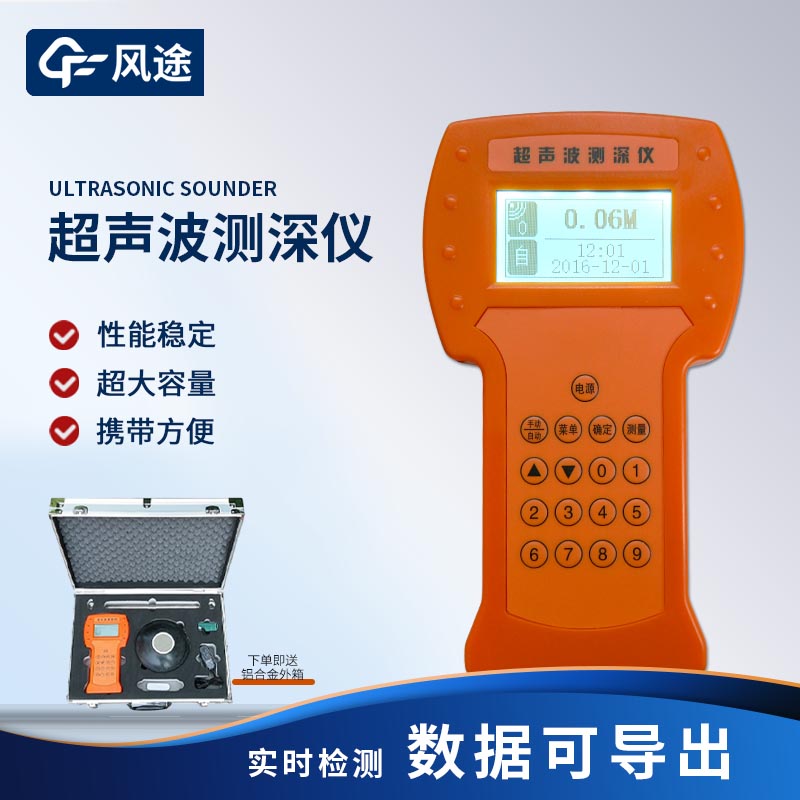

The FT-CS150 Portable Ultrasonic Water Depth Meter is a handheld device that combines many years of manufacturing experience and technological advantages, and is designed for measuring the depth of various bodies of water. It utilizes the fixed speed of sound of ultrasonic waves in water and the transmission and reception time to automatically calculate the water depth, featuring accurate measurement, low power consumption, high reliability and easy operation. The device adopts large-scale integrated circuits, component patch rate of up to 99%, and clearly displays the measurement results through the LCD screen. It also has signal output function, supports SD card storage, and can automatically store CSV format files by date, which is convenient for data query and management.
FT-CS150 is suitable for a variety of application scenarios, including waterway survey, underwater topographic survey, underwater positioning, hydrographic survey and vessel navigation and positioning, as well as hydrological survey, hydropower plant and reservoir monitoring. In terms of technical parameters, it has a range of 0-150 meters and a minimum display resolution of 1mm, with an accuracy of ±1% x range. The device supports 200-2000KHz working frequency, can complete on-site calibration through the sensor key, and has RS232/RS485 interface and the function of SD card to read the measurement data directly.
Physical properties, the use of ABS engineering plastics and copper or stainless steel material, the weight of the host 800g, the sensor weight between 400 ~ 800g, equipped with 5 ~ 10mm wire diameter of 10 meters cable. For environmental performance, the device can work normally under the storage temperature from -40℃ to 70℃, and keep the performance stable under the environment without condensation below 80%RH, and the detection frequency reaches 15Hz/s.
